NSN 1560-01-156-9239 10162929 , 74A7311891001, 74A731189-1001
Product Details | WING PYLON ATTACHMENT SUPPORT
1560-01-156-9239
Part Alternates: 10162929 , 74A7311891001, 74A731189-1001, 74A7311891003, 74A731189-1003, 1560-01-156-9239, 01-156-9239, 1560011569239, 011569239
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 27 JUN 1983 | 01-156-9239 | 77777 ( ) |

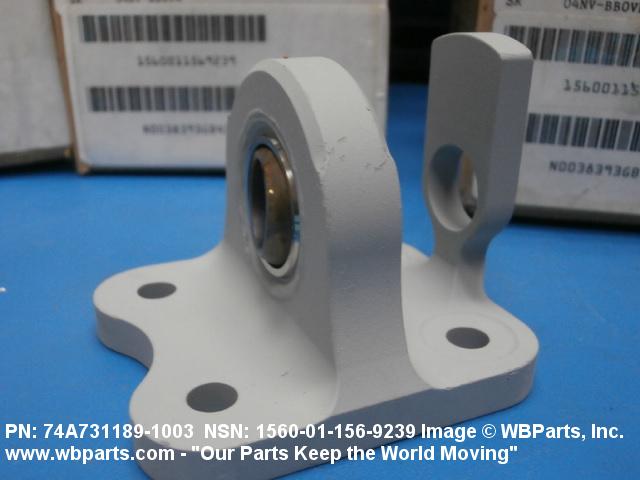

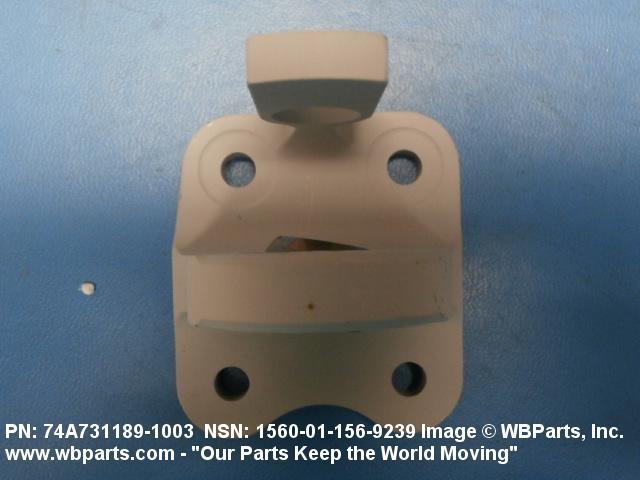

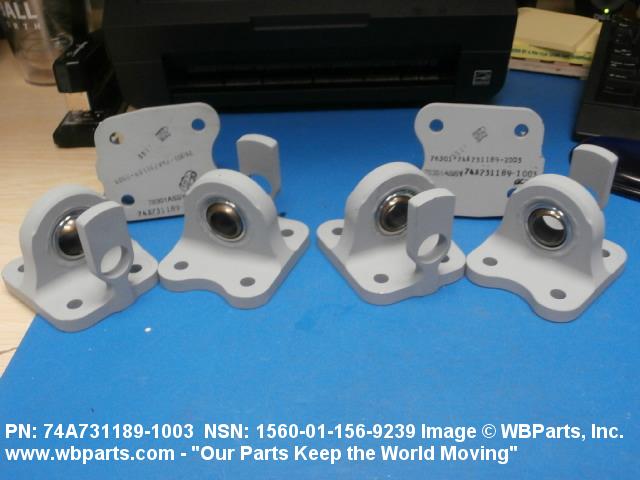

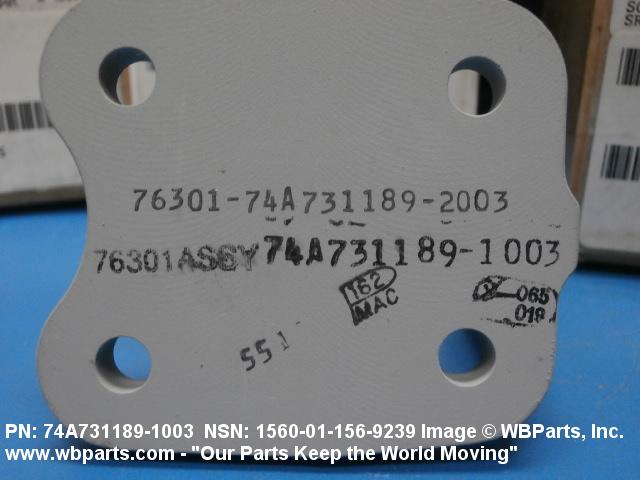

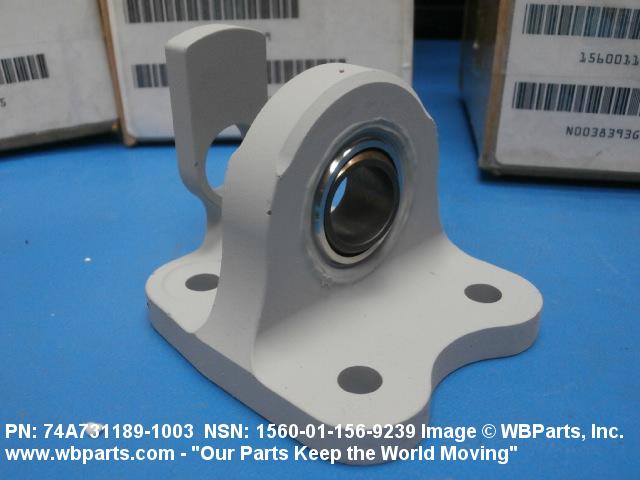

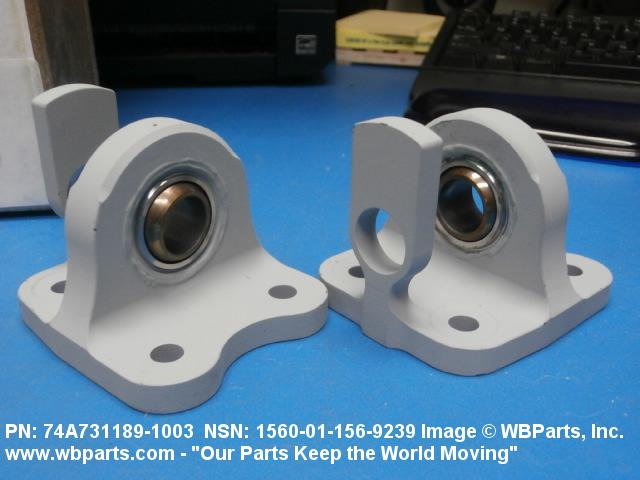

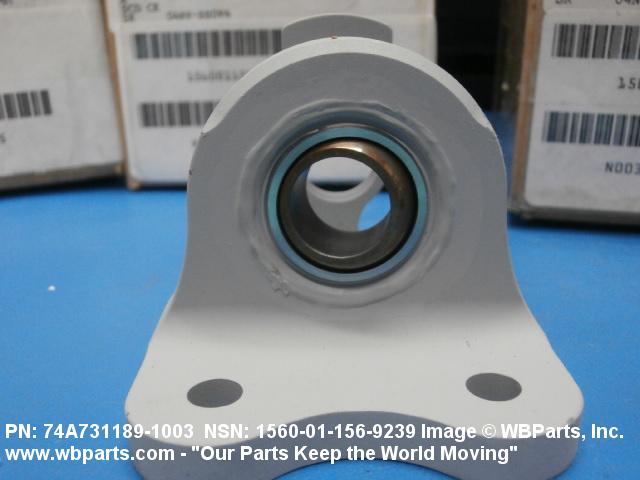

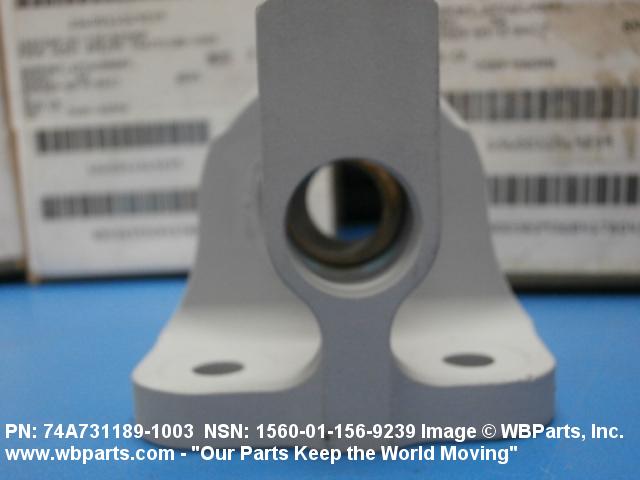

Drawings & Photos | NSN 1560-01-156-9239
Demand History | NSN 1560-01-156-9239
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1560-01-156-9239 | 2016-10-286 | 21 | DIBBS |
| 1560-01-156-9239 | 2016-04-109 | 16 | DIBBS |
| 1560-01-156-9239 | 2016-03-91 | 6 | United States |
| 1560-01-156-9239 | 2016-02-40 | 13 | DIBBS |
| 1560-01-156-9239 | 2015-10-281 | 14 | DIBBS |
| 1560-01-156-9239 | 2015-10-279 | 13 | DIBBS |
| 1560-01-156-9239 | 2015-06-165 | 6 | DIBBS |
| 1560-01-156-9239 | 2014-07-188 | 8 | DIBBS |
| 1560-01-156-9239 | 2013-05-143 | 15 | DIBBS |
| 1560-01-156-9239 | 2013-05-137 | 6 | DIBBS |
| 1560-01-156-9239 | 2013-05-133 | 9 | DIBBS |
| 1560-01-156-9239 | 2013-05-126 | 4 | DIBBS |
| 1560-01-156-9239 | 2013-05-126 | 8 | DIBBS |
| 1560-01-156-9239 | 2012-12-342 | 22 | DIBBS |
| 1560-01-156-9239 | 2012-10-290 | 1 | DIBBS |
| 1560-01-156-9239 | 2012-10-290 | 1 | DIBBS |
| 1560-01-156-9239 | 2012-10-289 | 1 | DIBBS |
| 1560-01-156-9239 | 2012-10-289 | 1 | DIBBS |
| 1560-01-156-9239 | 2012-10-275 | 5 | DIBBS |
| 1560-01-156-9239 | 2011-01-07 | 55 | DIBBS |
| 1560-01-156-9239 | 2008-09-248 | 31 | DIBBS |
| 1560-01-156-9239 | 2008-03-73 | 8 | DIBBS |
Cross Reference | NSN 1560-01-156-9239
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 74A731189-1001 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 74A731189-1003 | 0PXV4 | BOEING COMPANY, THE DBA BOEING |
| 74A731189-1003 | 12829 | PIONEER MACHINE PRODUCTS INC. |
| 74A731189-1003 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 74A731189-1003 | 88314 | MCDONNELL DOUGLAS CORP MCDONNELL DOUGLAS-TULSA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1560-01-156-9239
Related Products | NSN 1560-01-156-9239
Technical Data | NSN 1560-01-156-9239
| Characteristic | Specifications |
|---|---|
| GENERAL CHARACTERISTICS ITEM DESCRIPTION | TITANIUM PER MIL-T-9046; COND ANNEALED; 2.350 IN. O/A H; 2.600 IN. NOM W; 3.020 IN. NOM LG |
| III END ITEM IDENTIFICATION | ACFT MODEL F-18 |
| MANUFACTURERS CODE | 76301 |
| DESIGN CONTROL REFERENCE | 74A731189-1003 |
Restrictions/Controls & Freight Information | NSN 1560-01-156-9239
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 011790 | AIRCRAFT PARTS NOI |
| Less than car load rating | D | 200 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1560-01-156-9239
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | GF | (Non-HSP) FIGHTER SUPPORTAIRCRAFT(F/A-18) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
