NSN 1560-01-146-8195 011468195
Product Details | ACCESS COVER
1560-01-146-8195 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.20310050018Guns, through 30mm2590000053400020Hardware, Commercial
Part Alternates: 011468195
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 01-146-8195 | 29785 ( COVER, ACCESS ) |
Drawings & Photos | NSN 1560-01-146-8195
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1560-01-146-8195
Technical Data | NSN 1560-01-146-8195
| Characteristic | Specifications |
|---|---|

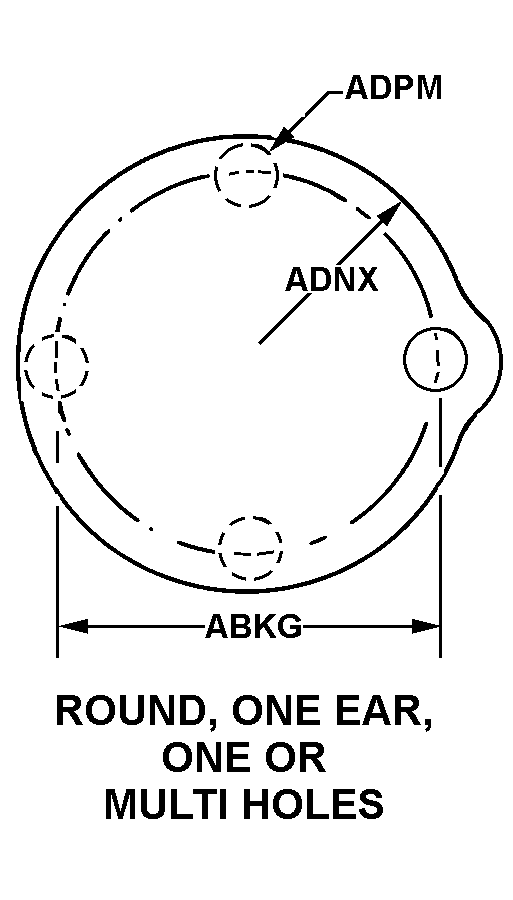

| PERIPHERAL SHAPE STYLE | 104 ROUND, ONE EAR, ONE OR MULTI HOLES |
| BOLT CIRCLE DIAMETER | 4.250 INCHES NOMINAL |
| BODY RADIUS | 2.560 INCHES MINIMUM AND 2.625 INCHES MAXIMUM |
| BOLT CIRCLE HOLE QUANTITY | 6 |
| CROSS-SECTIONAL SHAPE STYLE | 30 ARCHED |
| INSIDE CORNER RADIUS | 33.000 INCHES NOMINAL |
| BODY THICKNESS | 0.446 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-A-21160,COMP A356-T61 MIL SPEC SINGLE MATERIAL RESPONSE |
| SECURING DEVICE TYPE | SPECIAL |
| FSC APPLICATION DATA | AIRFRAME STRUCTURAL COMPONENTS |
Restrictions/Controls & Freight Information | NSN 1560-01-146-8195
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
