NSN 1560-01-146-7558 9-58920-502, 01-146-7558, 958920502

Product Details | AIRFOIL RIB

1560-01-146-7558 A principal chordwise rib that gives cross-sectional shape, strength and rigidity to a portion of a wing, stabilizer, and the like. See also RIB (1), STIFFENER, AIRCRAFT

Part Alternates: 9-58920-502, 1560-01-146-7558, 01-146-7558, 1560011467558, 958920502, 011467558

Aircraft and Airframe Structural Components | Airframe Structural Components

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
15	04 FEB 1983	01-146-7558	41026 ( RIB, AIRFOIL )

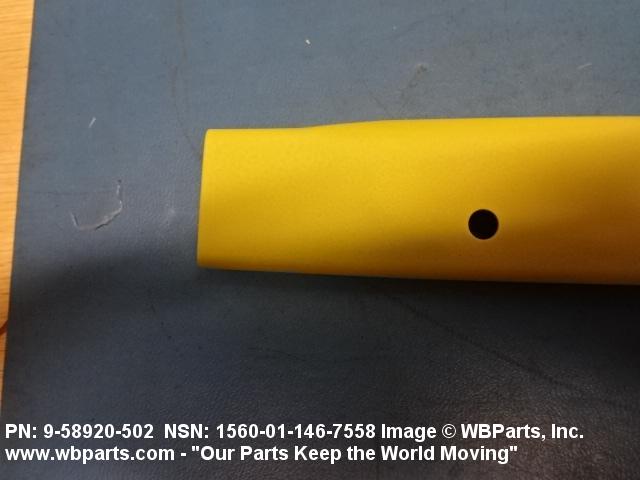

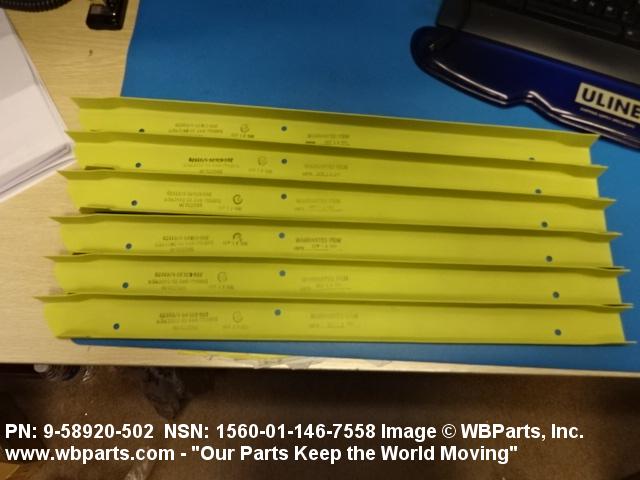

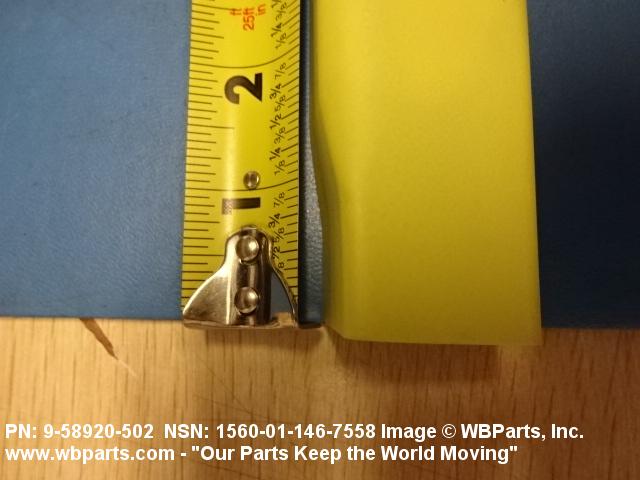

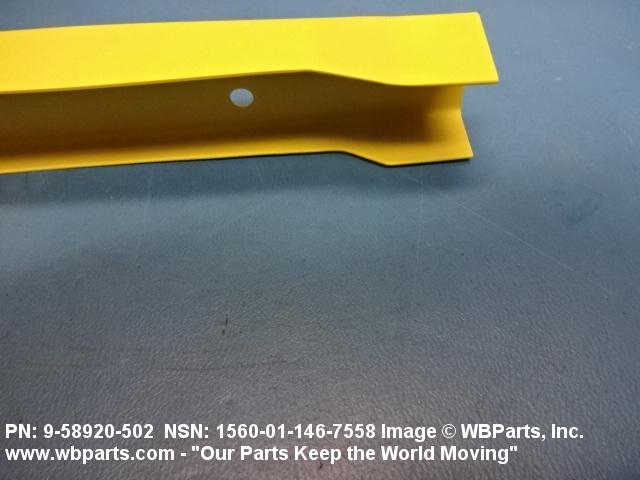

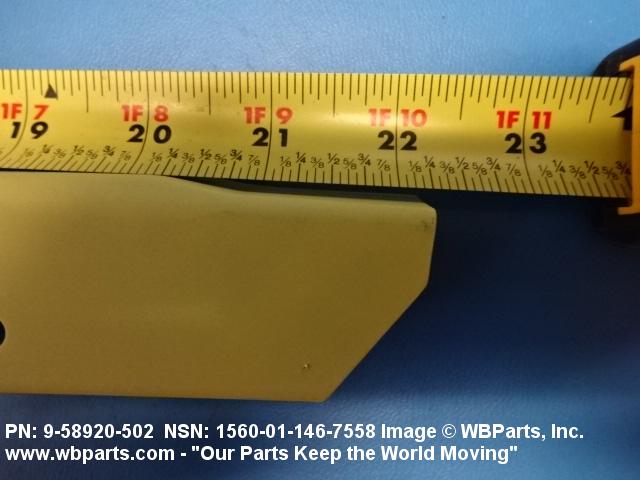

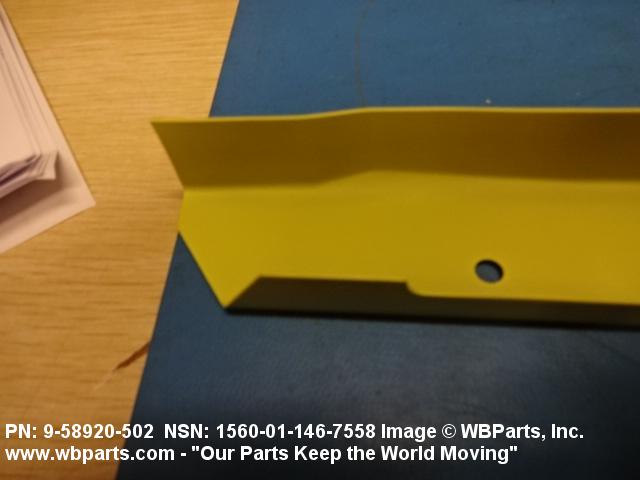

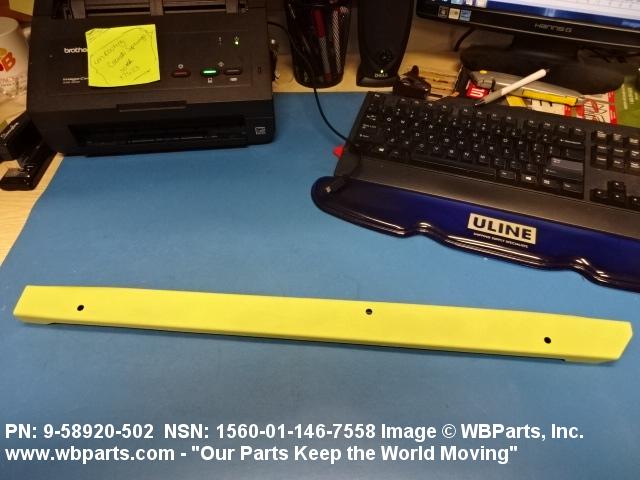

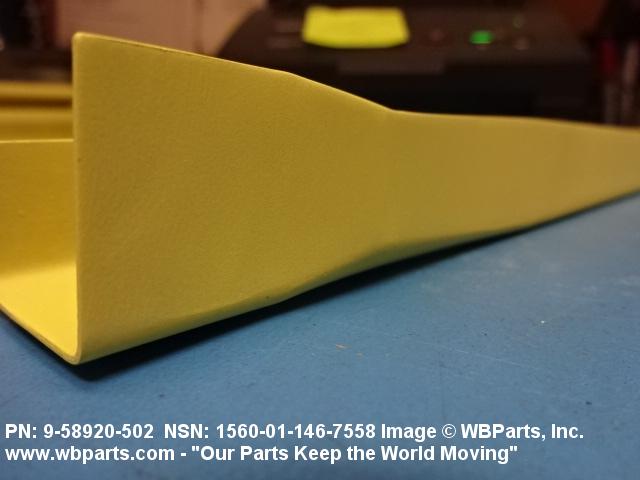

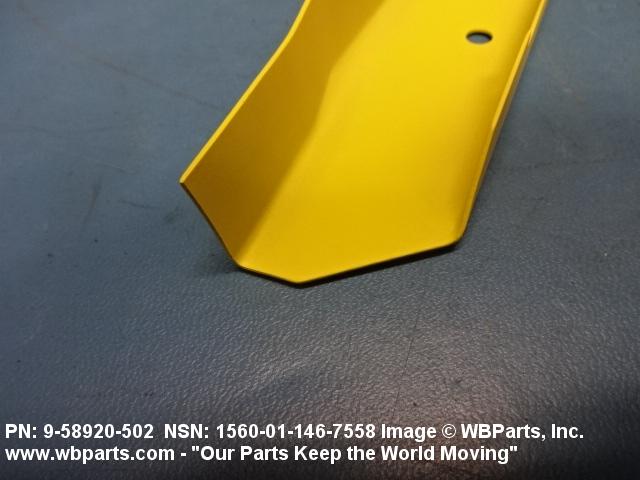

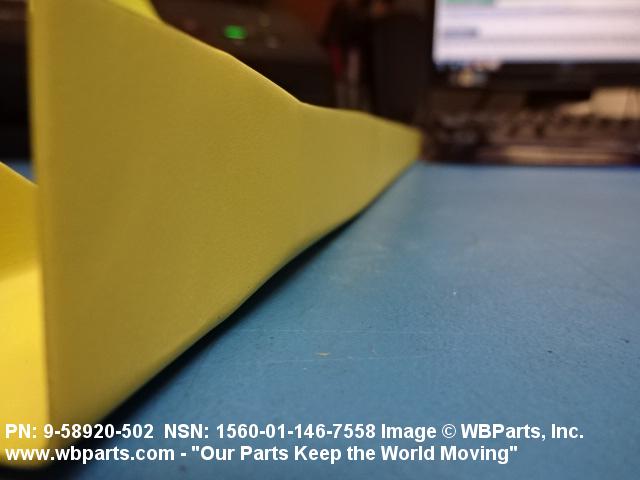

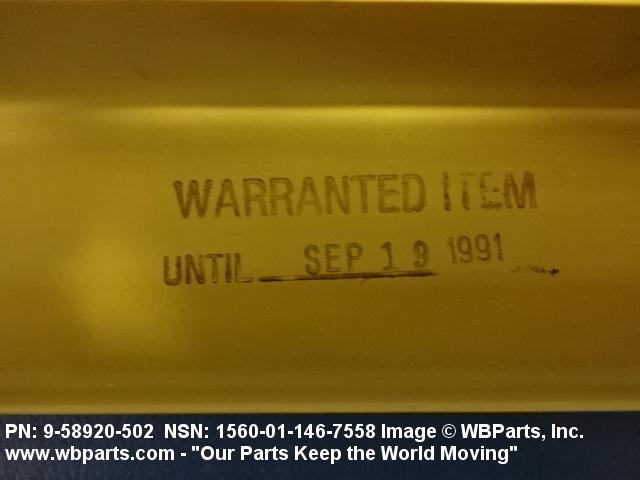

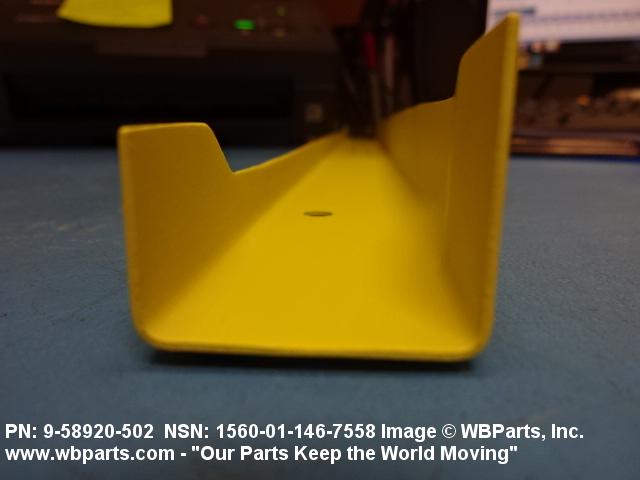

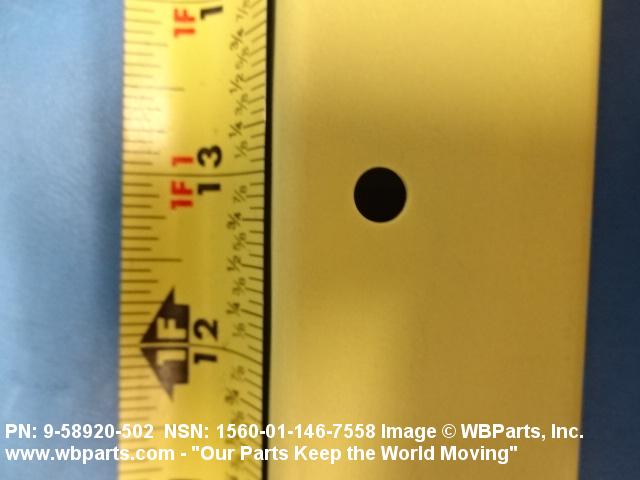

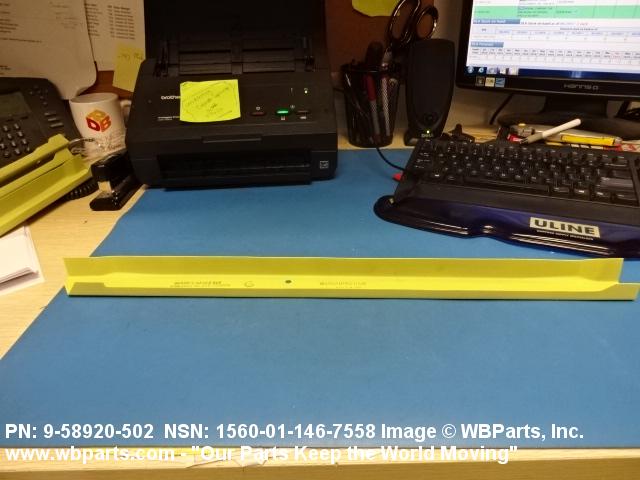

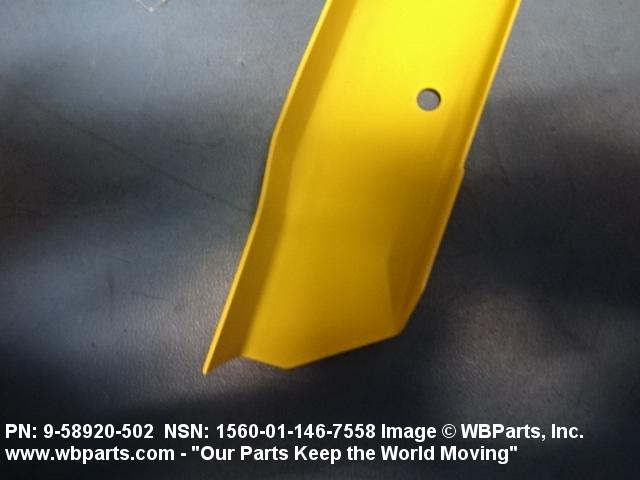

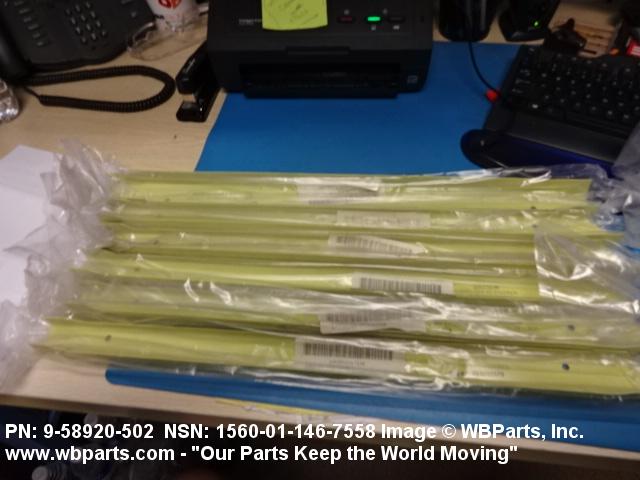

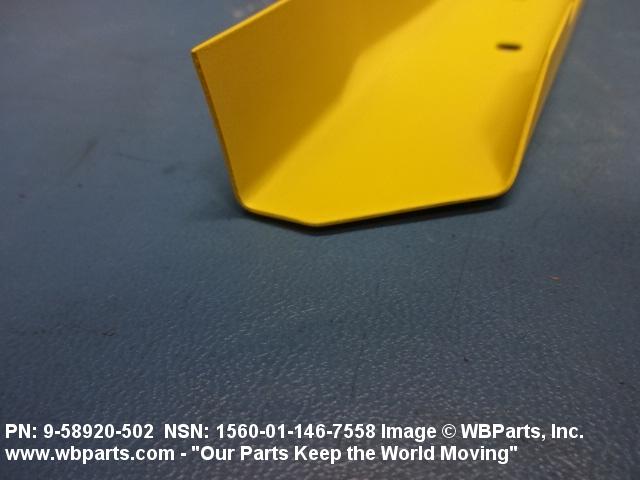

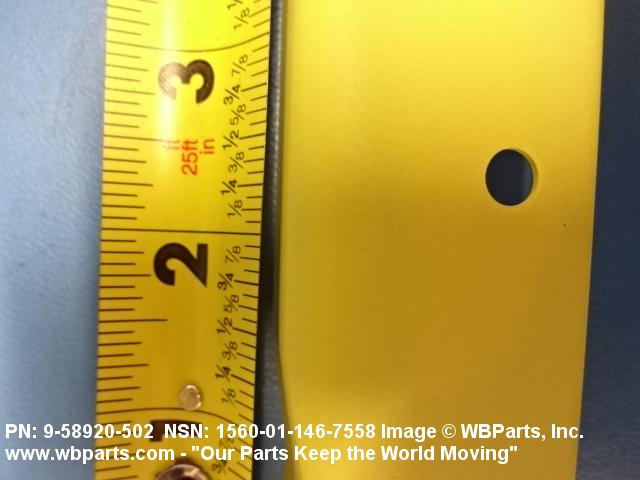

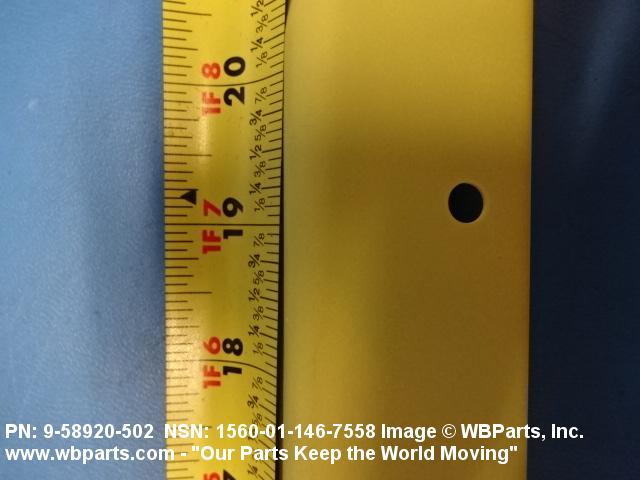

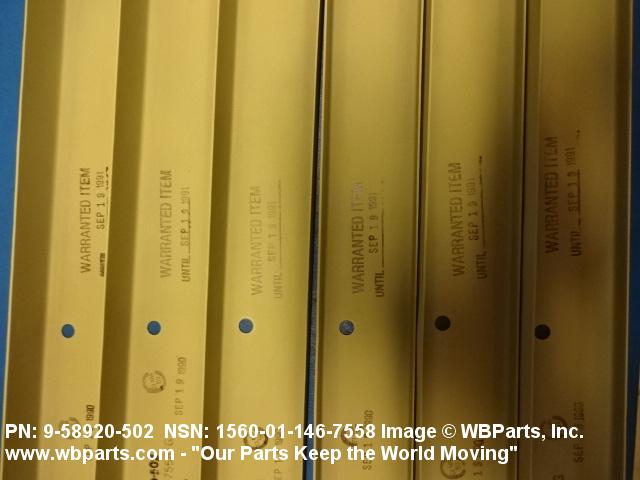

Drawings & Photos | NSN 1560-01-146-7558

Part Number	Request Date	QTY	Origin
1560-01-146-7558	2023-06-178	1	US
1560-01-146-7558	2023-06-174	5	United States
1560-01-146-7558	2023-01-05	29	DIBBS
1560-01-146-7558	2021-06-159	14	DIBBS
1560-01-146-7558	2021-04-110	3	DIBBS
1560-01-146-7558	2021-02-48	9	DIBBS
1560-01-146-7558	2020-12-350	3	DIBBS
1560-01-146-7558	2020-10-281	9	DIBBS
1560-01-146-7558	2018-04-103	8	United States
1560-01-146-7558	2018-01-24	6	United States
1560-01-146-7558	2018-01-09	8	DIBBS
1560-01-146-7558	2017-11-324	6	DIBBS
1560-01-146-7558	2017-09-255	3	DIBBS
1560-01-146-7558	2017-08-222	5	DIBBS
1560-01-146-7558	2017-07-204	2	DIBBS
1560-01-146-7558	2017-07-191	5	DIBBS
1560-01-146-7558	2015-11-328	4	DIBBS
1560-01-146-7558	2015-09-265	5	DIBBS
1560-01-146-7558	2015-07-195	5	DIBBS
1560-01-146-7558	2015-01-29	11	DIBBS

Cross Reference | NSN 1560-01-146-7558

Part Number	Cage Code	Manufacturer
9-58920-502	3U186	MANUFACTURING DEVELOPMENT, INC. DBA M D I
9-58920-502	82918	THE BOEING COMPANY DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 1560-01-146-7558

Compare

Related Products | NSN 1560-01-146-7558

1560-01-146-7559, 1560-01-146-7831, 1560-01-146-7832, 1560-01-146-7833, 1560-01-146-7834

Technical Data | NSN 1560-01-146-7558

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY 7075
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-287 FED SPEC SINGLE MATERIAL RESPONSE
AIRCRAFT MISSION DESIGN SERIES	B-52
OVERALL LENGTH	22.900 INCHES NOMINAL
OVERALL WIDTH	3.500 INCHES NOMINAL
MATERIAL THICKNESS	0.040 INCHES NOMINAL
MANUFACTURERS CODE	82918
DESIGN CONTROL REFERENCE	9-58920-502

Restrictions/Controls & Freight Information | NSN 1560-01-146-7558

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	D	Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.)
Controlled Inventory Item Code:	7	NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7).
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	011790	AIRCRAFT PARTS NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	671	unknown
Originating Activity Code	SX	Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 1560-01-146-7558

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	7	NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7).
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
