NSN 1560-01-136-4220 65215-07003-071, 01-136-4220, 6521507003071
Product Details | FAIRING PANEL ASSEMBLY
1560-01-136-4220
Part Alternates: 65215-07003-071, 1560-01-136-4220, 01-136-4220, 1560011364220, 6521507003071, 011364220
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 08 AUG 1982 | 01-136-4220 | 77777 ( ) |

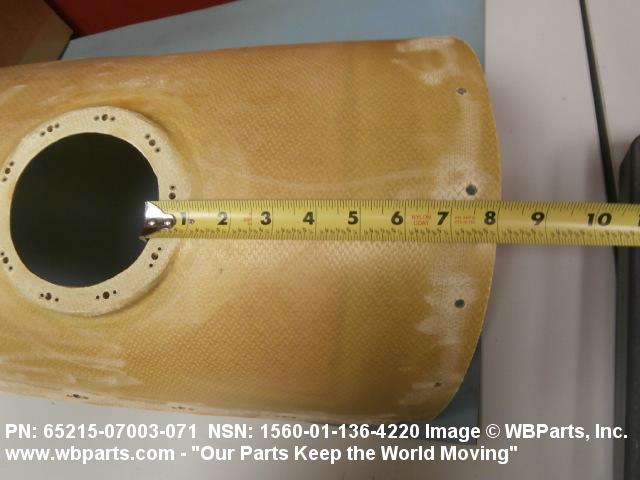

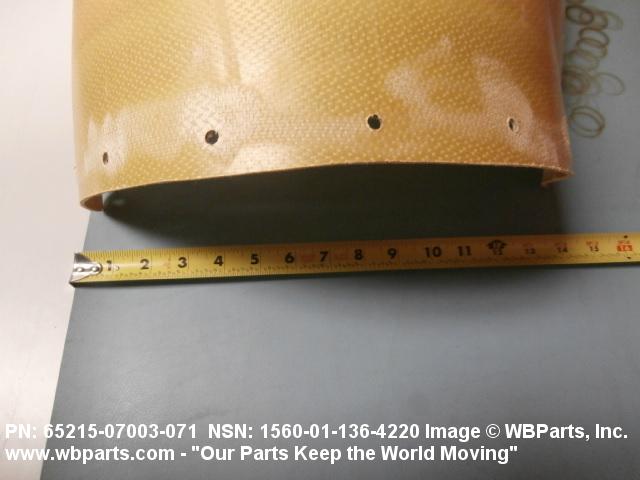

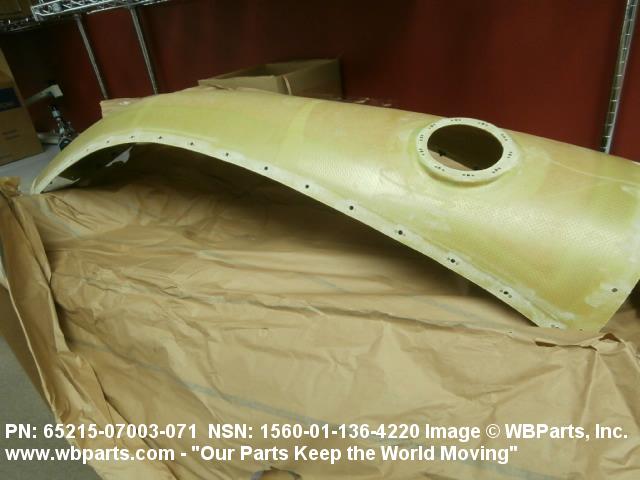

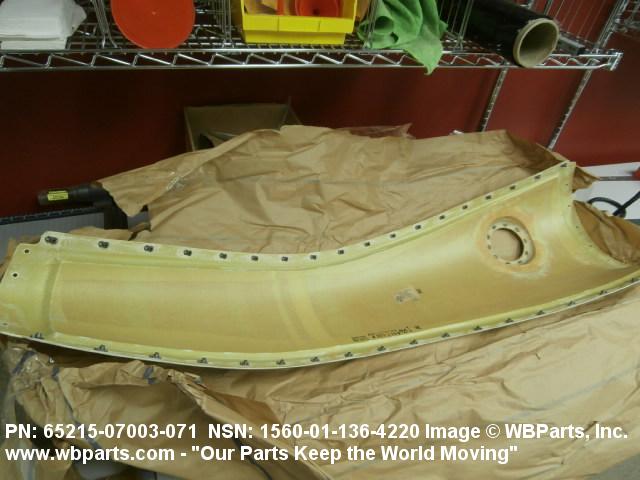

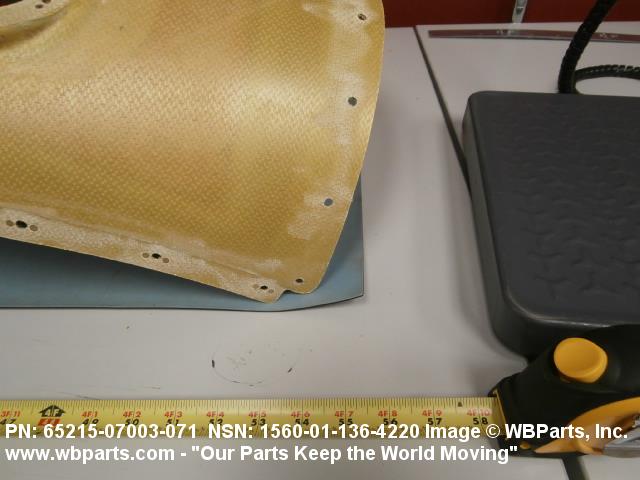

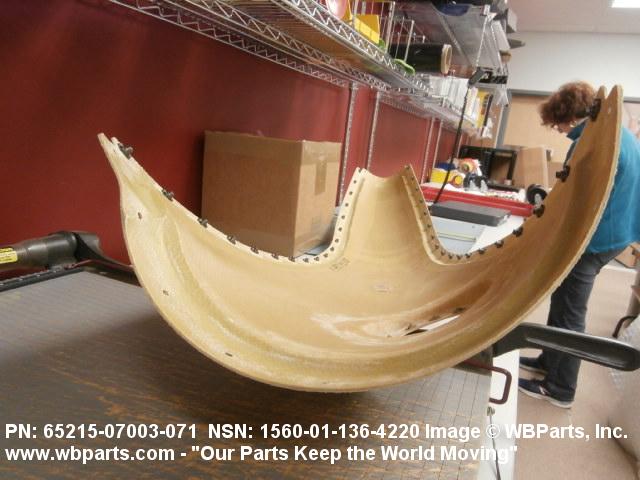

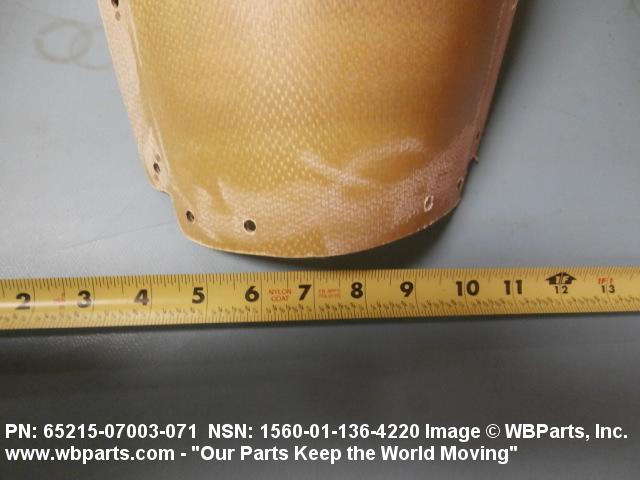

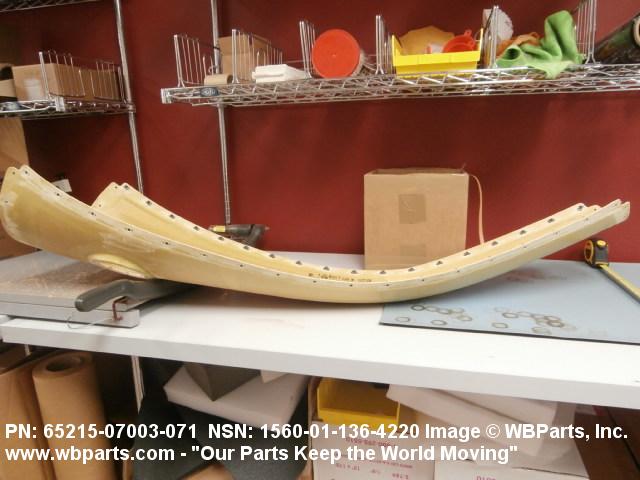

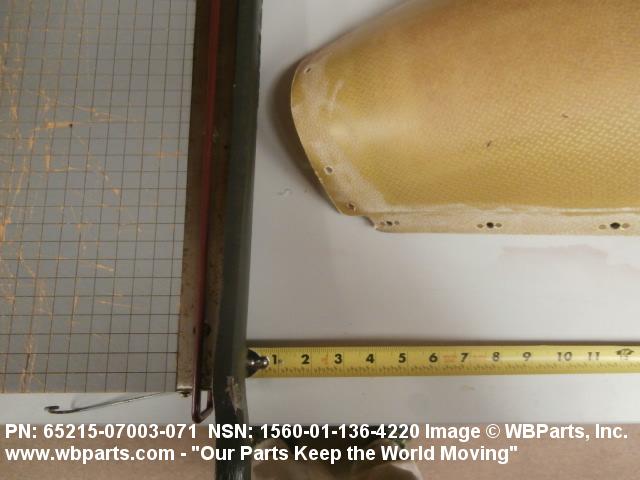

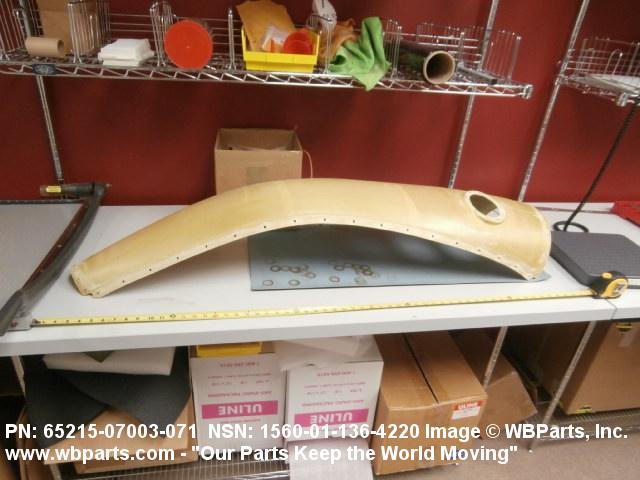

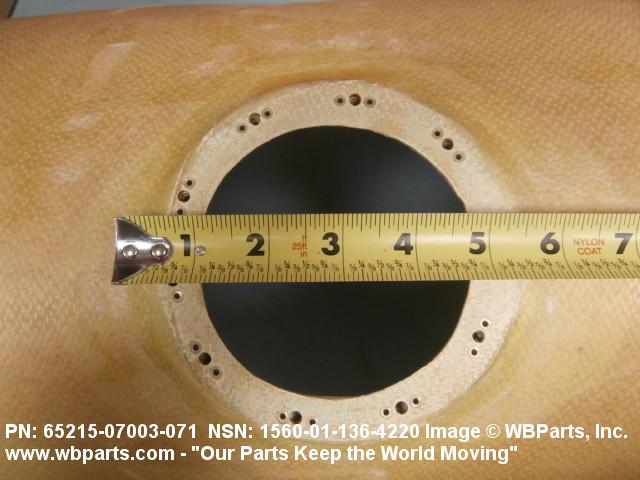

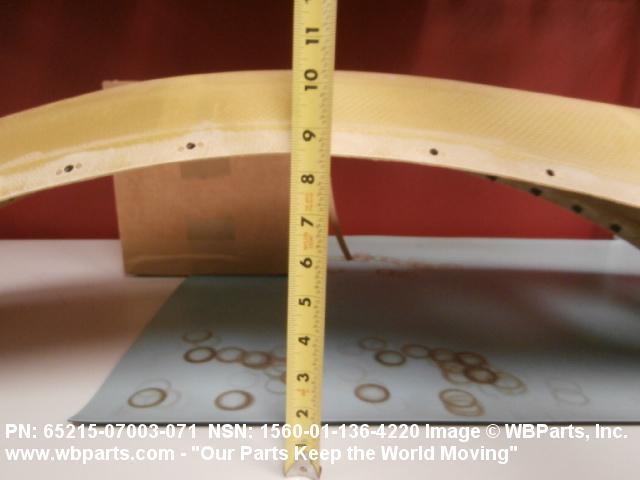

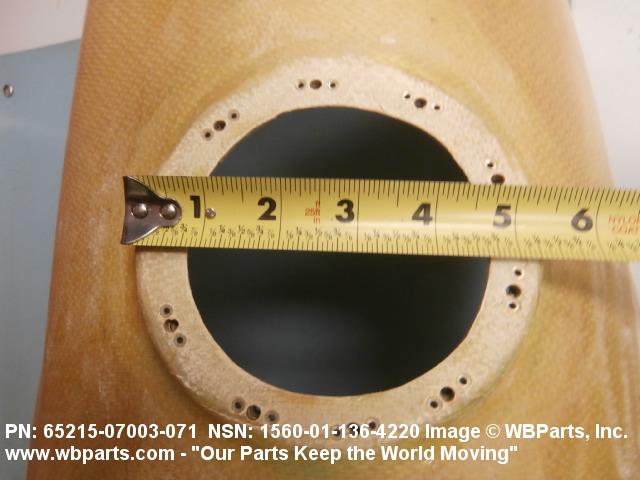

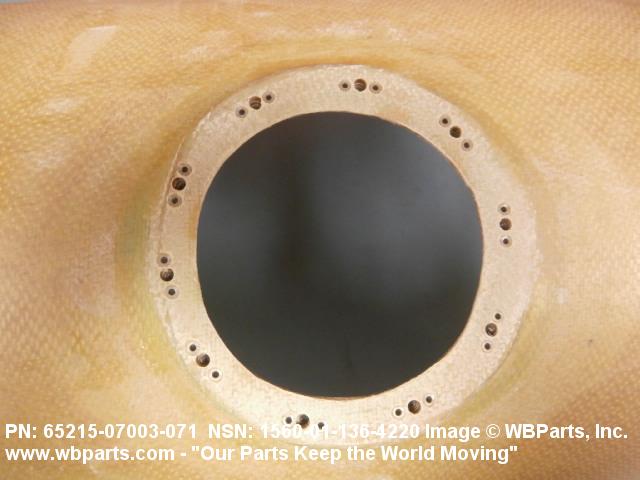

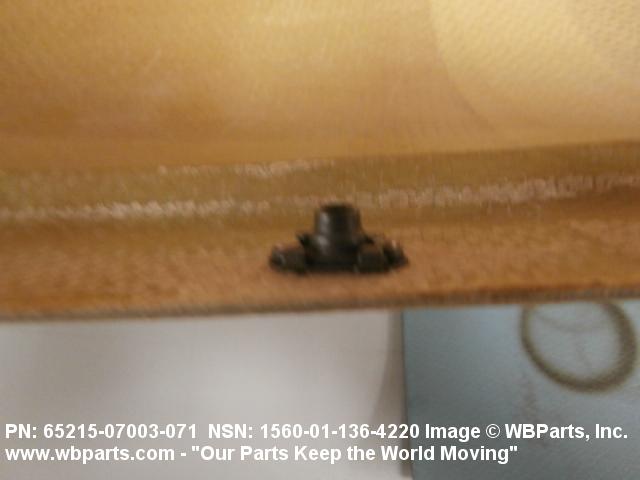

Drawings & Photos | NSN 1560-01-136-4220
Demand History | NSN 1560-01-136-4220
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1560-01-136-4220 | 2018-01-03 | 4 | DIBBS |
| 1560-01-136-4220 | 2017-06-156 | 1 | DIBBS |
| 1560-01-136-4220 | 2016-06-168 | 2 | DIBBS |
| 1560-01-136-4220 | 2015-02-33 | 1 | United States |
| 1560-01-136-4220 | 2014-12-360 | 1 | DIBBS |
| 1560-01-136-4220 | 2014-12-349 | 1 | DIBBS |
| 1560-01-136-4220 | 2014-10-289 | 3 | DIBBS |
| 1560-01-136-4220 | 2014-07-190 | 4 | DIBBS |
Cross Reference | NSN 1560-01-136-4220
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 65215-07003-071 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1560-01-136-4220
Related Products | NSN 1560-01-136-4220
Technical Data | NSN 1560-01-136-4220
| Characteristic | Specifications |
|---|---|
| III END ITEM IDENTIFICATION | AIRCRAFT MODEL CH-53E |
| MANUFACTURERS CODE | 78286 |
| DESIGN CONTROL REFERENCE | 65215-07003-071 |
Restrictions/Controls & Freight Information | NSN 1560-01-136-4220
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 011790 | AIRCRAFT PARTS NOI |
| Less than car load rating | D | 200 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1560-01-136-4220
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | LU | HELICOPTERS(CH-53E) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
