NSN 1560-01-126-4301 65-5636-105, 01-126-4301, 655636105
Product Details | SPECIAL PURPOSE THERMAL INSULATION
1560-01-126-4301 An item composed of natural or synthetic material in various shapes and sizes. It is specifically designed to provide insulation for the outer skin and/or internal components of missiles, bombs, and the like, against the affect of aerodynamic heating and/or operating heat. See also INSULATION, THERMAL, AIRCRAFT.20410150024Guns, 75mm through 125mm11050013Nuclear Bombs14200025Guided Missile Components53300028Packing and Gasket Materials
Part Alternates: 65-5636-105, 1560-01-126-4301, 01-126-4301, 1560011264301, 655636105, 011264301
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 11 FEB 1982 | 01-126-4301 | 61720 ( INSULATION, THERMAL, SPECIAL PURPOSE ) |

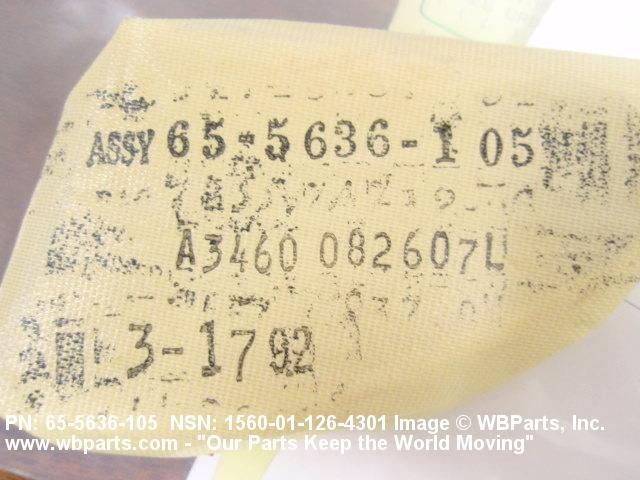

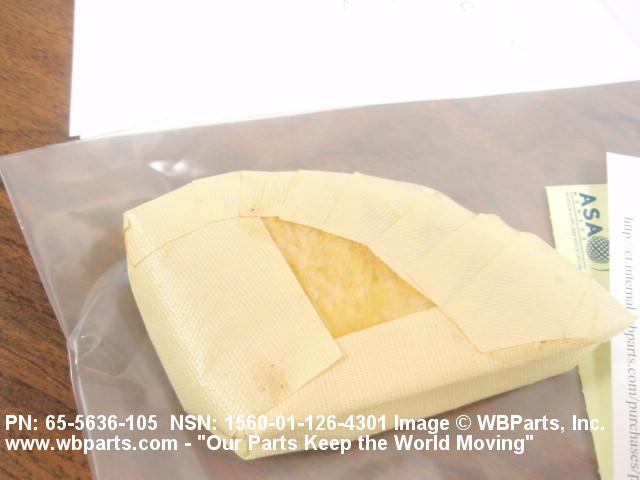

Drawings & Photos | NSN 1560-01-126-4301
Demand History | NSN 1560-01-126-4301
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1560-01-126-4301 | 2012-04-93 | 1 | DIBBS |
| 1560-01-126-4301 | 2011-12-355 | 1 | DIBBS |
| 655636105 | 2010-11-334 | 2 | United States |
| 1560-01-126-4301 | 2010-11-307 | 1 | DIBBS |
| 1560-01-126-4301 | 2010-08-232 | 1 | DIBBS |
| 1560-01-126-4301 | 2010-06-154 | 1 | DIBBS |
| 1560-01-126-4301 | 2010-05-136 | 1 | DIBBS |
| 655636105 | 2008-10-298 | 12 | United States |
| 1560-01-126-4301 | 2008-04-116 | 12 | DIBBS |
Cross Reference | NSN 1560-01-126-4301
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 65-5636-105 | 81205 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1560-01-126-4301
Related Products | NSN 1560-01-126-4301
Technical Data | NSN 1560-01-126-4301
| Characteristic | Specifications |
|---|---|
| LAYER MATERIAL | FIBERGLASS |
| SPECIAL FEATURES | C/O FIBERGLASS INSULATION,P/N 69-3345-4;COVER,P/N 69-3345-6;GROMMET,P/N 69-3345-14,RIGHT HAND;END ITEM IDENTIFICATION:AIRCRAFT,MODEL E3A |
| MANUFACTURERS CODE | 81205 |
| DESIGN CONTROL REFERENCE | 65-5636-105 |
Restrictions/Controls & Freight Information | NSN 1560-01-126-4301
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103300 | INSULATING MATERIAL NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1560-01-126-4301
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | AW | SX:AIRBORNE WARNING AND CONTROL SYSTEM (AWACS) 411L |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
