NSN 1560-01-083-0440 16K255124, 16K2551-24, 16K255128
Product Details | AIRCRAFT FAIRING
1560-01-083-0440 A secondary structure whose function is to reduce drag by providing a streamlined surface or covering.
Part Alternates: 16K255124, 16K2551-24, 16K255128, 16K2551-28, 16K255132, 16K2551-32, 1560-01-083-0440, 01-083-0440, 1560010830440, 010830440
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 14 SEP 1979 | 01-083-0440 | 41334 ( FAIRING, AIRCRAFT ) |

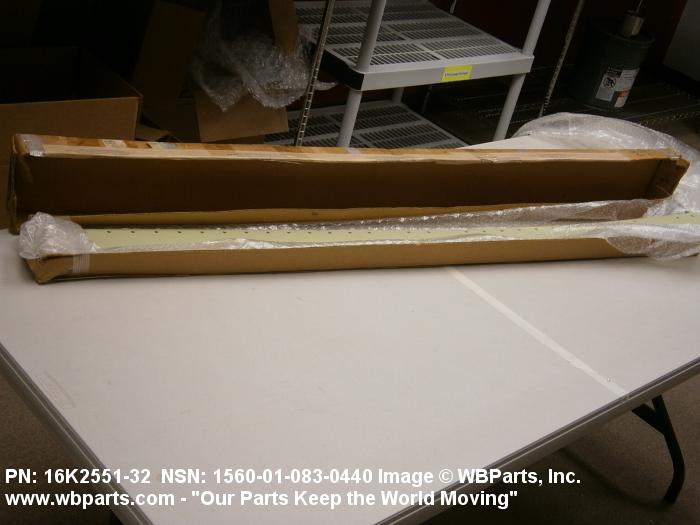

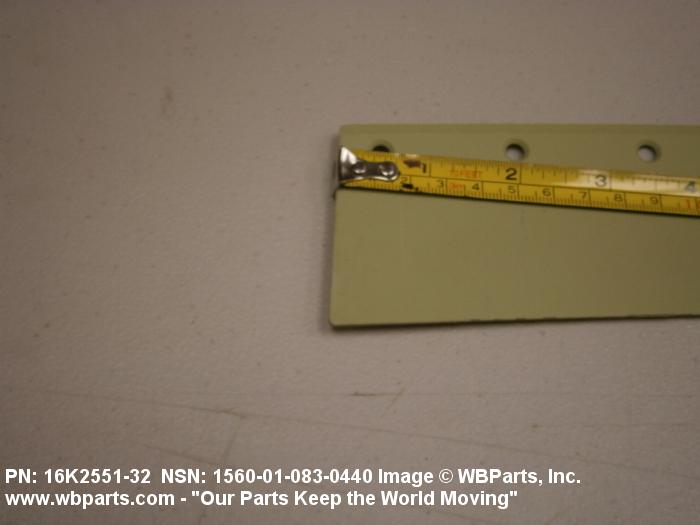

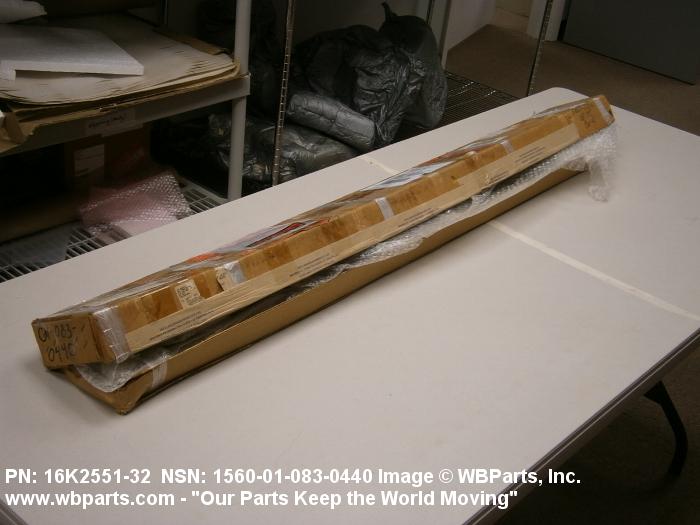

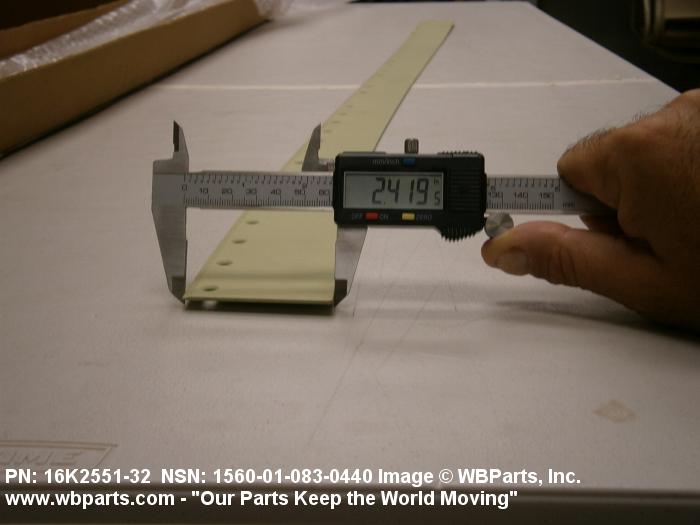

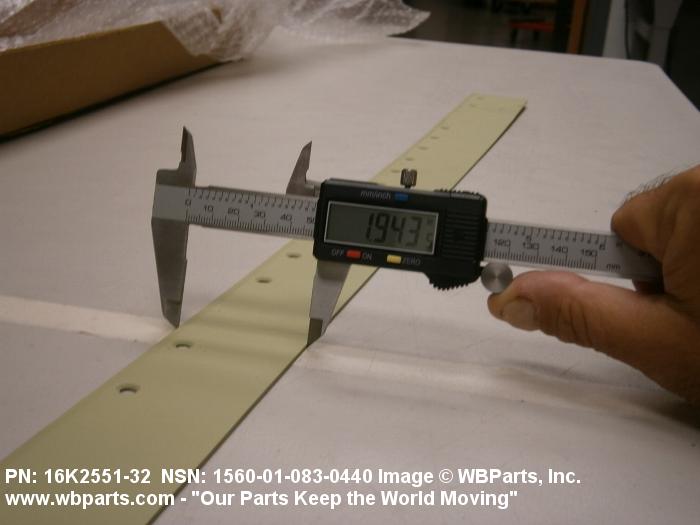

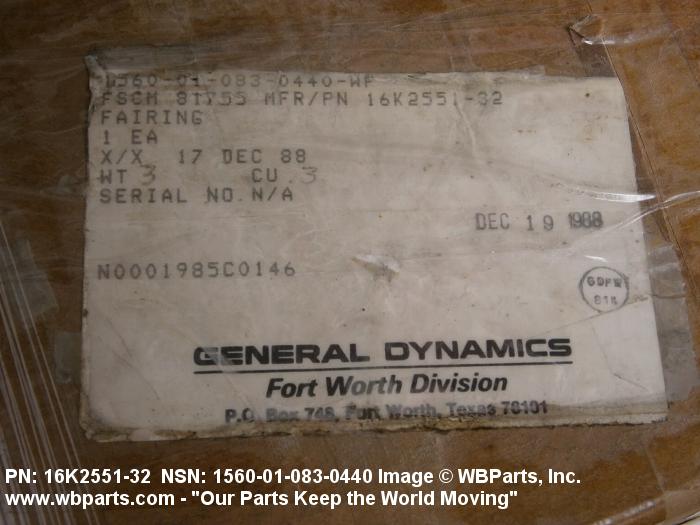

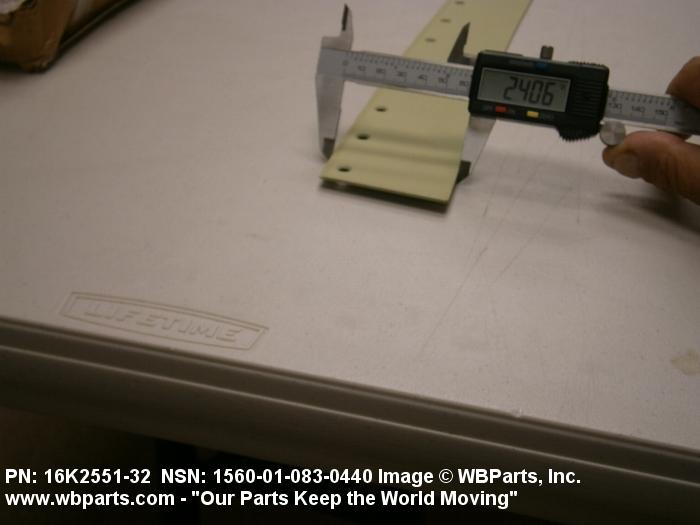

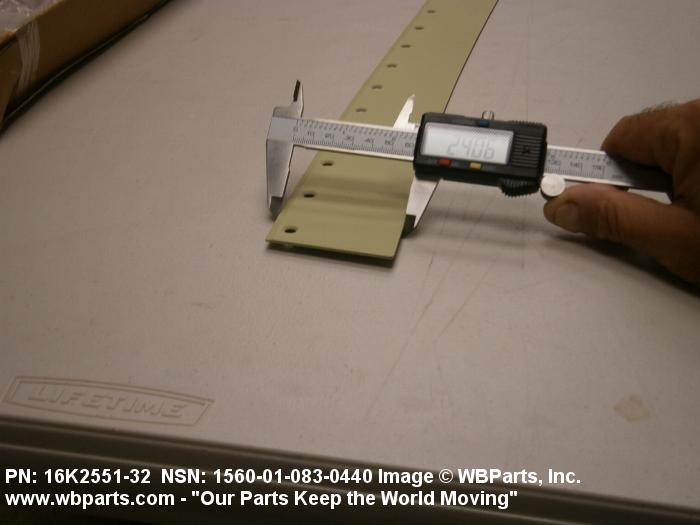

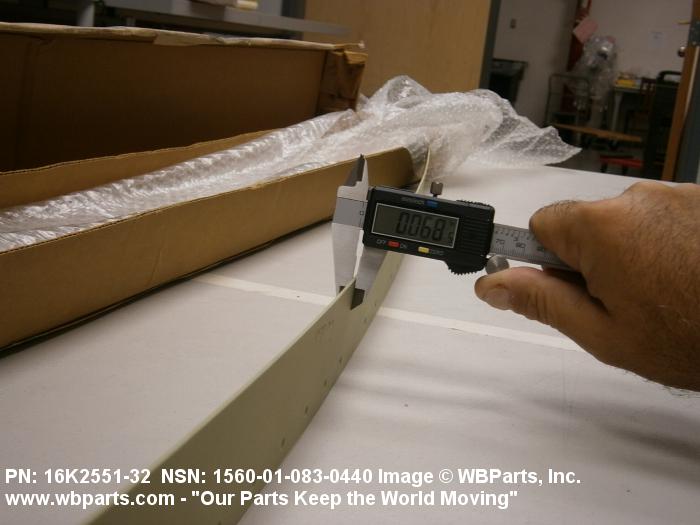

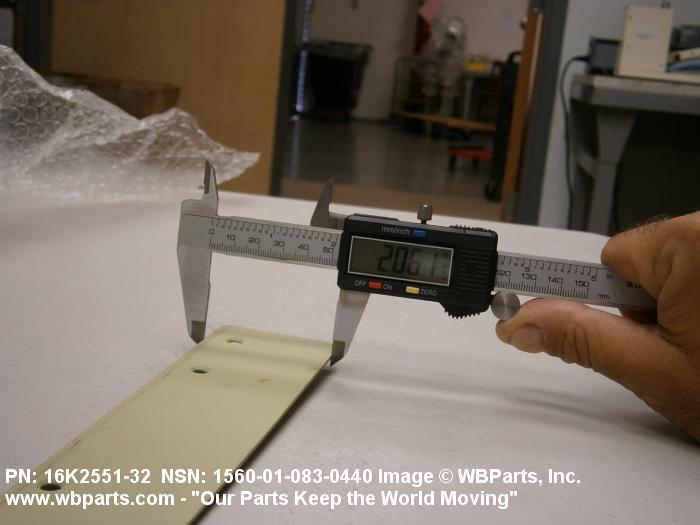

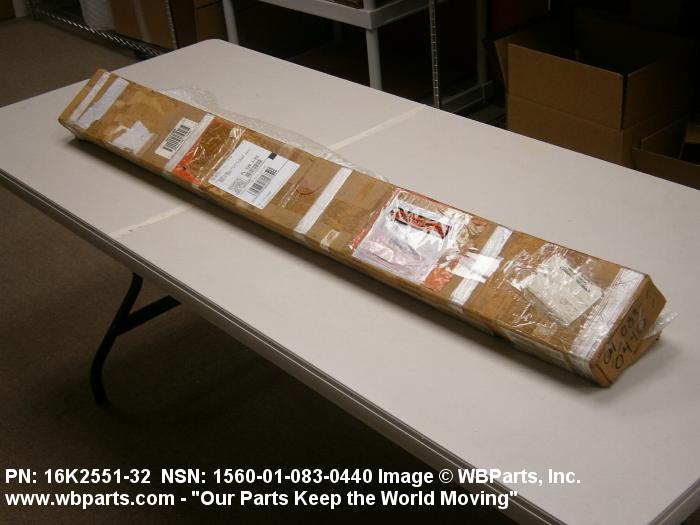

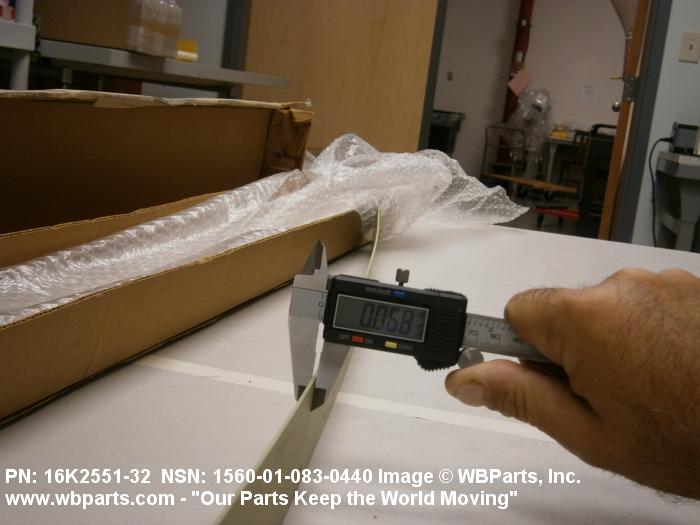

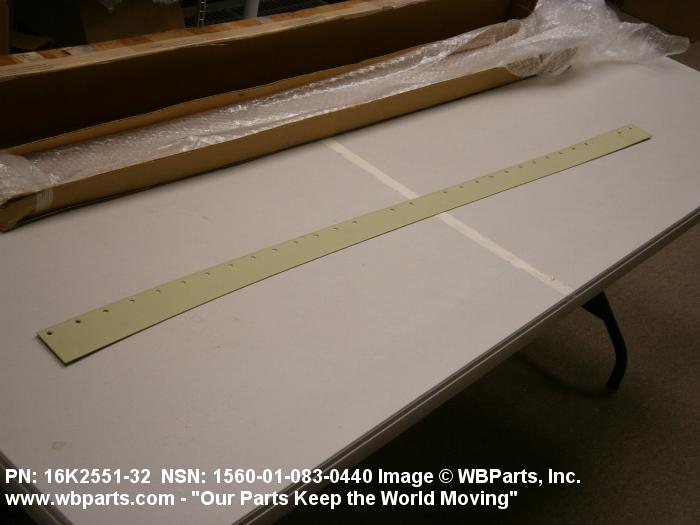

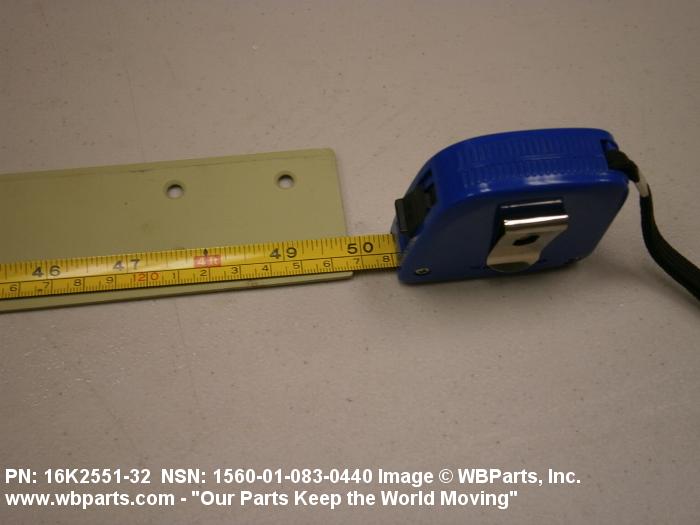

Drawings & Photos | NSN 1560-01-083-0440
Demand History | NSN 1560-01-083-0440
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 16K2551-32 | 2023-01-26 | 4 | DIBBS |
| 16K2551-32 | 2022-12-342 | 4 | DIBBS |
| 16K2551-32 | 2022-11-324 | 4 | DIBBS |
| 16K2551-32 | 2021-06-158 | 11 | DIBBS |
| 1560-01-083-0440 | 2016-03-69 | 10 | DIBBS |
| 1560-01-083-0440 | 2013-12-344 | 4 | DIBBS |
| 1560-01-083-0440 | 2013-11-322 | 2 | DIBBS |
| 1560-01-083-0440 | 2013-09-248 | 5 | DIBBS |
| 1560-01-083-0440 | 2013-06-179 | 1 | United States |
| 1560-01-083-0440 | 2013-05-126 | 1 | DIBBS |
| 1560-01-083-0440 | 2013-03-70 | 5 | DIBBS |
| 1560-01-083-0440 | 2013-02-52 | 6 | DIBBS |
| 1560-01-083-0440 | 2012-12-348 | 108 | DIBBS |
| 1560-01-083-0440 | 2011-08-227 | 2 | DIBBS |
Cross Reference | NSN 1560-01-083-0440
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 16K2551-24 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| 16K2551-28 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| 16K2551-32 | 1XKR3 | AEROSPACE & COMMERICAL TECHNOLOGIES INC |
| 16K2551-32 | 54200 | MOONEY AIRCRAFT CORP |
| 16K2551-32 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1560-01-083-0440
Related Products | NSN 1560-01-083-0440
Technical Data | NSN 1560-01-083-0440
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/4 FED SPEC SINGLE MATERIAL RESPONSE |
| SIDE FOR WHICH DESIGNED | RIGHT SIDE |
| AIRCRAFT MISSION DESIGN SERIES | F-16 |
| OVERALL LENGTH | 51.000 INCHES NOMINAL |
| OVERALL WIDTH | 4.000 INCHES NOMINAL |

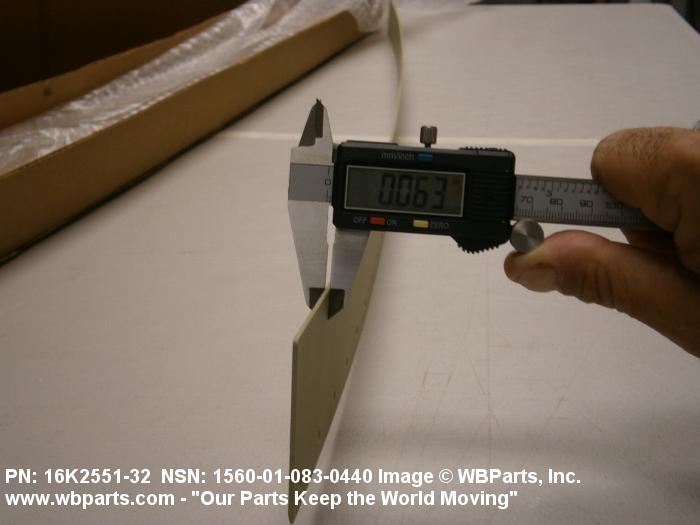

| MATERIAL THICKNESS | 0.063 INCHES NOMINAL |
| MANUFACTURERS CODE | 81755 |
| DESIGN CONTROL REFERENCE | 16K2551-32 |
Restrictions/Controls & Freight Information | NSN 1560-01-083-0440
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 011820 | AIRCRAFT SKINS METAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | SU | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1560-01-083-0440
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | WF | SU:F-16 AIR COMBAT FIGHTER |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
