Product Details | BELL CRANK
1560-01-040-3094 An item in the form of two arms at an angle, having its fulcrum at the apex of the angle, and used to provide a means of changing the direction or varying the intensity of a pushing or pulling force. See also ARM (as modified); and LEVER (as modified).20411900057Specialized Test and Handling Equipment, Nuclear Ordnance11950030Miscellaneous Nuclear Ordnance16800049Miscellaneous Aircraft Accessories and Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: 18548701, 18-54870-1, 1560-01-040-3094, 01-040-3094, 1560010403094, 010403094
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 06 MAY 1977 | 01-040-3094 | 22321 ( BELL CRANK ) |
Drawings & Photos | NSN 1560-01-040-3094
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1560-01-040-3094
Technical Data | NSN 1560-01-040-3094
| Characteristic | Specifications |
|---|---|

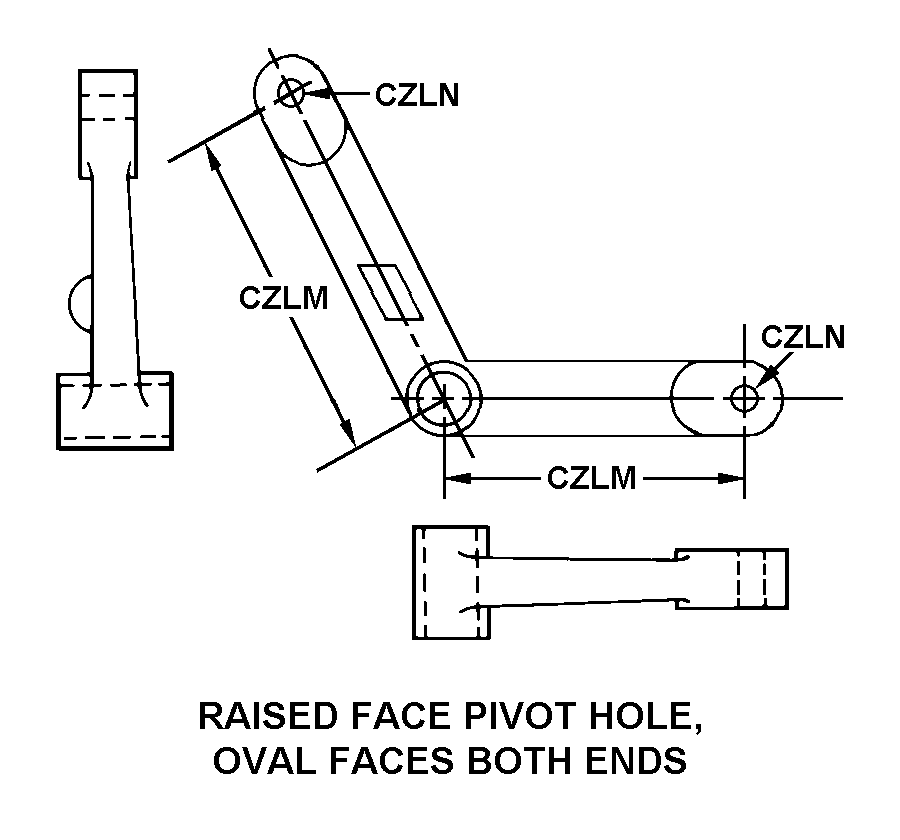

| STYLE DESIGNATOR | A15 RAISED FACE PIVOT HOLE, OVAL FACES BOTH ENDS |
| CENTER TO CENTER DISTANCE BETWEEN FULCRUM AND ARM END HOLE/SLOT/BALL | 1.562 INCHES NOMINAL 1ST END 1.575 INCHES NOMINAL 2ND END |
| FSC APPLICATION DATA | FUSELAGE SECTION |
| MANUFACTURERS CODE | 76823 |
| DESIGN CONTROL REFERENCE | 18-54870-1 |
