NSN 1560-00-910-9083 009109083
Product Details | ACCESS COVER
1560-00-910-9083 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.20310050018Guns, through 30mm2590000053400020Hardware, Commercial
Part Alternates: 009109083
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 00-910-9083 | 29785 ( COVER, ACCESS ) |
Drawings & Photos | NSN 1560-00-910-9083
Demand History | NSN 1560-00-910-9083
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1560-00-910-9083 | 2006-05-143 | 451 | DIBBS |
| 1560-00-910-9083 | 2006-02-55 | 86 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1560-00-910-9083
Technical Data | NSN 1560-00-910-9083
| Characteristic | Specifications |
|---|---|
| PERIPHERAL SHAPE STYLE | 80 ROUND, MULTI HOLES |
| BOLT CIRCLE DIAMETER | 6.125 INCHES NOMINAL |
| OUTSIDE DIAMETER | 7.100 INCHES NOMINAL |
| BOLT CIRCLE HOLE QUANTITY | 12 |

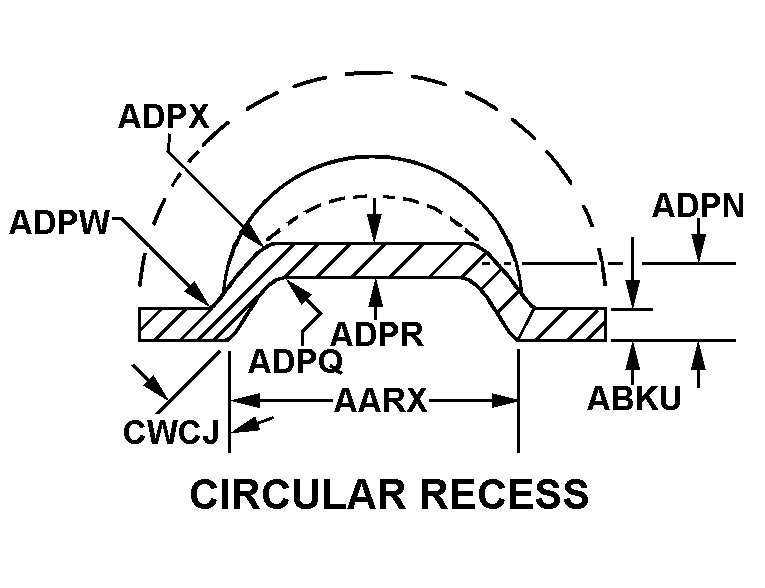

| CROSS-SECTIONAL SHAPE STYLE | 10 CIRCULAR RECESS |
| INSIDE DIAMETER | 5.430 INCHES NOMINAL |
| FLANGE THICKNESS | 0.071 INCHES NOMINAL |
| FIRST RECESS INSIDE HEIGHT | 0.110 INCHES NOMINAL |
| INSIDE CORNER RADIUS | 0.090 INCHES NOMINAL |
| BODY THICKNESS | 0.071 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY 2024 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/4 FED SPEC SINGLE MATERIAL RESPONSE |
| SECURING DEVICE TYPE | THREADED FASTENER |
| MOUNTING OPENING SHAPE STYLE | 2 THREADED HOLE |
| FEATURES PROVIDED | SEALING CAPABILITY |
| FSC APPLICATION DATA | STRUCTURAL ASSEMBLY,AIRFRAME |
| MANUFACTURERS CODE | 72429 |
| DESIGN CONTROL REFERENCE | 26-370-0846 |
Restrictions/Controls & Freight Information | NSN 1560-00-910-9083
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
