Product Details | AIRCRAFT ACCESS DOOR

1560-00-886-9664 A rigid item of various shapes permanently attached to a structure of an aircraft, designed to provide access for inspection, service, replacement of components and/or adjustments. It is designed to be attached by means of hinges or similar device. It may include self-closing features and have a quick release or other type latching to permit access with a minimum of effort. It may include an observation window. Excludes COVER, ACCESS; COVER ACCESS, AIRCRAFT; DOOR, ACCESS; DOOR, AIRCRAFT and all doors not specifically designed to provide access for the purposes listed above.

Part Alternates: 114S55513, 114S5551-3, 1560-00-886-9664, 00-886-9664, 1560008869664, 008869664

Aircraft and Airframe Structural Components | Airframe Structural Components

Supply Group (FSG) NSN Assign. NIIN
15 00-886-9664

Drawings & Photos | NSN 1560-00-886-9664


Cross Reference | NSN 1560-00-886-9664

Part Number Cage Code Manufacturer
114S5551-3 77272 THE BOEING COMPANY DBA BOEING
114S5551-3 81205 THE BOEING COMPANY DBA BOEING
414S5551-3 77272 THE BOEING COMPANY DBA BOEING

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 1560-00-886-9664

Technical Data | NSN 1560-00-886-9664

Characteristic Specifications

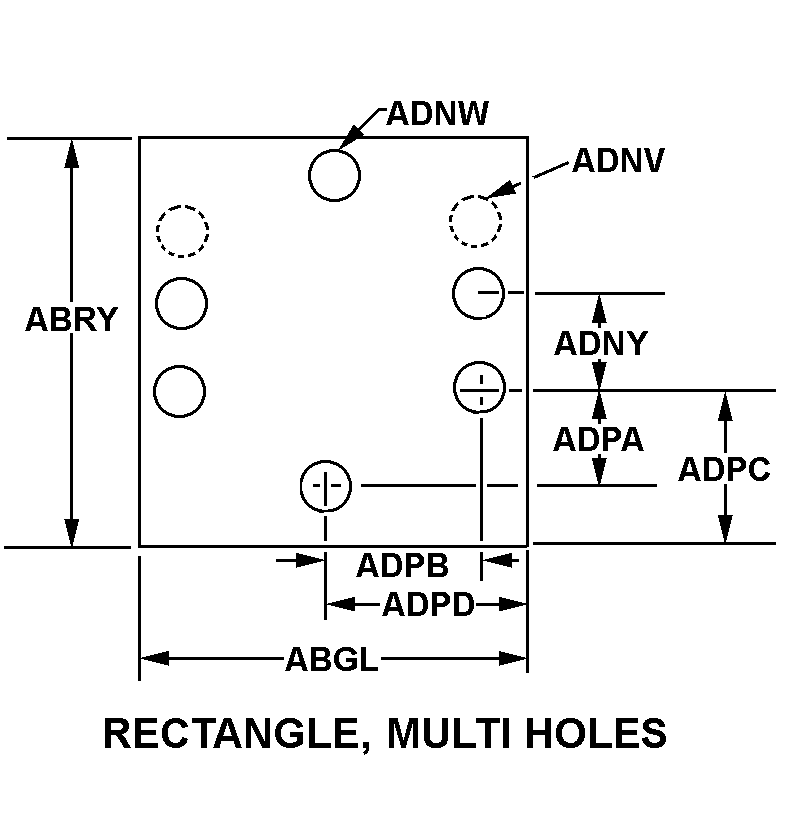

PERIPHERAL SHAPE STYLE 31 RECTANGLE, MULTI HOLES
MATERIAL ALUMINUM ALLOY
SECURING DEVICE TYPE TURNLOCK FASTENER
END ITEM IDENTIFICATION 1520-01-088-3669 HELICOPTER,CARGO-TRANSPORT

Restrictions/Controls & Freight Information | NSN 1560-00-886-9664

Category Code Description
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Category Code Description
No Freight Information
