NSN 1560-00-827-7629 MS244841, MS24484-1, 2670392
Product Details | PRESSURE FUEL SERVICING ADAPTER

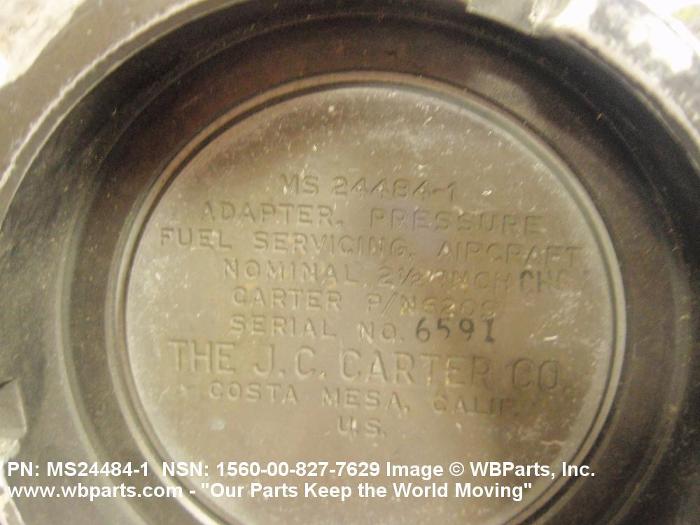

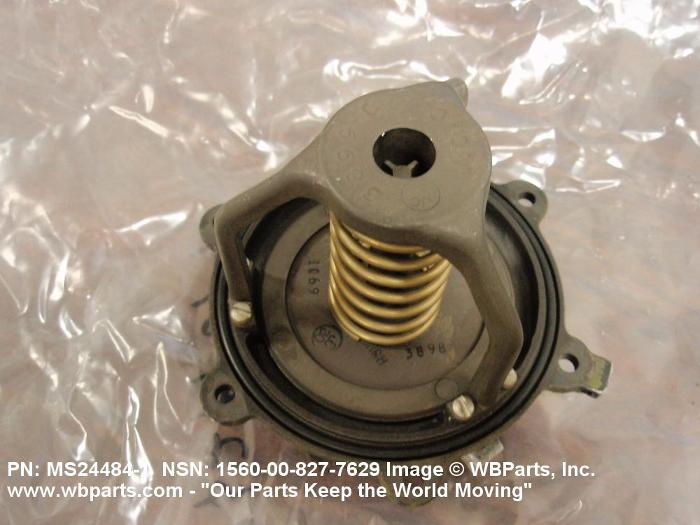

1560-00-827-7629 A metallic device of variable configuration having a circular ingress orifice located in the greatest dimension. When inoperative, the orifice is sealed by a poppet valve held in position by a mechanical spring. It permits rapid replenishment of fuel storage tanks, or fueling of an aircraft or guided missile when the valve is depressed by the fueling nozzle or by another similar pressure fuel dispensing device.20314200025Guided Missile Components15600030Airframe Structural Components49300041Lubrication and Fuel Dispensing Equipment
Part Alternates: MS244841, MS24484-1, 2670392, 6209, 66671, 1327576670, 1327-576670, 1560-00-827-7629, 00-827-7629, 1560008277629, 008277629
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 01 JAN 1962 | 00-827-7629 | 19179 ( ADAPTER, PRESSURE FUEL SERVICING ) |
Drawings & Photos | NSN 1560-00-827-7629
Demand History | NSN 1560-00-827-7629
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1560-00-827-7629 | 2024-11-326 | 1 | Singapore |
| 2670392 | 2024-11-320 | 1 | ID |
| 1560-00-827-7629 | 2019-08-239 | 1 | US |
| MS244841 | 2018-02-51 | 3 | us |
| MS244841 | 2018-02-51 | 3 | us |
| 1560-00-827-7629 | 2017-08-227 | 10 | us |
| MS244841 | 2017-08-227 | 10 | us |
| 1560-00-827-7629 | 2017-05-138 | 1 | US |
| 1560-00-827-7629 | 2016-09-251 | 3 | US |
| 1560-00-827-7629 | 2015-12-346 | 6 | Malaysia |
| 1560-00-827-7629 | 2015-12-342 | 10 | Malaysia |
| 1560-00-827-7629 | 2015-08-233 | 1 | US |
| 1560-00-827-7629 | 2015-04-91 | 1 | US |
| 6209 | 2013-03-79 | 5 | Saudi Arabia |
| MS244841 | 2011-05-140 | 1 | United States |
Cross Reference | NSN 1560-00-827-7629
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1327-576670 | 92003 | PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS |
| 2670392 | 92003 | PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS |
| 6209 | 86090 | EATON INDUSTRIAL CORPORATION DBA AIRFRAME |
| 66671 | 92003 | PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS |
| MS24484-1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1560-00-827-7629
Related Products | NSN 1560-00-827-7629
Technical Data | NSN 1560-00-827-7629
| Characteristic | Specifications |
|---|---|
| SHAPE | CYLINDRICAL |
| FUEL TYPE | AVIATION FUEL |
| LARGEST OUTSIDE DIAMETER | 4.688 INCHES NOMINAL |
| ENVELOPE INSIDE DIAMETER | 2.876 INCHES NOMINAL |
| VALVE TRAVEL DISTANCE | 1.438 INCHES NOMINAL |
| ORIFICE DIAMETER | 2.500 INCHES NOMINAL |
| VALVE FACE DIAMETER | 2.510 INCHES MINIMUM |
| SUPPORTING RIB QUANTITY | 3 |
| MOUNTING HOLE QUANTITY | 6 |
| MOUNTING HOLE DIAMETER | 0.205 INCHES NOMINAL |
| BOLT CIRCLE DIAMETER | 4.125 INCHES NOMINAL |
| MOUNTING HOLE SPACING | EQUALLY SPACED TO EACH OTHER |
| DEPARTURE FROM CITED DESIGNATOR | MS24484-1 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS24484-1 |
Restrictions/Controls & Freight Information | NSN 1560-00-827-7629
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
