NSN 1560-00-299-3633 68A3340151009, 68A334015-1009, 68A3340151015
Product Details | AIRCRAFT ACCESS DOOR
1560-00-299-3633 A rigid item of various shapes permanently attached to a structure of an aircraft, designed to provide access for inspection, service, replacement of components and/or adjustments. It is designed to be attached by means of hinges or similar device. It may include self-closing features and have a quick release or other type latching to permit access with a minimum of effort. It may include an observation window. Excludes COVER, ACCESS; COVER ACCESS, AIRCRAFT; DOOR, ACCESS; DOOR, AIRCRAFT and all doors not specifically designed to provide access for the purposes listed above.
Part Alternates: 68A3340151009, 68A334015-1009, 68A3340151015, 68A334015-1015, 1560-00-299-3633, 00-299-3633, 1560002993633, 002993633
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 03 OCT 1973 | 00-299-3633 | 51576 ( DOOR, ACCESS, AIRCRAFT ) |

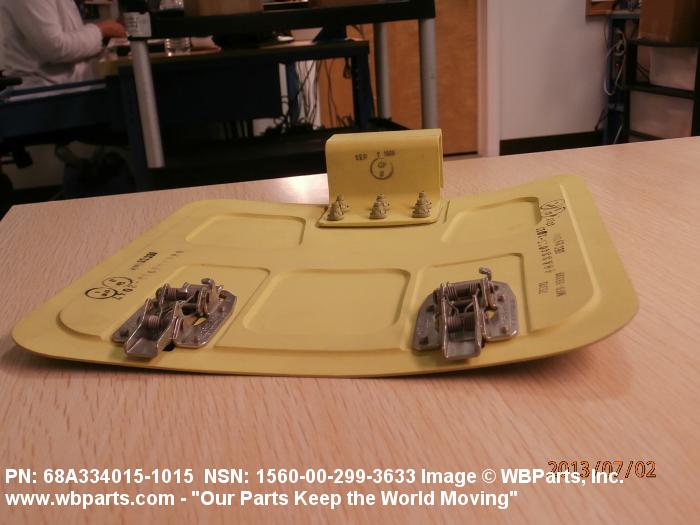

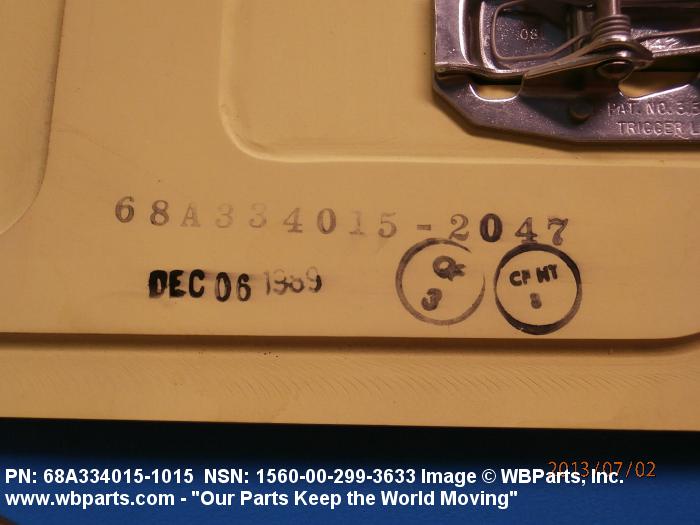

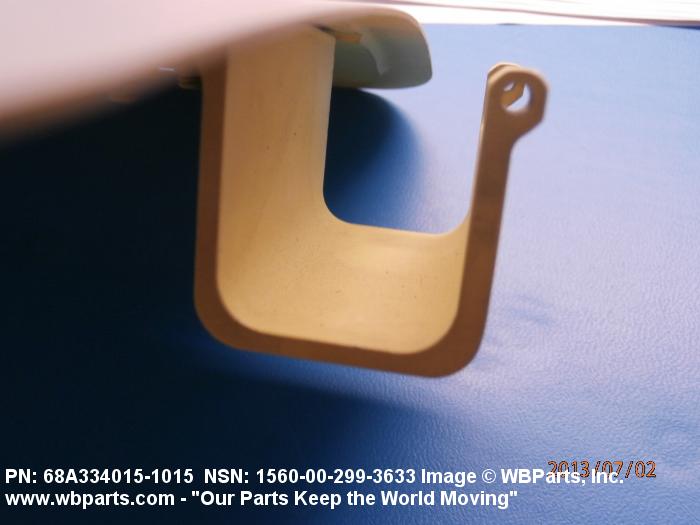

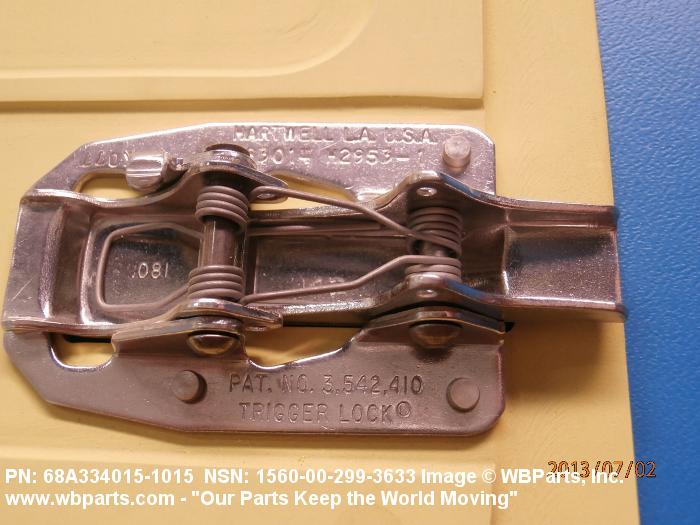

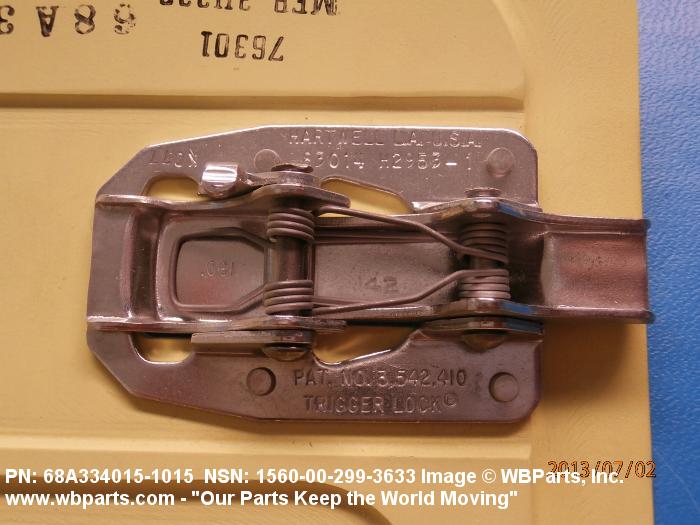

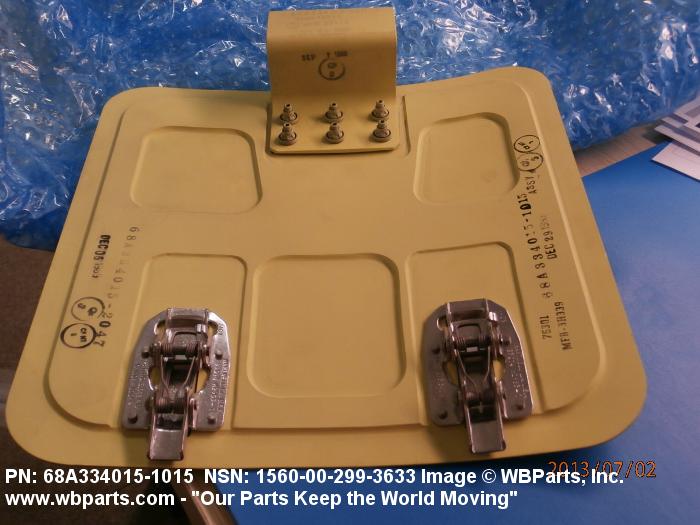

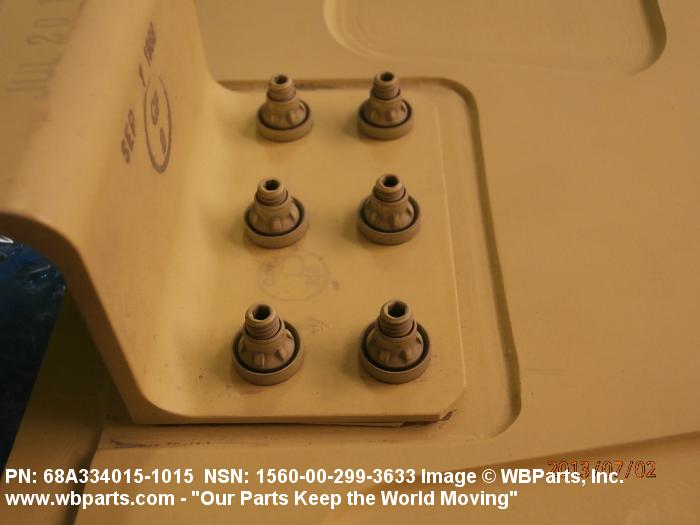

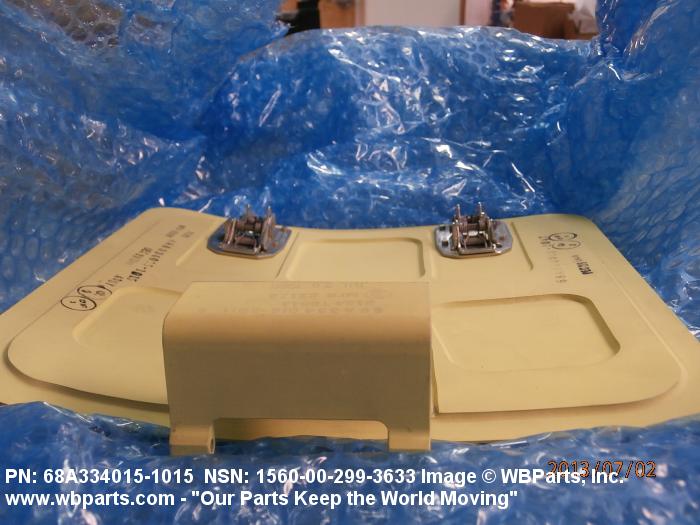

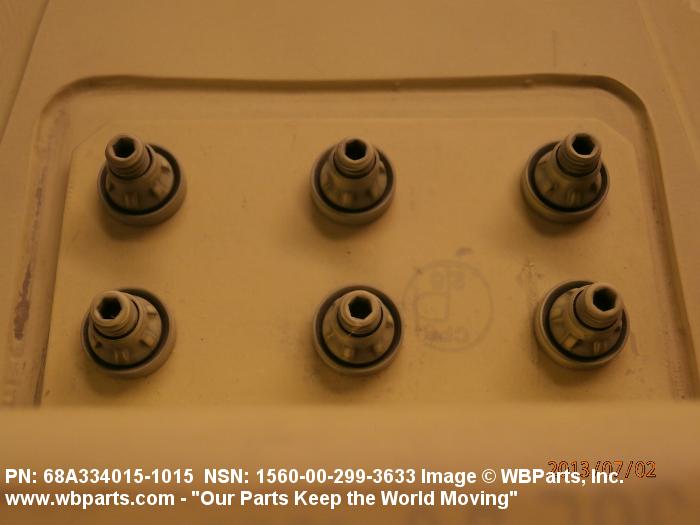

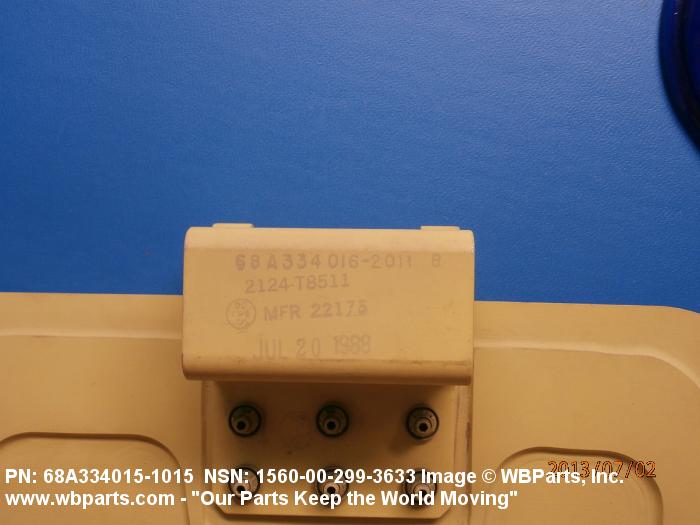

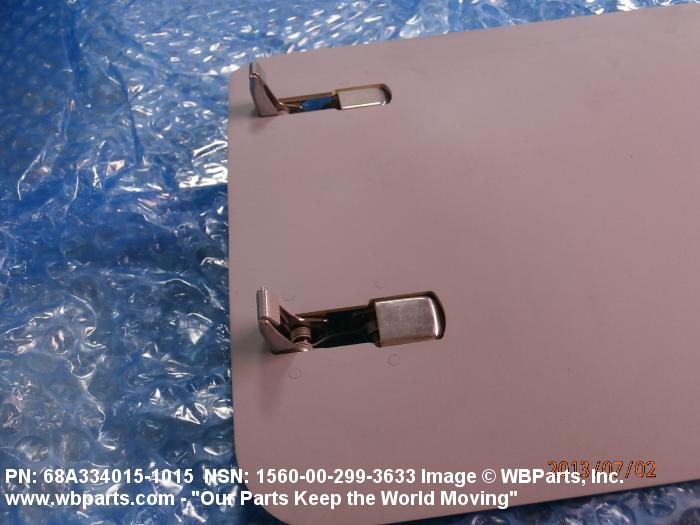

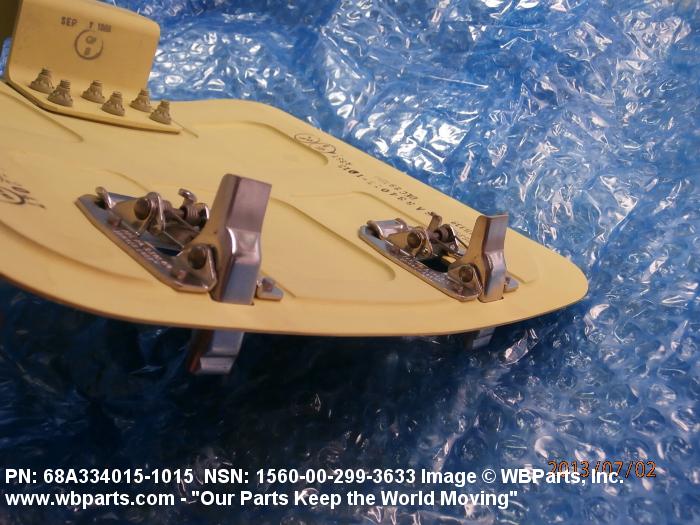

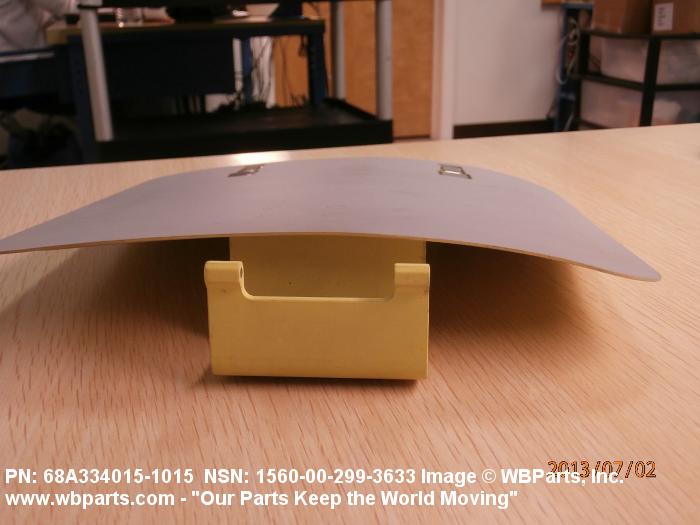

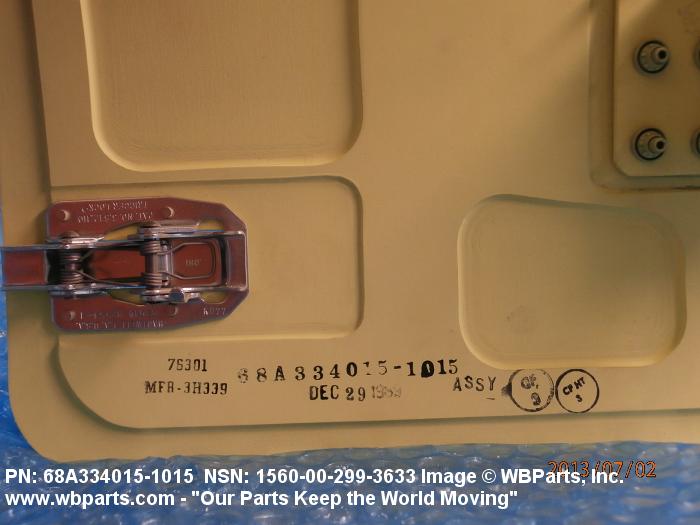

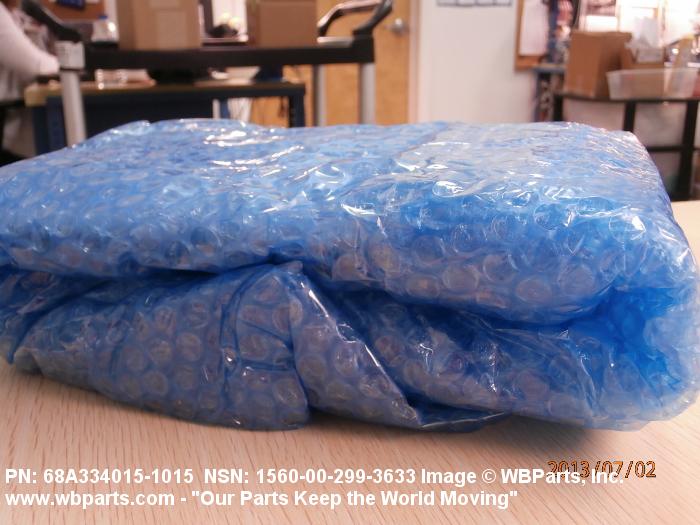

Drawings & Photos | NSN 1560-00-299-3633
Demand History | NSN 1560-00-299-3633
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1560-00-299-3633 | 2024-03-66 | 5 | DIBBS |
| 1560-00-299-3633 | 2022-05-143 | 7 | DIBBS |
| 1560-00-299-3633 | 2019-03-77 | 9 | DIBBS |
| 1560-00-299-3633 | 2019-01-17 | 9 | DIBBS |
| 1560-00-299-3633 | 2013-06-177 | 1 | United States |
| 1560-00-299-3633 | 2013-05-127 | 11 | DIBBS |
| 1560-00-299-3633 | 2007-10-295 | 46 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1560-00-299-3633
Related Products | NSN 1560-00-299-3633
Technical Data | NSN 1560-00-299-3633
| Characteristic | Specifications |
|---|---|
| PERIPHERAL SHAPE STYLE | 1 RECTANGLE, NO HOLES |
| MATERIAL | ALUMINUM ALLOY 2024 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/5,T3 FED SPEC SINGLE MATERIAL RESPONSE |
| SECURING DEVICE TYPE | HINGE |
| FSC APPLICATION DATA | FUSELAGE,AIRFRAME |
| MANUFACTURERS CODE | 76301 |
| DESIGN CONTROL REFERENCE | 68A334015-1015 |
Restrictions/Controls & Freight Information | NSN 1560-00-299-3633
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 011980 | AIRCRAFT DOORS ENTRANCE/EXIT/ETC |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1560-00-299-3633
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | FX | TG:F-15 EAGLE |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | P | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
