Product Details | WEBBING STRAP

1430-00-928-3677 A narrow strip of webbing cut to a definite length, having one or both ends processed. It is usually designed for, and may have, one or more attachments or fasteners, such as BUCKLE; LOOP, STRAP FASTENER; strap end clip; RING, DEE; Hook; and the like. Excludes STRAP, BERTH, MATTRESS RETAINING; STRAP, CHIN; safety straps; and WEBBING, TEXTILE. Do not use if a more specific item name applies.20416800049Miscellaneous Aircraft Accessories and Components53400020Hardware, Commercial84650020Individual Equipment84700015Armor, Personal

Part Alternates: 10187653, 1430-00-928-3677, 00-928-3677, 1430009283677, 009283677

Guided Missiles | Guided Missile Remote Control Systems

Supply Group (FSG) NSN Assign. NIIN
14 24 AUG 1966 00-928-3677

Drawings & Photos | NSN 1430-00-928-3677


Cross Reference | NSN 1430-00-928-3677

Part Number Cage Code Manufacturer
10187653 18876 U S ARMY AVIATION AND MISSILE COMMAND

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 1430-00-928-3677

Technical Data | NSN 1430-00-928-3677

Characteristic Specifications
MATERIAL COTTON, MIL-W-530, TYPE 2B, CLASS 4
ENVIRONMENTAL PROTECTION FUNGUS RESISTANT
LENGTH 6.000 INCHES NOMINAL
WIDTH 1.000 INCHES NOMINAL
COLOR OLIVE DRAB
END TYPE BOTH W/ATTACHMENTS
END ATTACHMENT/FASTENING FACILITY BUCKLE AND END CLIP AND METALLIC GROMMET
BUCKLE STYLE DESIGNATOR B10 CENTER NOTCHED BAR OFFSET
BUCKLE MATERIAL STEEL
BUCKLE SURFACE TREATMENT NICKEL
BUCKLE LOCATION ON ONE END
FASTENED BUCKLE FEATURE INCLUDED
BUCKLE FASTENING METHOD SEWED
END CLIP STYLE DESIGNATOR E1 FLAT CLIP
END CLIP MATERIAL STEEL
END CLIP QUANTITY 1
GROMMET QUANTITY 1
GROMMET BARREL STYLE DESIGNATOR F2 TAPERED ROUND TYPE

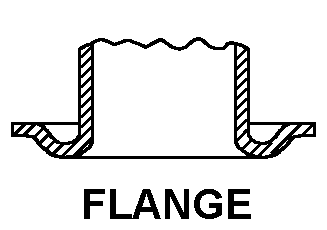

GROMMET FLANGE STYLE DESIGNATOR G3 FLANGE

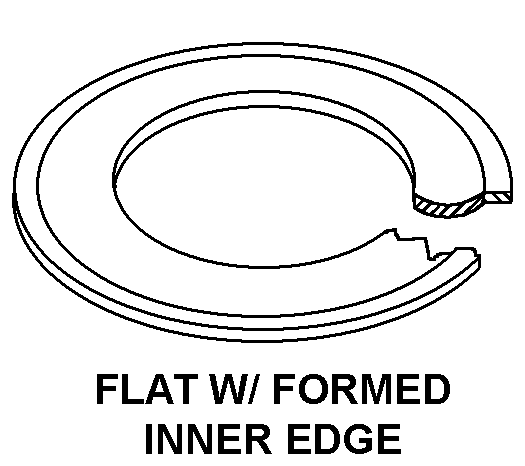

GROMMET WASHER STYLE DESIGNATOR H2 FLAT W/FORMED INNER EDGE
DISTANCE FROM STRAP END TO FIRST GROMMET HOLE CENTER 5.500 INCHES NOMINAL
MANUFACTURERS CODE 18876
DESIGN CONTROL REFERENCE 10187653

Restrictions/Controls & Freight Information | NSN 1430-00-928-3677

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 179580 STRAPS LEATHER IMITATION LEATHER
Less than car load rating J 100.2
Less than truck load rating J 100.2
Water commodity Code 778 unknown
Originating Activity Code BD U.S. Army Aviation and Missile Command
Redstone Arsenal, AL 35898-5230
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity K Clothing, including clothing equipment (other than arms and chemical supplies) cordage, fabrics and leather, parachutes, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
