NSN 1420-01-374-1866 61358751, 6135875-1, 01-374-1866
Product Details | GUIDED MISSILE ACCESS COVER
1420-01-374-1866 An item which is a portion of the body shell of a guided missile and which, through use of hinges, catches, or other fastening devices, permits easy access to the interior of a missile. Excludes COVER, ACCESS, GUIDED MISSILE COMPONENTS.
Part Alternates: 61358751, 6135875-1, 1420-01-374-1866, 01-374-1866, 1420013741866, 013741866
Guided Missiles | Guided Missile Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 14 | 17 APR 1993 | 01-374-1866 | 22208 ( COVER, ACCESS, GUIDED MISSILE ) |
Drawings & Photos | NSN 1420-01-374-1866
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1420-01-374-1866
Related Products | NSN 1420-01-374-1866
Technical Data | NSN 1420-01-374-1866
| Characteristic | Specifications |
|---|---|

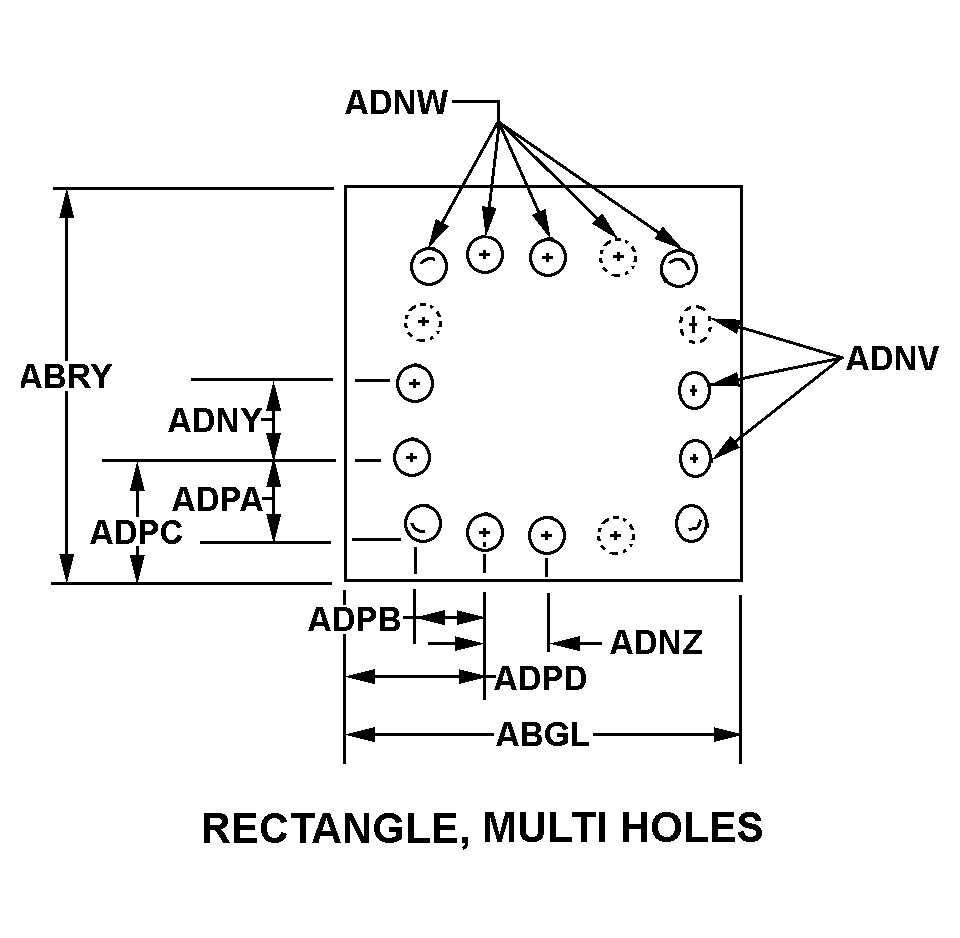

| PERIPHERAL SHAPE STYLE | 46 RECTANGLE, MULTI HOLES |
| WIDTH | 24.835 INCHES NOMINAL |
| LENGTH | 24.835 INCHES NOMINAL |
| DISTANCE BETWEEN HOLE CENTERLINE AND FIRST HOLE ALONG LENGTH | 2.625 INCHES NOMINAL |
| DISTANCE BETWEEN HOLE CENTERLINE AND FIRST HOLE ALONG WIDTH | 2.625 INCHES NOMINAL |
| DISTANCE FROM FIRST HOLE CENTERLINE TO END ALONG LENGTH | 18.375 INCHES NOMINAL |
| DISTANCE FROM FIRST HOLE CENTERLINE TO END ALONG WIDTH | 18.375 INCHES NOMINAL |
| DISTANCE BETWEEN HOLES ALONG LENGTH | 2.625 INCHES NOMINAL |
| DISTANCE BETWEEN HOLES ALONG WIDTH | 2.625 INCHES NOMINAL |
| HOLE QUANTITY ALONG LENGTH | 8 |
| HOLE QUANTITY ALONG WIDTH | 8 |
| CORNER RADIUS | 1.520 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | 26 FLAT |
| BODY THICKNESS | 0.188 INCHES NOMINAL |
| MATERIAL | ALUMINUM |
| SPECIAL FEATURES | ITEM IS A VLASROC/SEAL,FORWARD COVER FOR THE MK21. |
| (NON-CORE DATA) CORNER HOLE CENTERLINE RADIUS | 0.750 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 1420-01-374-1866
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 778 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1420-01-374-1866
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
