NSN 1290-00-518-4592 5184592, 00-518-4592, 005184592
Product Details | BALL SOCKET SEAT
1290-00-518-4592 A rigid item, usually circular in shape, having a concave or bevel bearing surface on one end. It is designed to mate with and provide a wear surface for the ball of a ball stud, control rod, arm, or the like. The other end is usually flat, flanged, or offset and is usually designed to mate with a flat surface or spring. Includes metal items having a plastic ball socket insert. See also WASHER, CONCAVE.20512400038Optical Sighting and Ranging Equipment12900036Miscellaneous Fire Control Equipment25200039Vehicular Power Transmission Components25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components53400020Hardware, Commercial
Part Alternates: 5184592, 1290-00-518-4592, 00-518-4592, 1290005184592, 005184592
Fire Control Equipment | Miscellaneous Fire Control Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 12 | 01 JAN 1963 | 00-518-4592 | 19451 ( SEAT, BALL SOCKET ) |

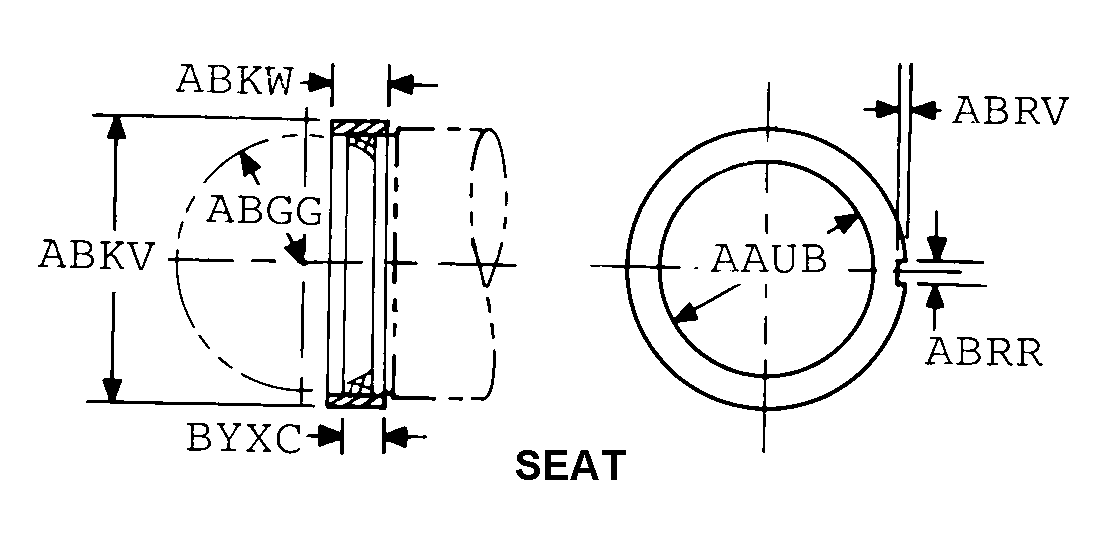

Drawings & Photos | NSN 1290-00-518-4592
Cross Reference | NSN 1290-00-518-4592
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5184592 | 19200 | US ARMY ARDEC RDECOM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1290-00-518-4592
Technical Data | NSN 1290-00-518-4592
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL HARDNESS RATING | NOT RATED |
| STYLE DESIGNATOR | M8 SEAT |
| RADIUS | 0.156 INCHES NOMINAL |
| BALL SEAT DEPTH | 0.094 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.410 INCHES NOMINAL |
| OVERALL HEIGHT | 0.219 INCHES NOMINAL |
| HOLE DIAMETER | 0.234 INCHES NOMINAL |
| KEYWAY WIDTH | 0.031 INCHES NOMINAL |
| KEYWAY DEPTH | 0.031 INCHES NOMINAL |
| MANUFACTURERS CODE | 19200 |
| DESIGN CONTROL REFERENCE | 5184592 |
Restrictions/Controls & Freight Information | NSN 1290-00-518-4592
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
