NSN 1240-01-565-3658 10583, 01-565-3658, 015653658
Product Details | SIGHTUNIT
1240-01-565-3658 A compact sighting device composed of an elbow or panoramic telescope, mount, and/or adapter, usually used for pointing a weapon for direct or indirect fire. It may be attached to, or used in conjunction with, a weapon, rocket launcher, or the like. Excludes SIGHT, INFINITY and SPOTTING INSTRUMENT, OPTICAL.
Part Alternates: 10583, 1240-01-565-3658, 01-565-3658, 1240015653658, 015653658
Fire Control Equipment | Optical Sighting and Ranging Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 12 | 22 JUL 2008 | 01-565-3658 | 22603 ( SIGHTUNIT ) |
Drawings & Photos | NSN 1240-01-565-3658
Cross Reference | NSN 1240-01-565-3658
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10583 | 3J629 | AIMPOINT, INC. DBA AIMPOINT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1240-01-565-3658
Technical Data | NSN 1240-01-565-3658
| Characteristic | Specifications |
|---|---|
| OPTICAL DEVICE TYPE | LENS |
| FOCUSING TYPE | ADJUSTABLE |
| OBJECTIVE APERTURE DIAMETER | 30.0 MILLIMETERS NOMINAL |
| FIELD VIEW COVERAGE | MINUTE OF ANGLE (MOA) 2;1 MOA EQUALS 30MM AT 100 METERS EQUALS 1 INCH AT 100 YARDS |
| MAGNIFICATION TYPE | FIXED |
| MAGNIFICATION | 2.0X NOMINAL |
| STRAIGHT TYPE OVERALL LENGTH | 165.0 MILLIMETERS NOMINAL |
| SCALE MARKINGS | PROVIDED |
| SCALE CALIBRATION | 1 CLICK EQUALS 13MM AT 100 METERS EQUALS 1/2INCH AT 100 YARDS |

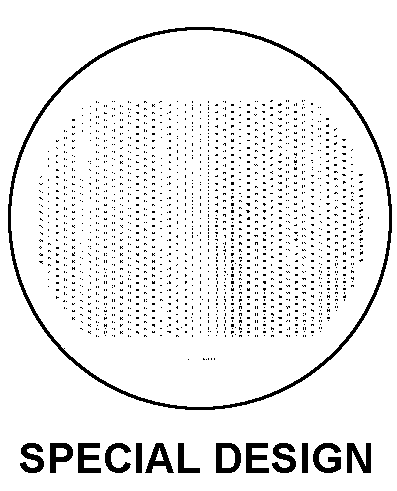

| RETICLE STYLE DESIGNATOR | A19 SPECIAL DESIGN |
| RETICLE IDENTIFYING NUMBER | AIMPOINT COMPML2 2X |
| BRACKET | NOT PROVIDED |
| CARRYING CASE | NOT PROVIDED |
| SPECIAL FEATURES | CIRCUIT EFFICIENCY TECHNOLOGY (CET) DIODE;REFLEX COLLIMATOR SIGHT-RED DOT;LED;PARALLAX FREE,EYE RELIEF;ANTI-REFLECTIVE COATINGS;1 3V LITHIUM BATTERY;MECHANICAL SWITCH-DOT INTENSITY 10 SETTINGS |
| SPECIAL TEST FEATURES | SELECTED FOR LAW ENFORCEMENT,ARMED FORCES;PISTOL,REVOLVER,CARBINE,PD W,LMG,MMG |
| III USAGE DESIGN | DESIGNED FOR DAY USE,INCLUDING DUSK AND DAWN;SUBMERSIBLE TO 25 METERS (75FT) |
| III SUPPLEMENTARY FEATURES | SETTINGS 1 OFF, 9 DAYLIGHT;LENS COVERS-THERMOPLASTIC ELASTOMER,BLACK NON-GLARE;WEIGHT 290G |
| III END ITEM IDENTIFICATION | SPECIAL FORCES;ELITE POLICE |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | GUN SIGHT |
Restrictions/Controls & Freight Information | NSN 1240-01-565-3658
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
