NSN 1240-01-560-5159 65145, 01-560-5159, 015605159
Product Details | OPTICAL SPOTTING INSTRUMENT
1240-01-560-5159 An item used for spotting enemy fire, detecting azimuth and deflection errors in bursts of fire for flash ranging, terrestrial and celestial observation, and for accurate measurement of horizontal and vertical angles by the use of reticles. It may have a single or dual optical system(s), utilizing a straight or offset (raised) line of sight. It is supported by a tribrach having a leveling plate with adjusting screws, circular and/or tubular level vials, azimuth and elevation controls, and the like. It may be mounted in a tripod or groundshelf mount, and usually includes accommodations for a LIGHT, INSTRUMENT.20212400038Optical Sighting and Ranging Equipment66500063Optical Instruments, Test Equipment, Components and Accessories
Part Alternates: 65145, 1240-01-560-5159, 01-560-5159, 1240015605159, 015605159
Fire Control Equipment | Optical Sighting and Ranging Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 12 | 01 FEB 2008 | 01-560-5159 | 22604 ( SPOTTING INSTRUMENT, OPTICAL ) |
Drawings & Photos | NSN 1240-01-560-5159
Cross Reference | NSN 1240-01-560-5159
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 65145 | 35848 | LEUPOLD & STEVENS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1240-01-560-5159
Technical Data | NSN 1240-01-560-5159
| Characteristic | Specifications |
|---|---|
| OPTICAL DEVICE TYPE | LENS |
| FOCUSING TYPE | ADJUSTABLE |
| OBJECTIVE APERTURE DIAMETER | 60.0 MILLIMETERS NOMINAL |
| FIELD VIEW COVERAGE | G 3.2-1.0 DEG (ANGULAR)/16.8-5.2 (FTAT 100YDS) |
| MAGNIFICATION TYPE | VARIABLE |
| MAGNIFICATION | 12.0X MINIMUM |
| STRAIGHT TYPE OVERALL LENGTH | 12.400 INCHES NOMINAL |
| SCALE MARKINGS | NOT PROVIDED |

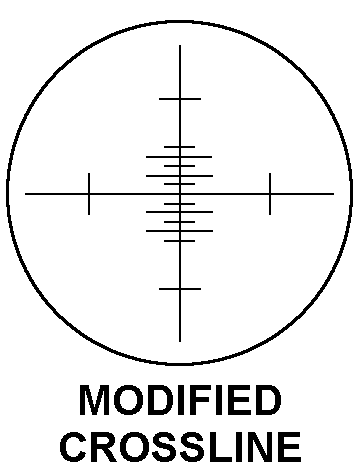

| RETICLE STYLE DESIGNATOR | A21 MODIFIED CROSSLINE |
| RETICLE IDENTIFYING NUMBER | DNDDWG0676499 |
| BRACKET | PROVIDED |
| ACCESSORY COMPONENTS AND QUANTITY | GREEN PADDED CASE 1 |
| CARRYING CASE | PROVIDED |
| SPECIAL FEATURES | P4 RETICLE WITH 0.5 MRAD MARKINGS |
| III END ITEM IDENTIFICATION | C14 AND C15 SNIPER RIFLES |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | GOLDEN RING MARK 4 12-40X60MM TACTICAL SPOTTING SCOPE |
Restrictions/Controls & Freight Information | NSN 1240-01-560-5159
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
