Product Details | OPTICAL ELEMENT RETAINER
1240-01-129-0936 A cylindrical, externally threaded item having a centrally located hole specifically designed to retain by means of either a raised box (shoulder), or counterbore, countersink, or a similar shaped recess, an optical element such as a lens, reticle, cell, and the like, in optical assemblies. It must have drilled holes or slots to facilitate assembly and disassembly. For items which house the optical element(s), and form the internal or central portions of an optical system, see CELL, OPTICAL ELEMENT. Excludes RING, EXTERNALLY THREADED.20312400038Optical Sighting and Ranging Equipment58550055Night Vision Equipment, Emitted and Reflected Radiation66500063Optical Instruments, Test Equipment, Components and Accessories
Part Alternates: 12309701, 1240-01-129-0936, 01-129-0936, 1240011290936, 011290936
Fire Control Equipment | Optical Sighting and Ranging Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 12 | 31 MAR 1982 | 01-129-0936 | 22451 ( RETAINER, OPTICAL ELEMENT ) |
Drawings & Photos | NSN 1240-01-129-0936
Cross Reference | NSN 1240-01-129-0936
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12309701 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1240-01-129-0936
Technical Data | NSN 1240-01-129-0936
| Characteristic | Specifications |
|---|---|

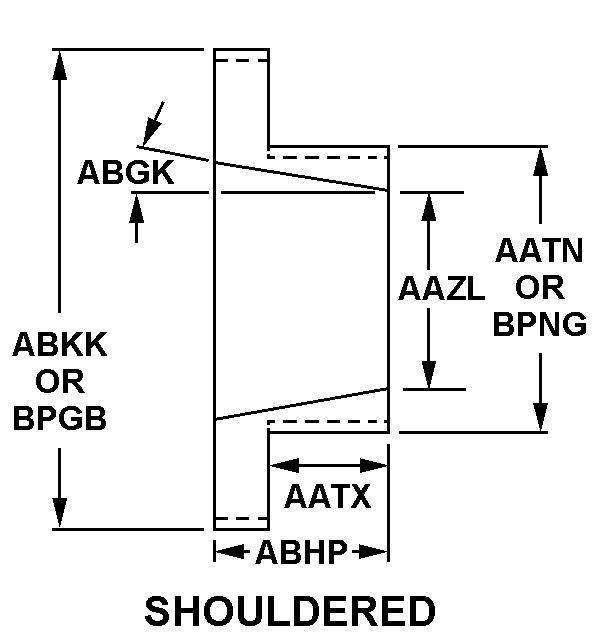

| STYLE DESIGNATOR | F5 SHOULDERED |
