NSN 1240-00-848-8658 8587343, 00-848-8658, 008488658
Product Details | OPTICAL ELEMENT RETAINER
1240-00-848-8658 A cylindrical, externally threaded item having a centrally located hole specifically designed to retain by means of either a raised box (shoulder), or counterbore, countersink, or a similar shaped recess, an optical element such as a lens, reticle, cell, and the like, in optical assemblies. It must have drilled holes or slots to facilitate assembly and disassembly. For items which house the optical element(s), and form the internal or central portions of an optical system, see CELL, OPTICAL ELEMENT. Excludes RING, EXTERNALLY THREADED.20312400038Optical Sighting and Ranging Equipment58550055Night Vision Equipment, Emitted and Reflected Radiation66500063Optical Instruments, Test Equipment, Components and Accessories
Part Alternates: 8587343, 1240-00-848-8658, 00-848-8658, 1240008488658, 008488658
Fire Control Equipment | Optical Sighting and Ranging Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 12 | 01 JAN 1963 | 00-848-8658 | 22451 ( RETAINER, OPTICAL ELEMENT ) |
Drawings & Photos | NSN 1240-00-848-8658
Cross Reference | NSN 1240-00-848-8658
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8587343 | 19200 | US ARMY ARDEC RDECOM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1240-00-848-8658
Technical Data | NSN 1240-00-848-8658
| Characteristic | Specifications |
|---|---|

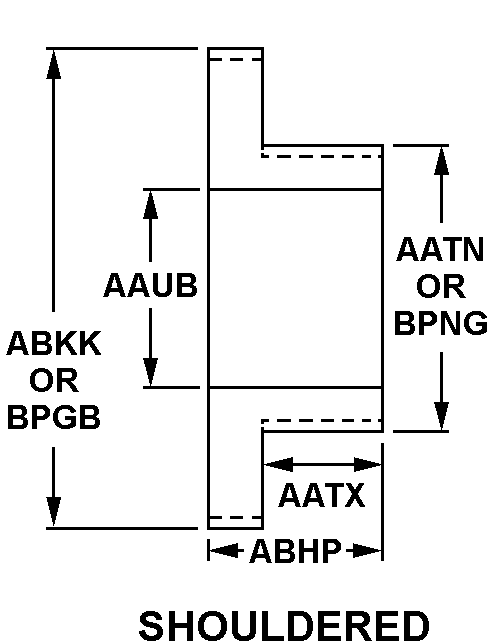

| STYLE DESIGNATOR | F4 SHOULDERED |
| SHOULDER DIAMETER | 1.070 INCHES NOMINAL |
| SHOULDER LENGTH | 0.063 INCHES NOMINAL |
| HOLE DIAMETER | 0.920 INCHES NOMINAL |
| OVERALL LENGTH | 0.250 INCHES NOMINAL |
| FLANGE THREAD SIZE | 1.125 IN.-32 NS-2A |
| MATERIAL | ALUMINUM |
| SURFACE TREATMENT | ANODIZED BLACK |
| DRIVE TYPE | SLOTTED |
| HOLE OR SLOT QUANTITY | 1 |
| WIDTH | 0.057 INCHES NOMINAL |
| DEPTH | 0.050 INCHES NOMINAL |
| INTERNAL ANNULAR SERRATION | NOT PROVIDED |
| SETSCREW NOTCH | NOT PROVIDED |
| III FSC APPLICATION DATA | TELESCOPE,PANORAMIC,INTEGRATED WITH FIRE CONTROL EQUIPMENT |
| MANUFACTURERS CODE | 19200 |
| DESIGN CONTROL REFERENCE | 8587343 |
Restrictions/Controls & Freight Information | NSN 1240-00-848-8658
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
