NSN 1240-00-759-7853 12407597853, 1240-759-7853 , 7597853
Product Details | STRAIGHT TELESCOPE
1240-00-759-7853 A telescope whose line of vision is 180 degrees from the eye.20212400038Optical Sighting and Ranging Equipment66500063Optical Instruments, Test Equipment, Components and Accessories
Part Alternates: 12407597853, 1240-759-7853 , 7597853, 1240-00-759-7853, 00-759-7853, 1240007597853, 007597853
Fire Control Equipment | Optical Sighting and Ranging Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 12 | 01 JAN 1962 | 00-759-7853 | 08633 ( TELESCOPE, STRAIGHT ) |
Drawings & Photos | NSN 1240-00-759-7853
Cross Reference | NSN 1240-00-759-7853
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7597853 | 19200 | US ARMY ARDEC RDECOM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1240-00-759-7853
Technical Data | NSN 1240-00-759-7853
| Characteristic | Specifications |
|---|---|
| OPTICAL DEVICE TYPE | LENS AND PRISM |
| FOCUSING TYPE | FIXED |
| OBJECTIVE APERTURE DIAMETER | 22.86 MILLIMETERS NOMINAL |
| FIELD VIEW COVERAGE | 13 DEG 20 MIN |
| MAGNIFICATION TYPE | FIXED |
| MAGNIFICATION | 3X NOMINAL |
| STRAIGHT TYPE OVERALL LENGTH | 7.500 INCHES NOMINAL |
| SCALE MARKINGS | NOT PROVIDED |

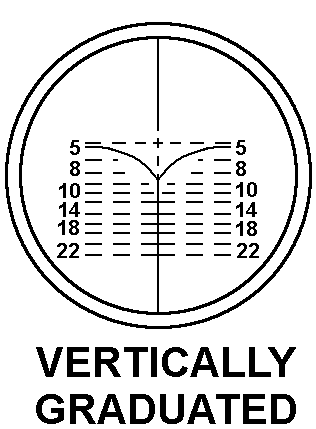

| RETICLE STYLE DESIGNATOR | A6 VERTICALLY GRADUATED |
| RETICLE IDENTIFYING NUMBER | 1240-765-3239 |
| BRACKET | NOT PROVIDED |
| INSTRUMENT LIGHT MODEL NUMBER | M36 |
| CARRYING CASE | PROVIDED |
| UNIT PACKAGE QUANTITY | 1 |
| UNIT PACKAGE TYPE | CASE |
| MANUFACTURERS CODE | 19200 |
| DESIGN CONTROL REFERENCE | 7597853 |
Restrictions/Controls & Freight Information | NSN 1240-00-759-7853
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 058350 | TELESCOPES NOI |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 744 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | S | Office, School, and Household Supplies/Equipment including Office Machines, Furniture/Stationary, Films, Synthetic/Special Training Films, Non-Hazardous Household Cleaning Products, Non-Hazardous Personal Hygiene Products, etc. |
| Air Special Handling | Y | Protected cargo, other than above, including sensitive cargo requiring hand-to-hand receipt and/or security precautions. |
| Special Handling Code | 5 | unknonwn |
| HAZMAT | FF | |
| Type of Cargo | Z | No special type of cargo code applicable |
