NSN 1240-00-344-4633 8243177, 00-344-4633, 003444633
Product Details | PANORAMIC TELESCOPE
1240-00-344-4633 A telescope having a horizontally rotating head.20212400038Optical Sighting and Ranging Equipment66500063Optical Instruments, Test Equipment, Components and Accessories
Part Alternates: 8243177, 1240-00-344-4633, 00-344-4633, 1240003444633, 003444633
Fire Control Equipment | Optical Sighting and Ranging Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 12 | 01 JAN 1963 | 00-344-4633 | 08632 ( TELESCOPE, PANORAMIC ) |
Drawings & Photos | NSN 1240-00-344-4633
Cross Reference | NSN 1240-00-344-4633
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8243177 | 19200 | US ARMY ARDEC RDECOM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1240-00-344-4633
Technical Data | NSN 1240-00-344-4633
| Characteristic | Specifications |
|---|---|
| OPTICAL DEVICE TYPE | LENS AND PRISM |
| FOCUSING TYPE | FIXED |
| OBJECTIVE APERTURE DIAMETER | 16.76 MILLIMETERS NOMINAL |
| FIELD VIEW COVERAGE | 10 DEG |
| MAGNIFICATION TYPE | FIXED |
| MAGNIFICATION | 4.0 NOMINAL |
| SCALE MARKINGS | PROVIDED |
| SCALE CALIBRATION | 0 TO 100 MILS AZIMUTH |

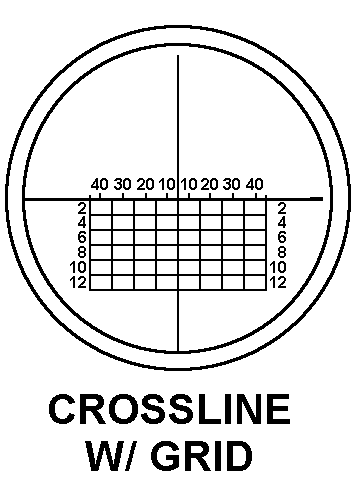

| RETICLE STYLE DESIGNATOR | A14 CROSSLINE WITH GRID |
| RETICLE IDENTIFYING NUMBER | 1240-300-7983 |
| BRACKET | NOT PROVIDED |
| INSTRUMENT LIGHT MODEL NUMBER | NONE |
| CARRYING CASE | NOT PROVIDED |
| SPECIAL FEATURES | SECOND SCALE CALIBRATION 20 TO 0TO 20 MILS AZIMUTH; THIRD SCALE CALIBRATION 0 TO 31 TO 0 TO 31 MILS AZIMUTH;FOURTH SCALE CALIBRATION 0 TO 31 TO 0 TO 31 MILS AZIMUTH |
| MANUFACTURERS CODE | 19200 |
| DESIGN CONTROL REFERENCE | 8243177 |
Restrictions/Controls & Freight Information | NSN 1240-00-344-4633
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | C | Munitions List Item or Commerce Control List Item. Demilitarization required. Remove and/or demilitarize installed key point(s) as prescribed in the Defense Demilitarization Manual, or lethal parts, components and accessories. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 058350 | TELESCOPES NOI |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 744 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | S | Office, School, and Household Supplies/Equipment including Office Machines, Furniture/Stationary, Films, Synthetic/Special Training Films, Non-Hazardous Household Cleaning Products, Non-Hazardous Personal Hygiene Products, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
