Product Details | INDIRECT FIRE PLOTTING BOARD

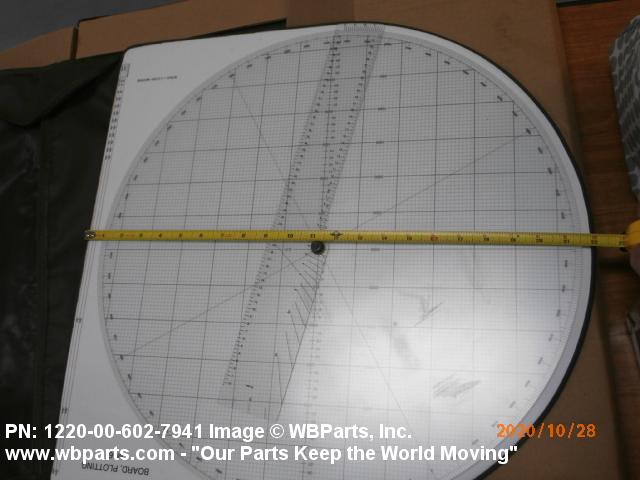

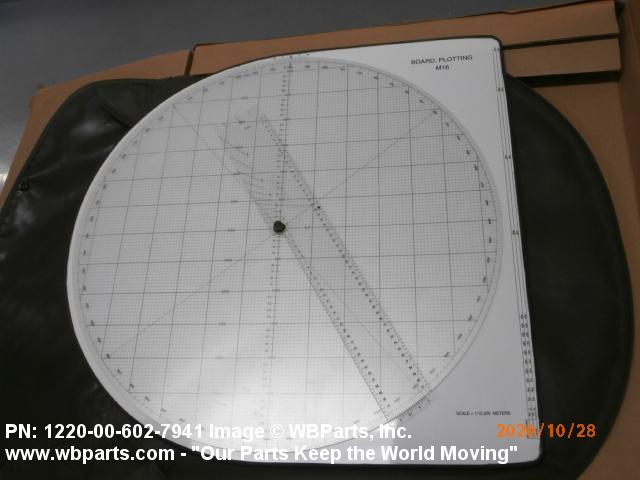

1220-00-602-7941 A specifically designed, hand held device, with a plane surface inscribed with mathematical data, and a pivoted rotating disk inscribed with millimeter scales around its periphery. It is used to determine the unknown distance of a target in relation to the known positions of the observer and the gun location.
Part Alternates: 8270330, 1220-00-602-7941, 00-602-7941, 1220006027941, 006027941
Fire Control Equipment | Fire Control Computing Sights and Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 12 | 01 JAN 1963 | 00-602-7941 | 60824 ( PLOTTING BOARD, INDIRECT FIRE ) |
Drawings & Photos | NSN 1220-00-602-7941
Demand History | NSN 1220-00-602-7941
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1220-00-602-7941 | 2024-04-95 | 3 | United States |
| 1220-00-602-7941 | 2024-04-92 | 3 | US |
| 1220-00-602-7941 | 2024-03-88 | 3 | US |
| 1220-00-602-7941 | 2024-01-30 | 10 | BE |
| 1220-00-602-7941 | 2023-10-292 | 1 | US |
| 1220-00-602-7941 | 2023-09-262 | 1 | US |
| 1220-00-602-7941 | 2023-06-180 | 8 | US |
| 1220-00-602-7941 | 2023-03-66 | 1 | US |
| 1220-00-602-7941 | 2022-03-90 | 5 | US |
| 1220-00-602-7941 | 2022-03-66 | 1 | US |
| 1220-00-602-7941 | 2022-03-62 | 240 | TR |
| 1220-00-602-7941 | 2020-09-261 | 1 | United States |
| 1220-00-602-7941 | 2020-07-189 | 10 | UY |
| 1220-00-602-7941 | 2020-05-136 | 25 | LV |
| 1220-00-602-7941 | 2019-11-323 | 10 | LV |
| 1220-00-602-7941 | 2017-04-107 | 6 | US |
| 1220-00-602-7941 | 2016-08-236 | 2 | United States |
| 1220-00-602-7941 | 2013-09-253 | 1 | US |
| 1220-00-602-7941 | 2013-06-157 | 6 | AT |
