NSN 1090-01-513-3939 C688019370, C6880-19370, 7250127
Product Details | SHOCK DAMPER
1090-01-513-3939
Part Alternates: C688019370, C6880-19370, 7250127, 1090-01-513-3939, 01-513-3939, 1090015133939, 015133939
Weapons | Assemblies Interchangeable Between Weapons in Two or More Classes
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 10 | 24 SEP 2003 | 01-513-3939 | 77777 ( ) |

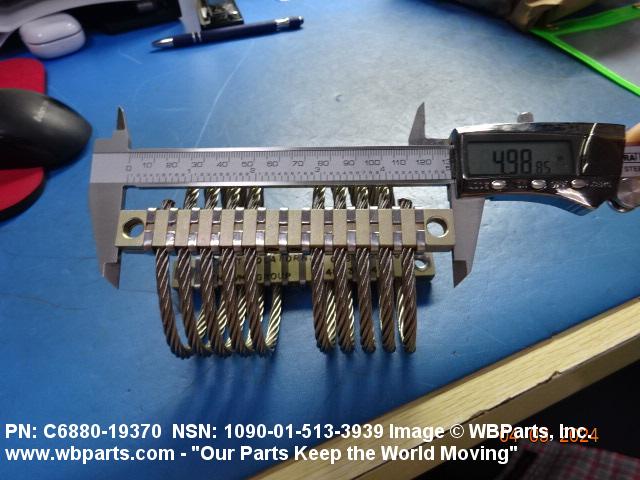

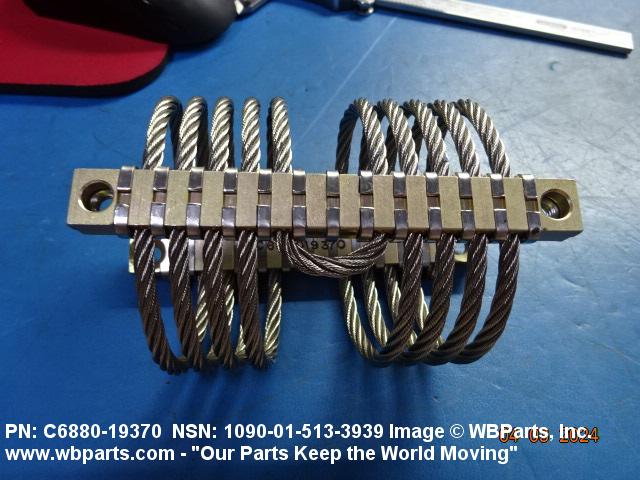

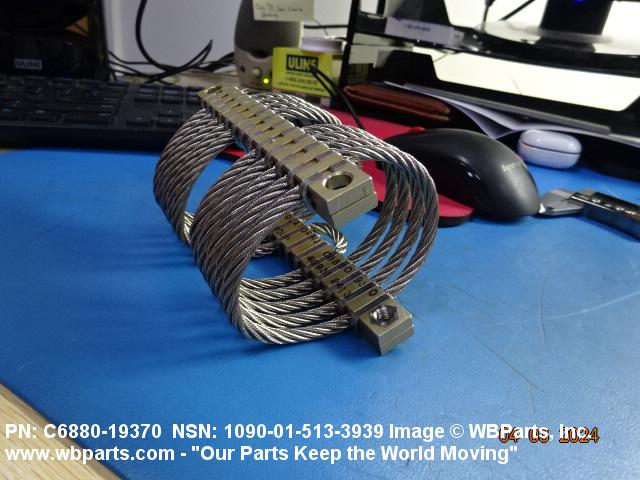

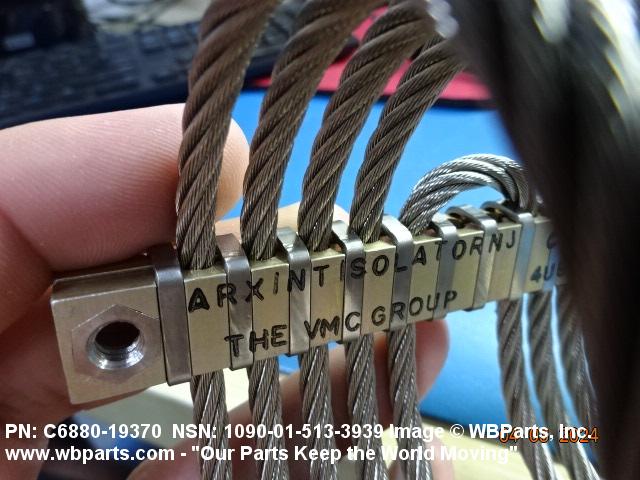

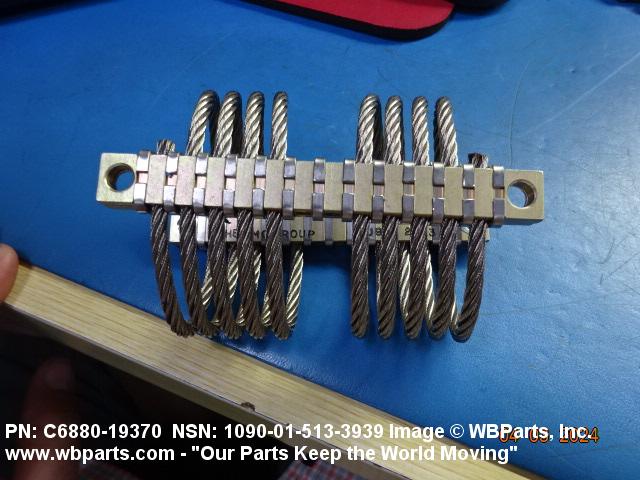

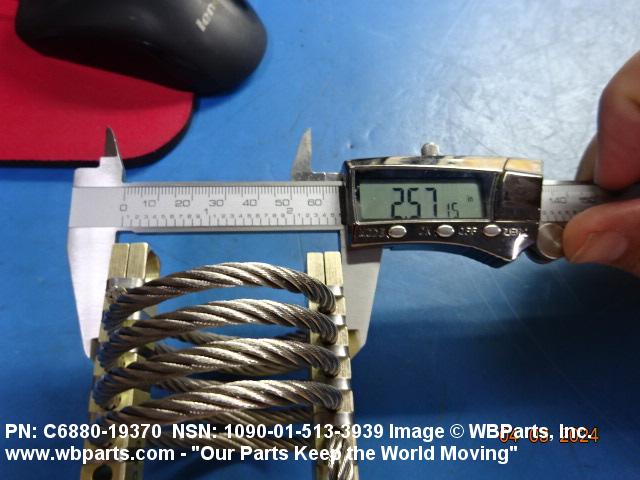

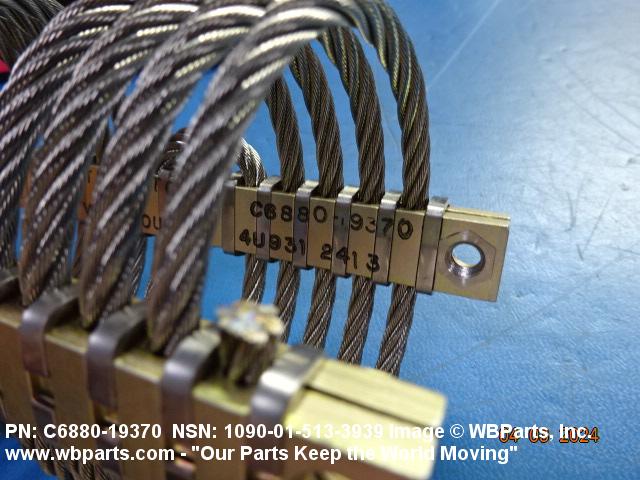

Drawings & Photos | NSN 1090-01-513-3939
Demand History | NSN 1090-01-513-3939
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| C688019370 | 2023-12-356 | 6 | United States |
| 1090-01-513-3939 | 2014-08-232 | 6 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1090-01-513-3939
Related Products | NSN 1090-01-513-3939
Technical Data | NSN 1090-01-513-3939
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| SURFACE TREATMENT | PASSIVATE |
| OVERALL LENGTH | 5.000 INCHES NOMINAL |
| OVERALL WIDTH | 2.450 INCHES NOMINAL |
| OVERALL HEIGHT | 3.450 INCHES NOMINAL |
| PRESSURE RATING | 100.0 POUNDS PER SQUARE INCH |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL; STAINLESS STEEL COIL AND CLIPS, ALUMINUM RETAINING BAR |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | MK45 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | ISOLATOR, SHOCK |
Restrictions/Controls & Freight Information | NSN 1090-01-513-3939
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 1090-01-513-3939
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
