NSN 1015-00-722-9135 10157229135, 1015-722-9135 , 7229135
Product Details | TRIGGER
1015-00-722-9135 An item/device, part of the firing mechanism, that actuates a firing pin or initiates an explosive train.20610050018Guns, through 30mm10100026Guns, over 30mm up to 75mm10150024Guns, 75mm through 125mm10250030Guns, over 150mm through 200mm10550033Launchers, Rocket and Pyrotechnic10950021Miscellaneous Weapons
Part Alternates: 10157229135, 1015-722-9135 , 7229135, 1015-00-722-9135, 00-722-9135, 1015007229135, 007229135
Weapons | Guns, 75mm through 125mm
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 10 | 01 JAN 1963 | 00-722-9135 | 22223 ( TRIGGER ) |
Drawings & Photos | NSN 1015-00-722-9135
Cross Reference | NSN 1015-00-722-9135
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7229135 | 19206 | ARMY, UNITED STATES DEPARTMENT OF THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1015-00-722-9135
Technical Data | NSN 1015-00-722-9135
| Characteristic | Specifications |
|---|---|

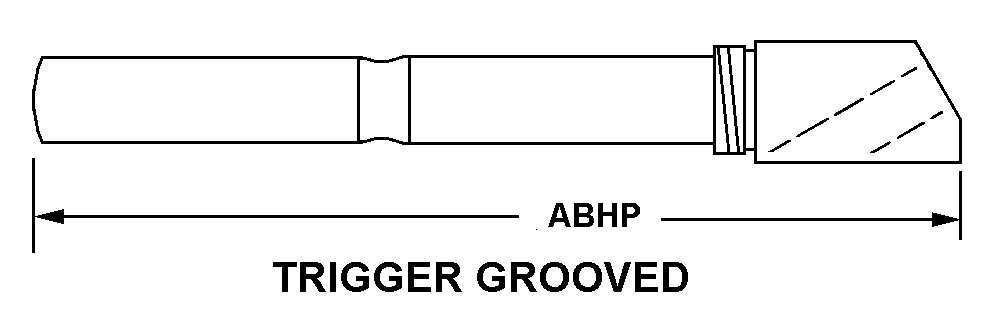

| STYLE DESIGNATOR | K5A TRIGGER GROOVED |
| OVERALL LENGTH | 4.680 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | 1015-691-1289 M20 |
| III WEAPON SIZE DESIGNATION | 75 MILLIMETER |
| III WEAPON MODEL NUMBER | M20 |
| III FSC APPLICATION DATA | RIFLE,RECOILLESS,75 MM |
| MANUFACTURERS CODE | 19206 |
| DESIGN CONTROL REFERENCE | 7229135 |
Restrictions/Controls & Freight Information | NSN 1015-00-722-9135
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | C | Munitions List Item or Commerce Control List Item. Demilitarization required. Remove and/or demilitarize installed key point(s) as prescribed in the Defense Demilitarization Manual, or lethal parts, components and accessories. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069300 | FIREARMS/PARTS NOI IN BOXES |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 682 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | 2 | Arms/Weapons (all types including Inert Component Parts). When a 2 is indicated in the first position, then the special handling code must be determined from table 85 , part 1. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
