Product Details | SMALL ARMS CLEANING ROD

1005-01-560-9451 A cylindrical body used with a brush or cloth (swab), or other attachment, for cleaning the bore of a small arms firearm. See also STAFF SECTION, CLEANING, ARTILLERY. Excludes ROD SECTION, CLEANING, SMALL ARMS.

Part Alternates: 22CF9, 22CF-9, 1005-01-560-9451, 01-560-9451, 1005015609451, 015609451

Weapons | Guns, through 30mm

Supply Group (FSG) NSN Assign. NIIN
10 21 FEB 2008 01-560-9451

Drawings & Photos | NSN 1005-01-560-9451


Cross Reference | NSN 1005-01-560-9451

Part Number Cage Code Manufacturer
22CF-9 1PV41 DEWEY J MANUFACTURING COMPANY

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 1005-01-560-9451

Technical Data | NSN 1005-01-560-9451

Characteristic Specifications
SHAFT MATERIAL STEEL AND PLASTIC
HANDLE TYPE STRAIGHT, ROUND END
SECTION QUANTITY 2
CLEANING TIP TYPE SWAB HOLDER

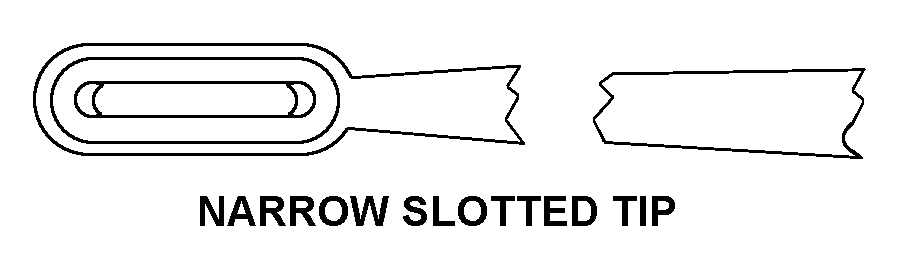

CLEANING TIP STYLE DESIGNATOR G6B NARROW SLOTTED TIP
CLEANING TIP ATTACHMENT METHOD THREADED
THREAD DESIGNATOR 0.164-32UNC
OUTSIDE DIAMETER 0.203 INCHES NOMINAL
OVERALL LENGTH 12.000 INCHES NOMINAL
SPECIAL FEATURES STEEL ROD COATED WITH NYLON; BALL BEARING ROTATING HANDLE; FEMALE THREAD; COMES WITH PART NO. 2245-L, SWAB HOLDER (PATCH LOOP)

Restrictions/Controls & Freight Information | NSN 1005-01-560-9451

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
