NSN 1005-01-517-4501 318, 01-517-4501, 015174501
Product Details | FRONT SIGHT
1005-01-517-4501 A metallic bead, blade, post, or the like, attached on the muzzle end of military carbines, pistols, revolvers, rifles, shotguns, and other similar items as a sighting device. It may be provided with a hood or protective wings.20410050018Guns, through 30mm10100026Guns, over 30mm up to 75mm10150024Guns, 75mm through 125mm10550033Launchers, Rocket and Pyrotechnic
Part Alternates: 318, 1005-01-517-4501, 01-517-4501, 1005015174501, 015174501
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 10 | 09 FEB 2004 | 01-517-4501 | 22227 ( SIGHT, FRONT ) |
Drawings & Photos | NSN 1005-01-517-4501
Demand History | NSN 1005-01-517-4501
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 318 | 2017-11-333 | 4 | AE |
| 318 | 2015-08-241 | 7 |
Cross Reference | NSN 1005-01-517-4501
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 318 | 1FXA6 | HEINIE SPECIALTY PRODCUTS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1005-01-517-4501
Technical Data | NSN 1005-01-517-4501
| Characteristic | Specifications |
|---|---|
| MATERIAL | ANY ACCEPTABLE |
| SURFACE TREATMENT | BLACK OXIDE |

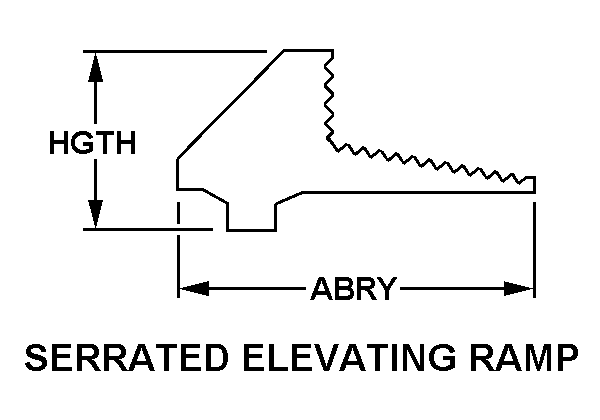

| STYLE DESIGNATOR | C2A SERRATED ELEVATING RAMP |
| HEIGHT | 0.250 INCHES NOMINAL |
| SPECIAL FEATURES | MATERIAL IS I2L14 |
Restrictions/Controls & Freight Information | NSN 1005-01-517-4501
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
