NSN 1005-01-477-1696 H50003188340, H5000-3-188-340, 01-477-1696
Product Details | TRIGGER GUARD
1005-01-477-1696 A protective device consisting of a curved framework, usually of metal, on a gun or LAUNCHER, ROCKET within which a TRIGGER is located.20410050018Guns, through 30mm10100026Guns, over 30mm up to 75mm10550033Launchers, Rocket and Pyrotechnic10950021Miscellaneous Weapons
Part Alternates: H50003188340, H5000-3-188-340, 1005-01-477-1696, 01-477-1696, 1005014771696, 014771696
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 10 | 01 AUG 2000 | 01-477-1696 | 22427 ( GUARD, TRIGGER ) |

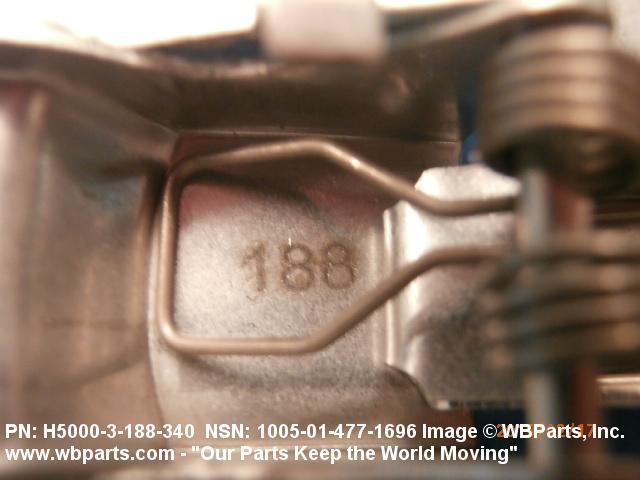

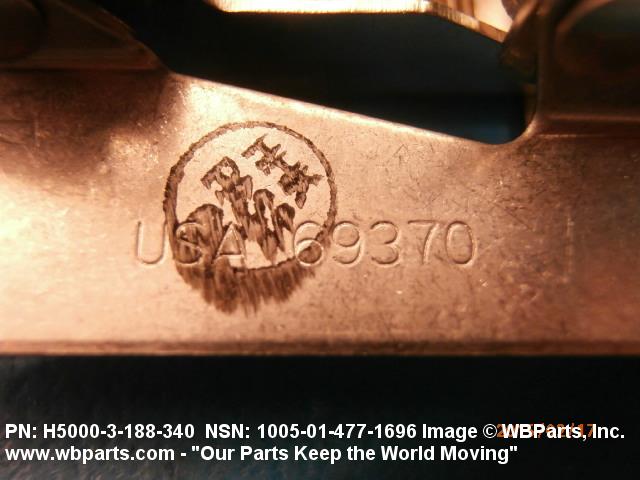

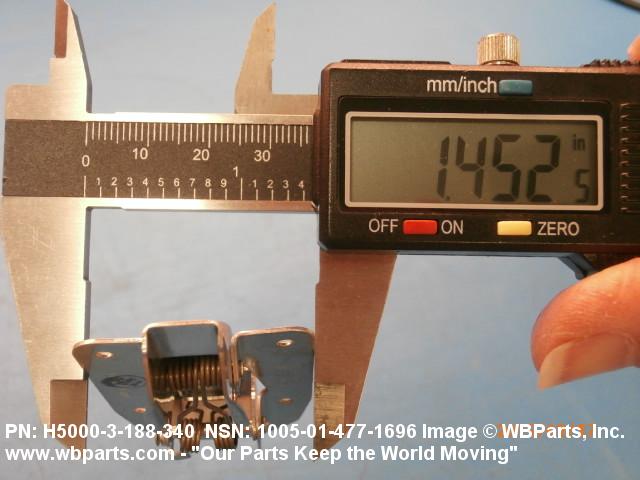

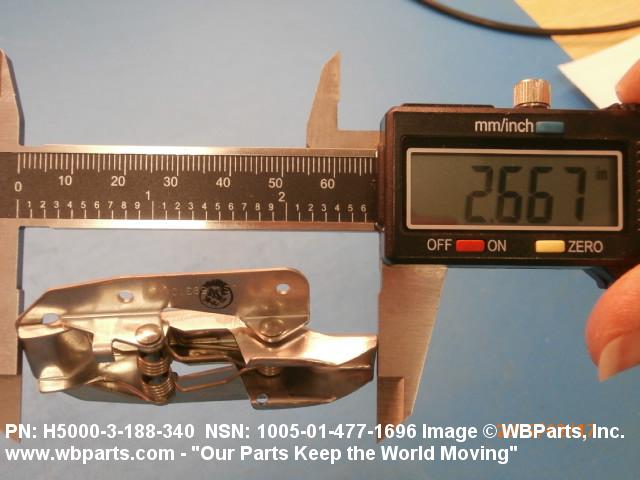

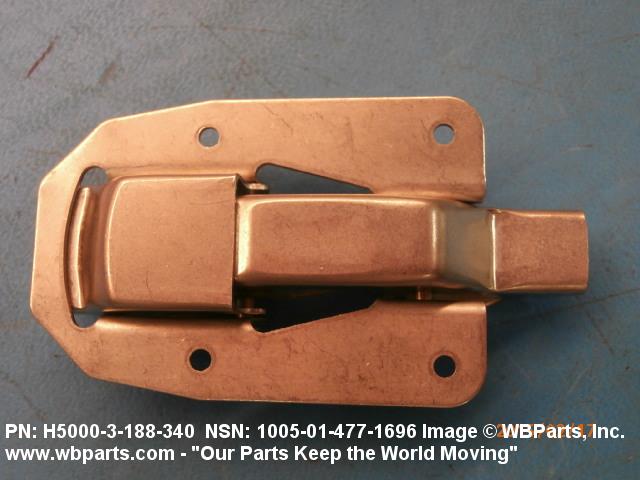

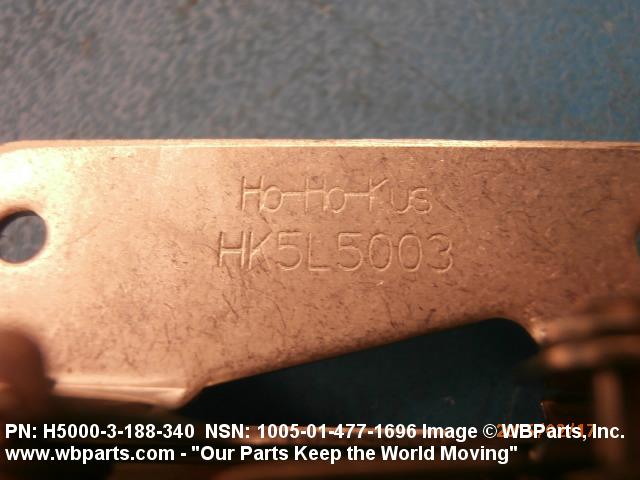

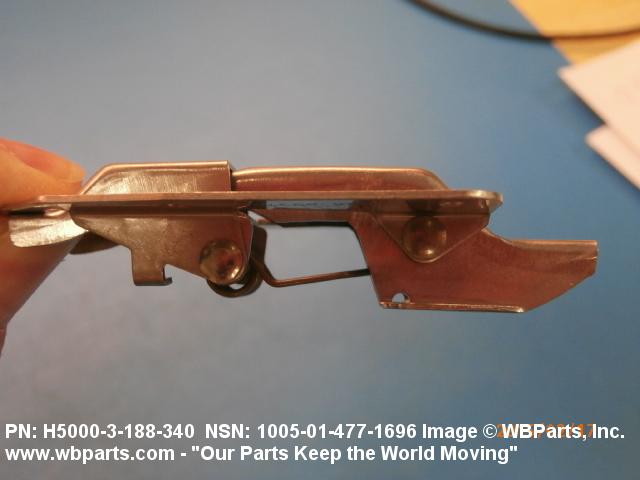

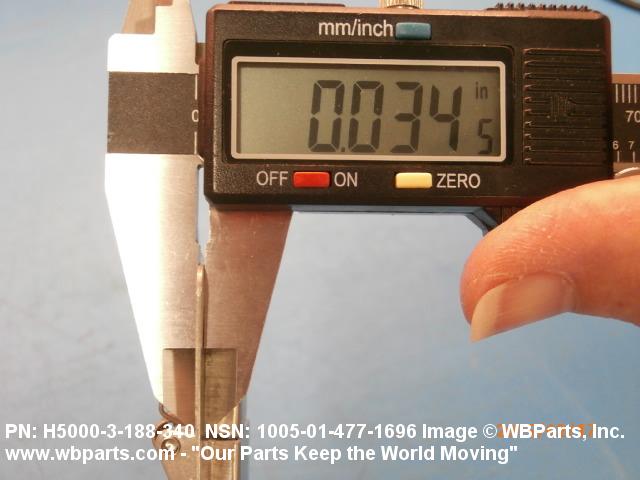

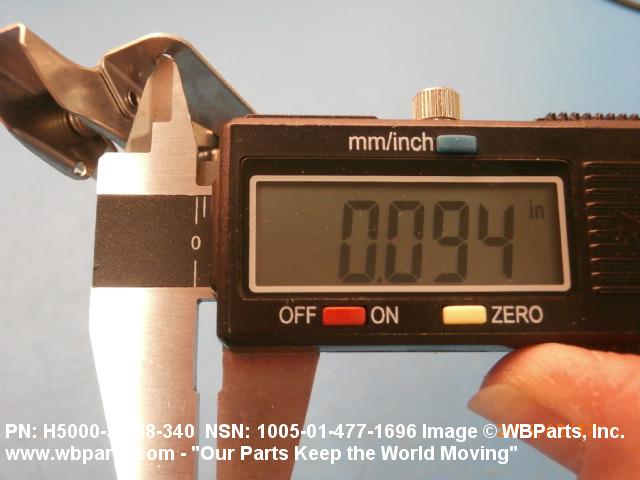

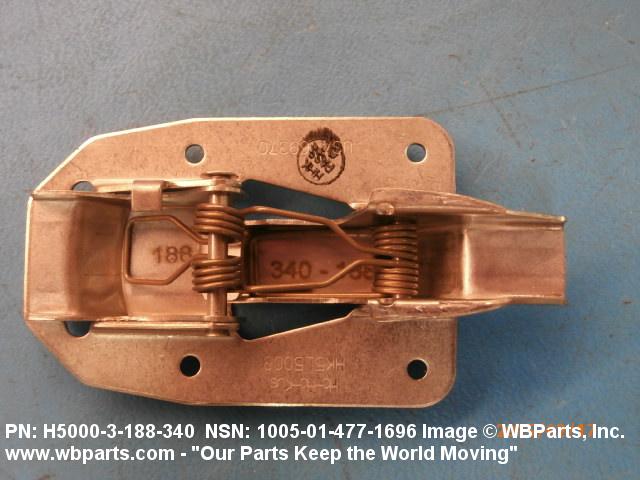

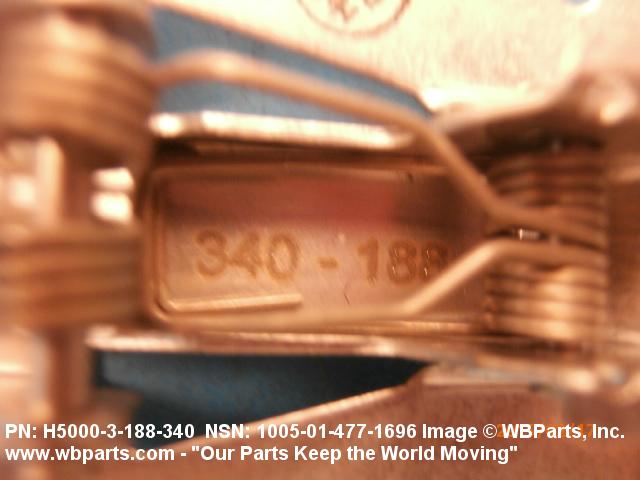

Drawings & Photos | NSN 1005-01-477-1696
Demand History | NSN 1005-01-477-1696
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| H5000-3-188-340 | 2024-11-319 | 113 | DIBBS |
| H5000-3-188-340 | 2024-10-281 | 113 | DIBBS |
| H5000-3-188-340 | 2023-11-320 | 113 | DIBBS |
| H5000-3-188-340 | 2023-10-278 | 113 | DIBBS |
| H50003188340 | 2023-06-173 | 42 | United States |
| H50003188340 | 2023-03-62 | 12 | IQ |
| 1005-01-477-1696 | 2020-07-207 | 1 | AE |
| 1005-01-477-1696 | 2015-02-43 | 49 | United States |
| H50003188340 | 2015-02-41 | 30 | United States |
| H50003188340 | 2011-03-73 | 200 | US |
Cross Reference | NSN 1005-01-477-1696
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| H5000-3-188-340 | 83014 | HARTWELL CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1005-01-477-1696
Technical Data | NSN 1005-01-477-1696
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, CORROSION RESISTING |

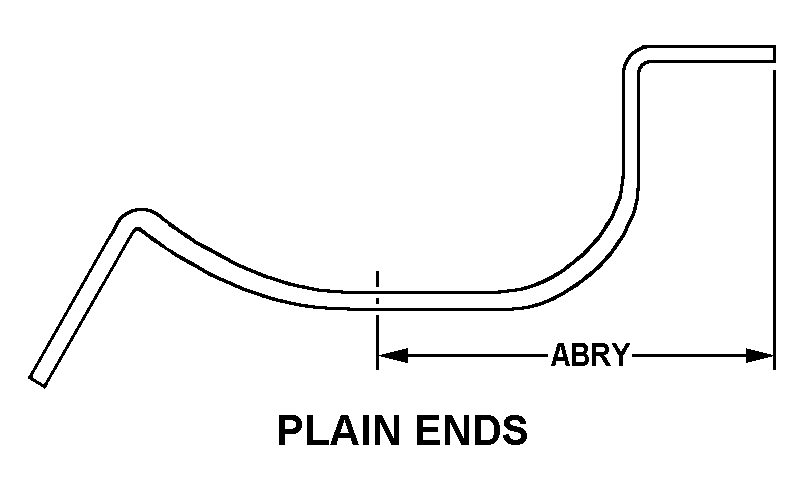

| STYLE DESIGNATOR | F5A PLAIN ENDS |
| LENGTH | 2.150 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | C130J |
Restrictions/Controls & Freight Information | NSN 1005-01-477-1696
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
