Product Details | AMMUNITION CHUTE

1005-01-386-1970 A chute through which ammunition is supplied to the gun or cannon preparatory to firing.20510050018Guns, through 30mm10100026Guns, over 30mm up to 75mm10150024Guns, 75mm through 125mm10250030Guns, over 150mm through 200mm10950021Miscellaneous Weapons

Part Alternates: S305065110, S305065-110, 352258909329, 1004803510, 10048035-10, 1005-01-386-1970, 01-386-1970, 1005013861970, 013861970

Weapons | Guns, through 30mm

Supply Group (FSG) NSN Assign. NIIN
10 28 JAN 1994 01-386-1970

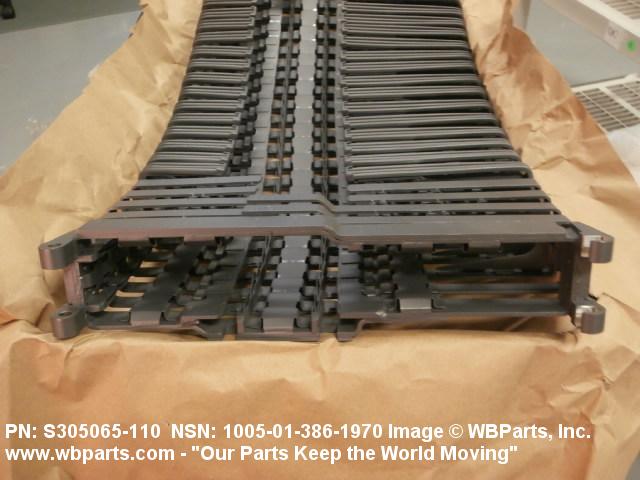

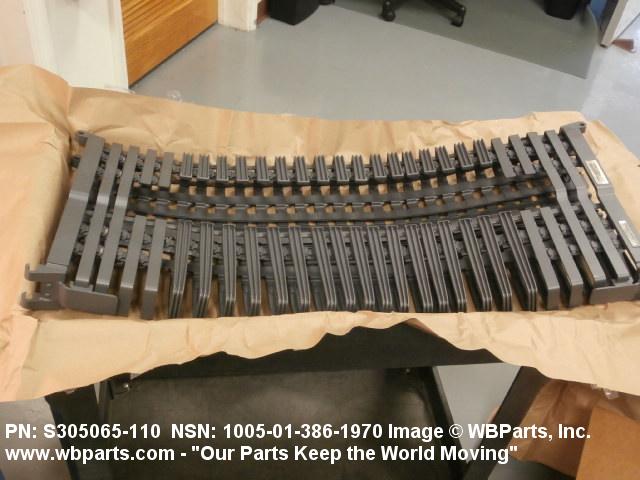

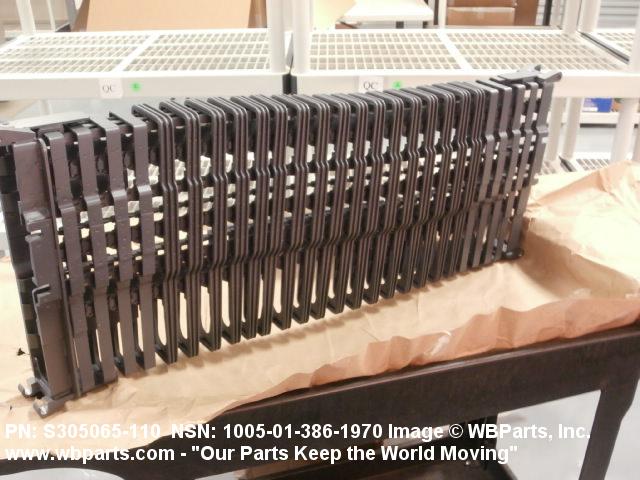

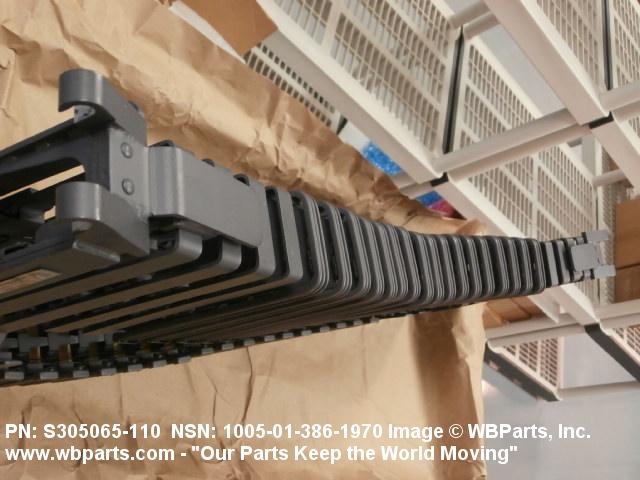

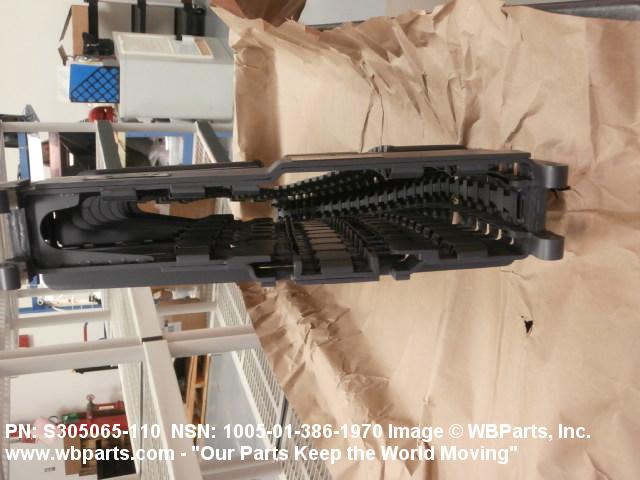

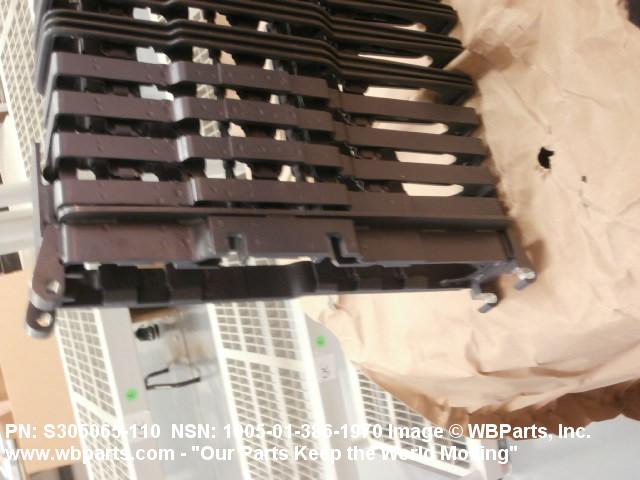

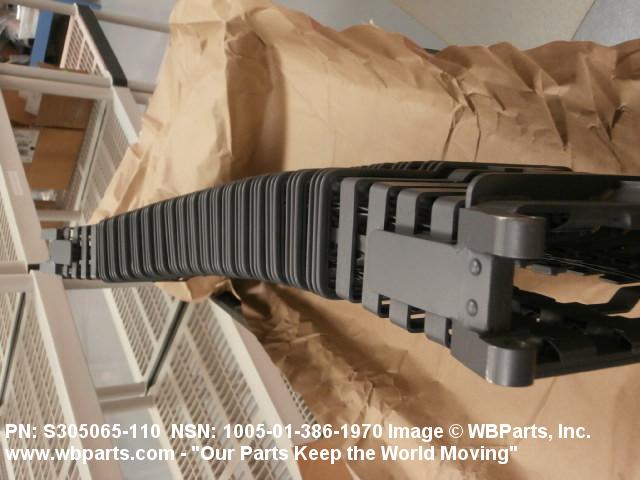

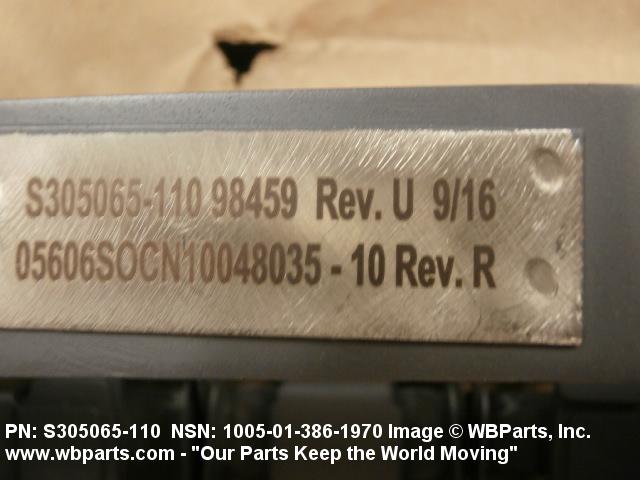

Drawings & Photos | NSN 1005-01-386-1970


Demand History | NSN 1005-01-386-1970

Part Number Request Date QTY Origin
1004803510 2016-04-112 1 Portugal

Cross Reference | NSN 1005-01-386-1970

Part Number Cage Code Manufacturer
10048035-10 05606 GENERAL DYNAMICS-OTS, INC. DBA GD-OTS (WILLISTON)
352258909329 H0203 THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS
S305065-110 98459 SAI INDUSTRIES DBA STANDARD ARMAMENT

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 1005-01-386-1970

Technical Data | NSN 1005-01-386-1970

Characteristic Specifications

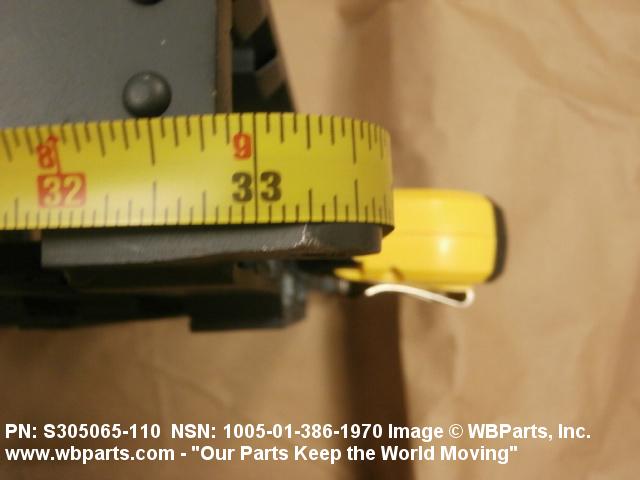

GENERAL CHARACTERISTICS ITEM DESCRIPTION EXTENDED CONDITION LENGHT MIN 32.600 IN AND MAX 36.600 IN; INCLUDES 17 CENTER SECTIONS
MANUFACTURERS CODE 05606
MFR SOURCE CONTROLLING REFERENCE 10048035-10

Restrictions/Controls & Freight Information | NSN 1005-01-386-1970

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:DMunitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.)
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
