NSN 1005-00-830-2535 5843, 00-830-2535, 220160000
Product Details | TRIGGER
1005-00-830-2535 An item/device, part of the firing mechanism, that actuates a firing pin or initiates an explosive train.20610050018Guns, through 30mm10100026Guns, over 30mm up to 75mm10150024Guns, 75mm through 125mm10250030Guns, over 150mm through 200mm10550033Launchers, Rocket and Pyrotechnic10950021Miscellaneous Weapons
Part Alternates: 5843, 1005-00-830-2535, 00-830-2535, 1005008302535, 220160000, 008302535
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 10 | 01 JAN 1963 | 00-830-2535 | 22223 ( TRIGGER ) |
Drawings & Photos | NSN 1005-00-830-2535
Demand History | NSN 1005-00-830-2535
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5843 | 2012-09-261 | 20 |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1005-00-830-2535
Technical Data | NSN 1005-00-830-2535
| Characteristic | Specifications |
|---|---|

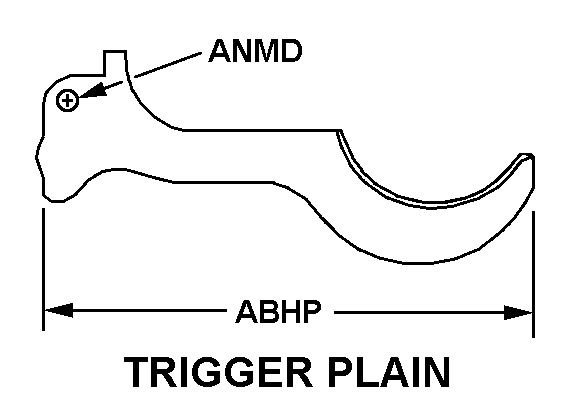

| STYLE DESIGNATOR | K13A TRIGGER PLAIN |
| III END ITEM IDENTIFICATION | 1005-830-2497 14 |
| III WEAPON SIZE DESIGNATION | .38 CALIBER, SPECIAL |
| III WEAPON MODEL NUMBER | 14 |
| III FSC APPLICATION DATA | REVOLVER,CAL..38,SPECIAL |
| MANUFACTURERS CODE | 55358 |
| DESIGN CONTROL REFERENCE | 220160000 |
Restrictions/Controls & Freight Information | NSN 1005-00-830-2535
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069300 | FIREARMS/PARTS NOI IN BOXES |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 682 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | 2 | Arms/Weapons (all types including Inert Component Parts). When a 2 is indicated in the first position, then the special handling code must be determined from table 85 , part 1. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
