NSN 1005-00-766-0915 7790737, 00-766-0915, 007660915
Product Details | SMALL ARMS CLEANING BRUSH
1005-00-766-0915 A brush specially designed for cleaning the bore, chamber, and the like, of a small arms weapon.
Part Alternates: 7790737, 1005-00-766-0915, 00-766-0915, 1005007660915, 007660915
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 10 | 01 JAN 1962 | 00-766-0915 | 22301 ( BRUSH, CLEANING, SMALL ARMS ) |
Drawings & Photos | NSN 1005-00-766-0915
Demand History | NSN 1005-00-766-0915
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1005-00-766-0915 | 2024-05-124 | 8 | Croatia |
| 1005-00-766-0915 | 2021-06-161 | 1 | US |
| 1005-00-766-0915 | 2020-09-253 | 1 | DIBBS-RFPs |
| 1005-00-766-0915 | 2020-01-29 | 20 | Croatia |
| 1005-00-766-0915 | 2019-01-03 | 6281 | DIBBS |
| 1005-00-766-0915 | 2018-12-347 | 2313 | DIBBS |
| 1005-00-766-0915 | 2018-12-345 | 9763 | DIBBS |
| 1005-00-766-0915 | 2018-06-179 | 2358 | DIBBS |
| 1005-00-766-0915 | 2018-04-116 | 2283 | DIBBS |
| 1005-00-766-0915 | 2018-04-107 | 2072 | DIBBS |
| 1005-00-766-0915 | 2017-05-121 | 2253 | DIBBS |
| 1005-00-766-0915 | 2017-04-109 | 2253 | DIBBS |
| 1005-00-766-0915 | 2017-02-37 | 3616 | DIBBS |
| 1005-00-766-0915 | 2017-01-26 | 3616 | DIBBS |
| 1005-00-766-0915 | 2016-06-179 | 7212 | DIBBS |
| 1005-00-766-0915 | 2016-06-168 | 7212 | DIBBS |
| 1005-00-766-0915 | 2016-06-154 | 3522 | DIBBS |
| 1005-00-766-0915 | 2016-03-91 | 3690 | DIBBS |
| 1005-00-766-0915 | 2016-03-84 | 2075 | DIBBS |
| 1005-00-766-0915 | 2016-03-73 | 2075 | DIBBS |
| 1005-00-766-0915 | 2015-12-351 | 2275 | DIBBS |
| 1005-00-766-0915 | 2015-12-340 | 2275 | DIBBS |
| 1005-00-766-0915 | 2015-06-174 | 60 | United States |
| 1005-00-766-0915 | 2014-11-328 | 2349 | DIBBS |
| 1005-00-766-0915 | 2014-11-315 | 2349 | DIBBS |
| 1005-00-766-0915 | 2014-10-303 | 2349 | DIBBS |
| 1005-00-766-0915 | 2014-10-302 | 393 | DIBBS |
| 1005-00-766-0915 | 2014-10-302 | 71 | DIBBS |
| 1005-00-766-0915 | 2014-10-287 | 2313 | DIBBS |
| 1005-00-766-0915 | 2014-10-279 | 4755 | DIBBS |
| 1005-00-766-0915 | 2014-10-279 | 3240 | DIBBS |
| 1005-00-766-0915 | 2014-09-267 | 3240 | DIBBS |
| 1005-00-766-0915 | 2014-08-223 | 6 | DIBBS |
| 1005-00-766-0915 | 2014-07-212 | 2444 | DIBBS |
| 1005-00-766-0915 | 2013-12-344 | 2208 | DIBBS |
| 1005-00-766-0915 | 2013-11-321 | 2208 | DIBBS |
| 1005-00-766-0915 | 2013-10-304 | 2208 | DIBBS |
| 1005-00-766-0915 | 2013-07-206 | 2254 | DIBBS |
| 1005-00-766-0915 | 2013-03-60 | 1951 | DIBBS |
| 1005-00-766-0915 | 2012-05-143 | 1316 | DIBBS |
| 1005-00-766-0915 | 2012-02-59 | 1160 | DIBBS |
| 1005-00-766-0915 | 2011-12-349 | 3256 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1005-00-766-0915
Related Products | NSN 1005-00-766-0915
Technical Data | NSN 1005-00-766-0915
| Characteristic | Specifications |
|---|---|

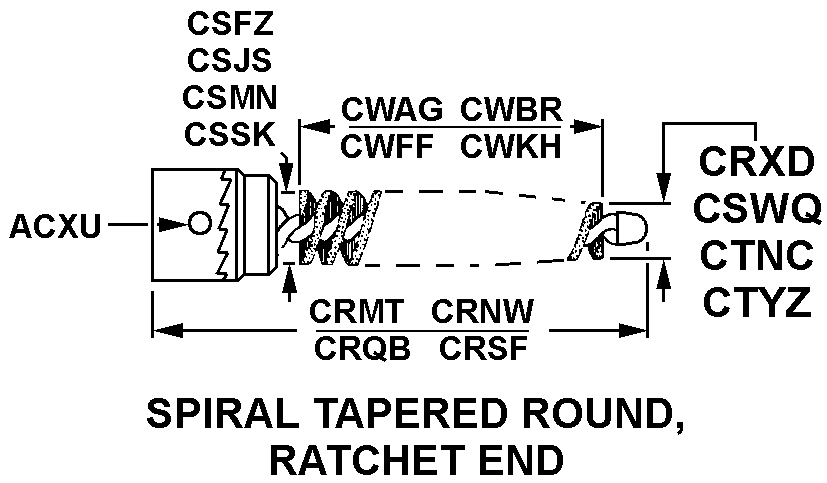

| STYLE DESIGNATOR | L6 SPIRAL TAPERED ROUND, RATCHET END |
| SINGLE BRUSH OVERALL LENGTH | 6.197 INCHES NOMINAL |
| SINGLE BRUSH DIAMETER OF BRUSH PART | 0.749 INCHES MINIMUM AND 0.763 INCHES MAXIMUM |
| SINGLE BRUSH LENGTH OF BRUSH PART | 3.750 INCHES NOMINAL |
| SINGLE BRUSH TAPERED BRUSH PART MINOR DIAMETER | 0.563 INCHES MINIMUM AND 0.577 INCHES MAXIMUM |
| PINHOLE DIAMETER | 0.330 INCHES MINIMUM AND 0.340 INCHES MAXIMUM |
| BRUSH PART MATERIAL | COPPER ALLOY, QQ-W-401-CANCELED |
| BRUSH SIZE DESIGNATION | CAL. 50 |
Restrictions/Controls & Freight Information | NSN 1005-00-766-0915
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 056940 | SUTURES SURGICAL |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 534 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | M | Medical supplies, equipment, samples records, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1005-00-766-0915
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 PG : Package |
