Product Details | SMALL ARMS CLEANING BRUSH

1005-00-556-4179 A brush specially designed for cleaning the bore, chamber, and the like, of a small arms weapon.

Part Alternates: 10055564179 , 5564179, 1005-00-556-4179, 00-556-4179, 1005005564179, 005564179

Weapons | Guns, through 30mm

Supply Group (FSG) NSN Assign. NIIN
10 01 JAN 1963 00-556-4179

Drawings & Photos | NSN 1005-00-556-4179


Cross Reference | NSN 1005-00-556-4179

Part Number Cage Code Manufacturer
5564179 19200 US ARMY ARDEC RDECOM
5564179 19205 SPRINGFIELD ARMORY

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 1005-00-556-4179

Technical Data | NSN 1005-00-556-4179

Characteristic Specifications

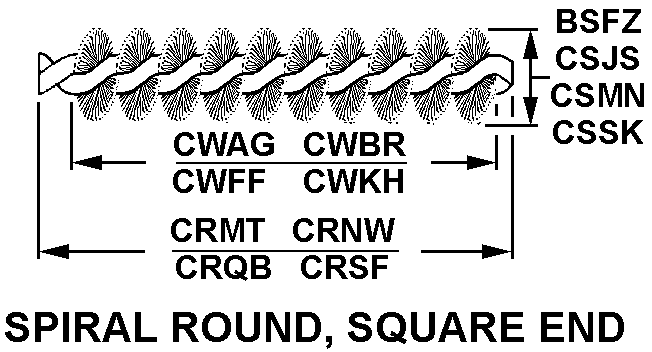

STYLE DESIGNATOR L2 SPIRAL ROUND, SQUARE END
SINGLE BRUSH OVERALL LENGTH 1.500 INCHES MINIMUM AND 1.562 INCHES MAXIMUM
SINGLE BRUSH DIAMETER OF BRUSH PART 0.255 INCHES MINIMUM AND 0.265 INCHES MAXIMUM
SINGLE BRUSH LENGTH OF BRUSH PART 1.312 INCHES NOMINAL
BRUSH PART MATERIAL COPPER ALLOY, QQ-W-401-CANCELED
BRUSH MODEL NUMBER M23
BRUSH SIZE DESIGNATION CAL. 22

Restrictions/Controls & Freight Information | NSN 1005-00-556-4179

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 000000 NO NMFC FREIGHT DESCRIPTION
Less than car load rating J 100.2
Less than truck load rating Z No Rating
Water commodity Code 748 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 1005-00-556-4179

Category Code Description
Cognizance Codes9CNavy-owned stocks of defense construction material
Naval Inventory Control Point, Mechanicsburg
Source of SupplyS9CDefense Supply Center Columbus
Columbus, OH 43215
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
H
EA : Each
