NSN 1005-00-502-2210 5022210, 00-502-2210, 005022210
Product Details | SMALL ARMS SLING SWIVEL
1005-00-502-2210 An elongated D-shaped hinged device mounted on the underside of the stock and fore-end of a shoulder fired weapon to accommodate a SLING, SMALL ARMS.
Part Alternates: 5022210, 1005-00-502-2210, 00-502-2210, 1005005022210, 005022210
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
10 | 01 JAN 1963 | 00-502-2210 | 31984 ( SWIVEL, SLING, SMALL ARMS ) |
Cross Reference | NSN 1005-00-502-2210
Part Number | Cage Code | Manufacturer |
---|---|---|
5022210 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 1005-00-502-2210
Related Products | NSN 1005-00-502-2210
Technical Data | NSN 1005-00-502-2210
Characteristic | Specifications |
---|---|
MATERIAL | STEEL |

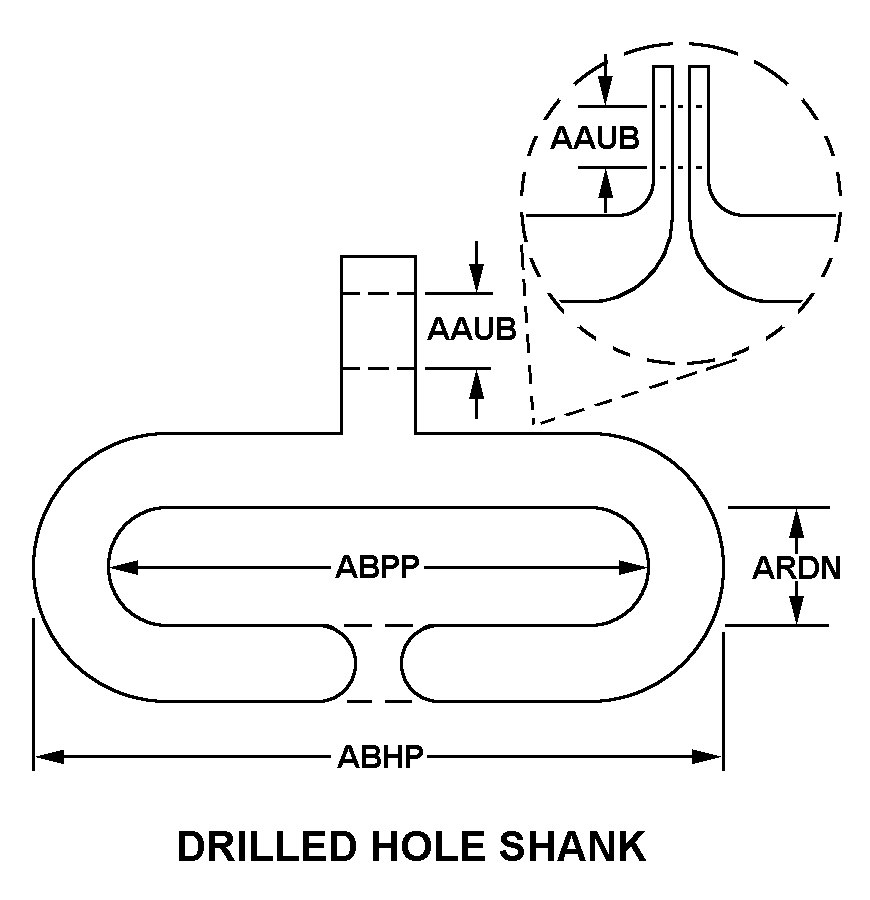

STYLE DESIGNATOR | A1 DRILLED HOLE SHANK |
HOLE DIAMETER | 0.196 INCHES NOMINAL |
OVERALL LENGTH | 1.714 INCHES MINIMUM AND 1.718 INCHES MAXIMUM |
OPENING WIDTH | 1.375 INCHES NOMINAL |
OPENING HEIGHT | 0.312 INCHES NOMINAL |
III WEAPON SIZE DESIGNATION | .30 CALIBER |
MANUFACTURERS CODE | 19204 |
DESIGN CONTROL REFERENCE | 5022210 |
Restrictions/Controls & Freight Information | NSN 1005-00-502-2210
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
No Freight Information |
