NSN 5325-00-754-1976 MS21209C0615, MS21209-C0615, MS21209C615

Product Details | SCREW THREAD INSERT

5325-00-754-1976 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE

Part Alternates: MS21209C0615, MS21209-C0615, MS21209C615, MS21209-C6-15, MS21209C6-15, MS21290C615, MS21290-C6-15, NAS21209C615, NASM21209C615, LA405-41110 ITEM 20, LA40541110ITEM20, 6A589-41350 ITEM 18, 6A58941350ITEM18, 7583-4105 ITEM 30, 75834105ITEM30, 7714903P13, 9059842, 90722505, 907225-05, 90770508, 907705-08, 209C60562, 209C6-0562, 35856CN563, 3585-6CN563, 35856CN916, 3585-6CN9-16, 35856CNX562, 3585-6CNX562, 35856CNX563, 3585-6CNX563, 35856CNX916, 3585-6CNX9-16, 3708006B, 37080-06B, 3792-41605 ITEM 34, 379241605ITEM34, 5325-00-754-1976, 00-754-1976, 5340007541976, 5325007541976, 007541976

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1960	00-754-1976	11444 ( INSERT, SCREW THREAD )

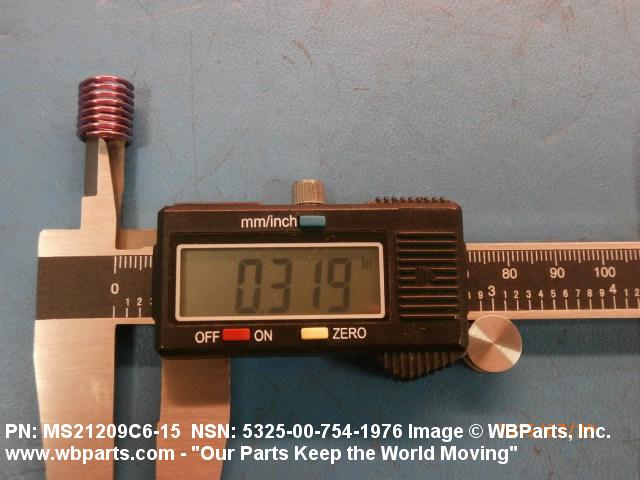

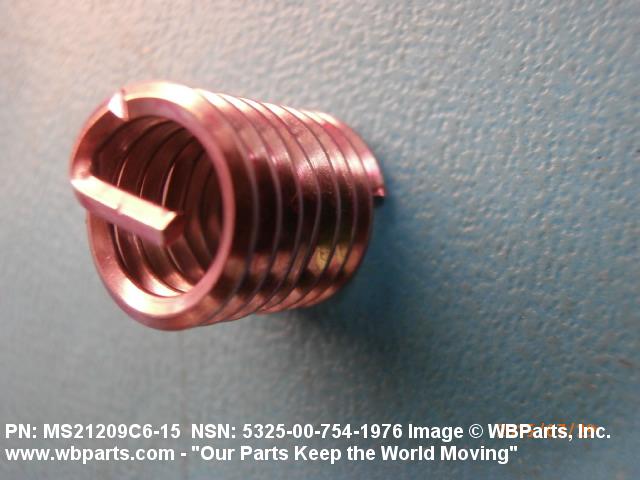

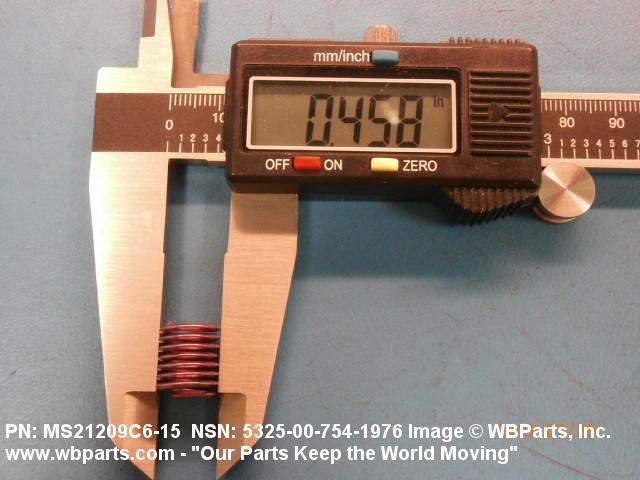

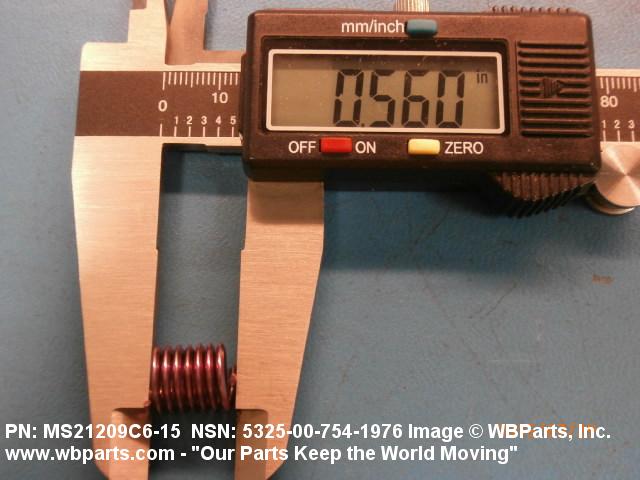

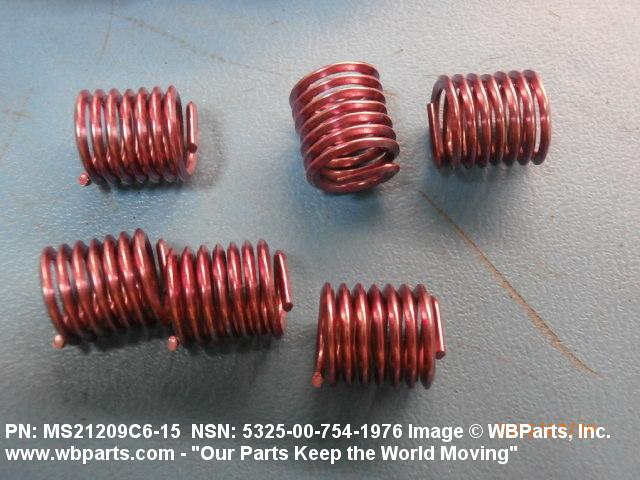

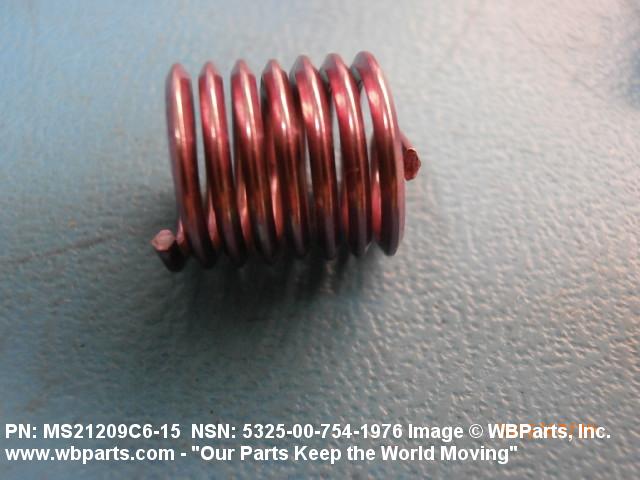

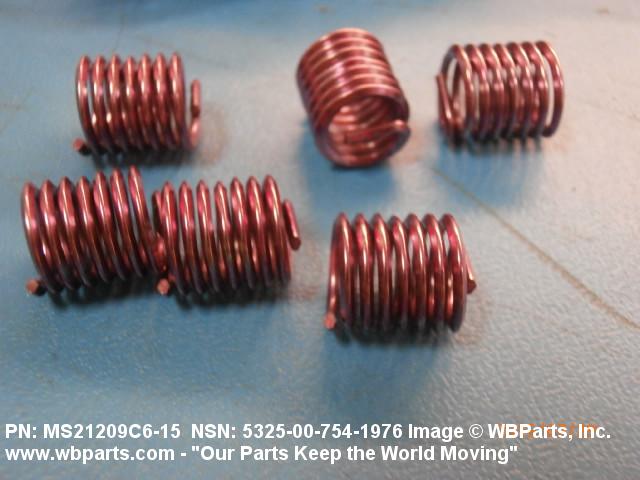

Drawings & Photos | NSN 5325-00-754-1976

Part Number	Request Date	QTY	Origin
MS21209C0615	2024-09-260	7000	Japan
MS21209C0615	2023-11-318	272	LT
MS21209C0615	2023-11-318	340	LT
MS21209C0615	2023-03-72	30	United States
MS21209C0615	2021-11-314	200	United States
MS21209C0615	2021-01-15	6	US
MS21209C0615	2019-12-345	100	IN
MS21209C0615	2019-09-249	50	CN
MS21209C615	2019-04-91	4	India
MS21209C0615	2019-03-72	78	United States
MS21209C0615	2017-11-307	300	UK
5325-00-754-1976	2017-04-115	10	US
MS21209C0615	2017-03-89	711	US
MS21209C0615	2017-01-23	160	United States
5325-00-754-1976	2015-11-322	800	US
MS21209C0615	2015-08-225	12	US
MS21209C0615	2015-07-208	6	ZA
907225-05	2015-07-182	62	UK
5325-00-754-1976	2015-06-168	6	United States
5325-00-754-1976	2015-01-12	4000	US
MS21209C0615	2014-08-225	100	United States
5325-00-754-1976	2014-05-132	360	US
MS21209C0615	2014-03-64	1	United States
MS21209C0615	2014-02-58	100	UM
MS21209C615	2013-12-354	40	United States
MS21209C615	2013-08-220	4	India
MS21209C0615	2013-05-128	16	US
5325-00-754-1976	2013-03-71	11677	DIBBS
MS21209C0615	2013-02-44	200	United States
MS21209C0615	2012-12-345	400	China
MS21209C615	2012-08-214	25	US
MS21209C615	2012-08-214	50	US
MS21209C615	2012-07-202	40	United States
MS21209C0615	2012-06-163	20000	CN
MS21209C0615	2012-05-124	100	IN
MS21209C0615	2012-01-17	100	MX
MS21209C0615	2012-01-04	1540	United States
MS21209C0615	2011-11-318	10	United States
MS21209C0615	2011-11-318	12	United States
MS21209C0615	2011-11-318	12	United States
MS21209C0615	2011-11-313	100	United States
MS21209C615	2011-11-312	10	Canada
MS21209C0615	2011-11-308	100	United States
MS21209C0615	2011-09-255	64	United States
MS21209-C0615	2011-07-192	3285	US
MS21209C0615	2011-07-189	8640	US
MS21209C0615	2011-07-187	3000	United States
NASM21209C615	2011-06-178	288	United States
MS21209C0615	2011-06-159	500	United States
MS21209C0615	2011-06-159	2500	United States
MS21209C0615	2011-03-61	1100	US
MS21209C615	2010-09-273	100	US
MS21209C0615	2010-08-238	120	US
MS21209C615	2010-02-35	4	US
MS21209C0615	2009-07-208	35	US
5325-00-754-1976	2009-04-120	60	US
5325-00-754-1976	2009-04-93	1000	Turkey
MS21209C0615	2008-06-165	200	US
5325-00-754-1976	2008-01-13	300	IL
5325-00-754-1976	2006-12-335	100	US
5325-00-754-1976	2006-11-334	100	US

Cross Reference | NSN 5325-00-754-1976

Part Number	Cage Code	Manufacturer
209C6-0562	12360	ALBANY FASTENERS PAWTUCKET FASTENERS DIV
3585-6CN563	01556	EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES
3585-6CN9-16	01556	EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES
3585-6CN9-16	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
3585-6CNX562	26344	NEW HAVEN MFG CORP
3585-6CNX563	01556	EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES
3585-6CNX9-16	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
37080-06B	07270	MOOG INC.
3792-41605 ITEM 34	07270	MOOG INC.
5340007541976	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
6A589-41350 ITEM 18	07270	MOOG INC.
7583-4105 ITEM 30	07270	MOOG INC.
7714903P13	24446	GENERAL ELECTRIC CO
7714903P13	97993	GENERAL DYNAMICS DEFENSE SYSTEMS INC.
9059842	18876	U S ARMY AVIATION AND MISSILE COMMAND
907225-05	90536	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
907705-08	03956	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS
907705-08	90536	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
LA405-41110 ITEM 20	07270	MOOG INC.
MS21209-C0615	81873	WOODWARD HRT, INC.
MS21209-C6-15	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS21209C6-15	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21209C615	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21290-C6-15	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NAS21209C615	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NASM21209C615	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-754-1976

Compare

Related Products | NSN 5325-00-754-1976

5325-00-754-1988, 5325-00-754-2111, 5325-00-754-2112, 5325-00-754-2113, 5325-00-754-2130

Technical Data | NSN 5325-00-754-1976

Characteristic	Specifications
MATERIAL	STEEL CORROSION RESISTING OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
STYLE DESIGNATOR	H1 COIL
LENGTH	0.563 INCHES NOMINAL
INSERT SIZE	0.452 IN. MIN,0.472 IN. MAX FREE OD
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD SIZE	0.375 INCHES
THREAD QUANTITY PER INCH	16
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.562 INCHES NOMINAL
FEATURES PROVIDED	COILED WIRE
SPECIAL FEATURES	STAGGERED COILS' GRIP LOCATION
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS21209C6-15

Restrictions/Controls & Freight Information | NSN 5325-00-754-1976

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5325-00-754-1976

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
