NSN 5310-01-497-4169 MS210623, MS21062-3, 01-497-4169
Product Details | PLATE SELF-LOCKING NUT
5310-01-497-4169 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MS210623, MS21062-3, 5310-01-497-4169, 01-497-4169, 5310014974169, 014974169
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 MAY 2002 | 01-497-4169 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

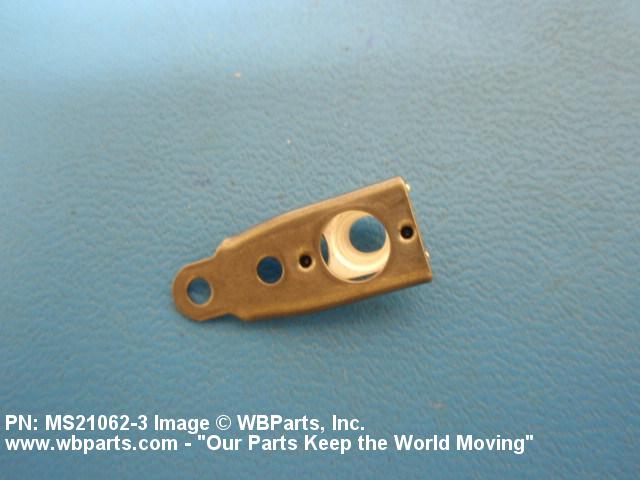

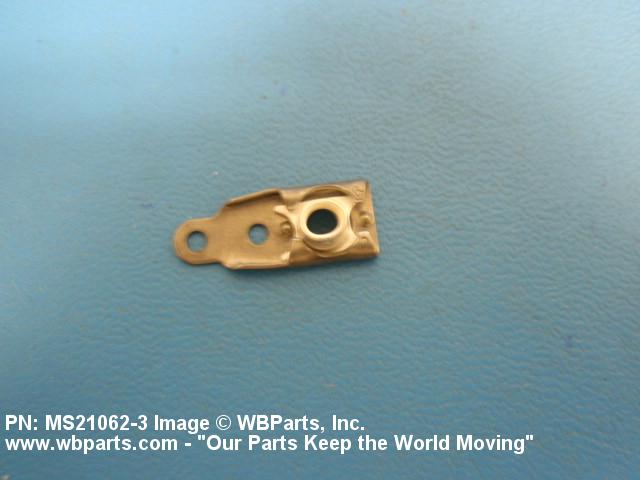

Drawings & Photos | NSN 5310-01-497-4169
Demand History | NSN 5310-01-497-4169
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS210623 | 2024-09-260 | 150 | Japan |
| MS210623 | 2022-10-290 | 30 | United States |
| MS210623 | 2021-08-229 | 50 | Canada |
| MS210623 | 2021-08-223 | 50 | Canada |
| 5310-01-497-4169 | 2018-01-10 | 42 | US |
| MS210623 | 2016-05-124 | 42 | US |
| MS210623 | 2009-05-139 | 20 | Canada |
| MS210623 | 2009-05-139 | 100 | Canada |
| MS210623 | 2009-03-72 | 4 | United States |
| MS210623 | 2008-11-309 | 20 | United States |
| MS210623 | 2008-02-35 | 100 | US |
Cross Reference | NSN 5310-01-497-4169
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS21062-3 | 1E0F1 | ROLLS ROYCE CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-497-4169
Related Products | NSN 5310-01-497-4169
Technical Data | NSN 5310-01-497-4169
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| HARDNESS RATING | NOT RATED |
| TEMP RATING | NOT RATED |
| SPECIAL FEATURES | DIMENSIONS IN INCHES: HEIGHT 1.051, WIDTH .290 TO .422, MAXIMUM THICKNESS .250; ITEM HAS ONE LARGE HOLE OF .250 TO .270 INCHES DIAMETER, AND 2 SMALLER HOLES OF .089 TO .103 INCHES DIAMETER. LARGER HOLE IS ON THE BOTTOM WITH THE SMALLER ONES STACKED ON TOP (EQUAL SPACED); THE ONE END OF THE PLATE IS BEVELED AND ROUNDED, OTHER END IS SQUARE |
| CRITICALITY CODE JUSTIFICATION | AGAV |
| III END ITEM IDENTIFICATION | KC-130J; KC-13J |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | NUT,SELF-LOCKING,PLATE,ONE LUG,FLOATING,LOW HEIGHT,CRES 125 KSI FTU, 450 DEG AND 800 DEG F |
Restrictions/Controls & Freight Information | NSN 5310-01-497-4169
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5310-01-497-4169
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 0Q | Contractor supported items for NAVICP PHIL Consumables (1R) Naval Inventory Control Point, Philadelphia |
| Special Material ID | KF | KC130JAIRCRAFT ENGINEAE2100D3 |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | M | Medium Demand Velocity Items (consumables) |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Y EA : Each |
