NSN 5310-01-356-5102 MS21075L03N, MS21075L3, MS21075L3N

Product Details | PLATE SELF-LOCKING NUT

5310-01-356-5102 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS21075L03N, MS21075L3, MS21075L3N, 5310-01-356-5102, 01-356-5102, 5310013565102, 013565102

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	05 APR 1992	01-356-5102	05280 ( NUT, SELF-LOCKING, PLATE )

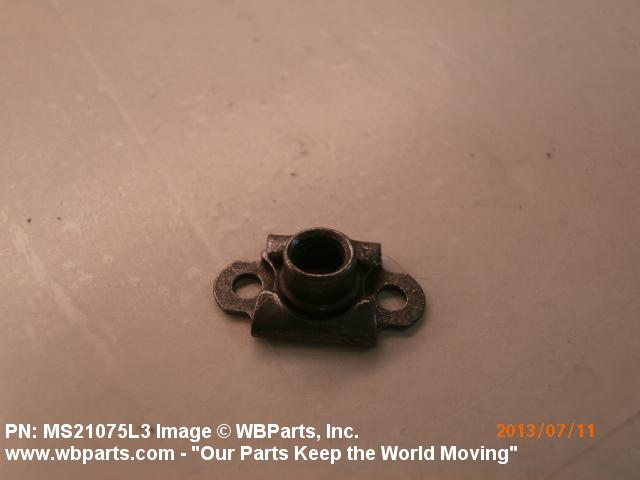

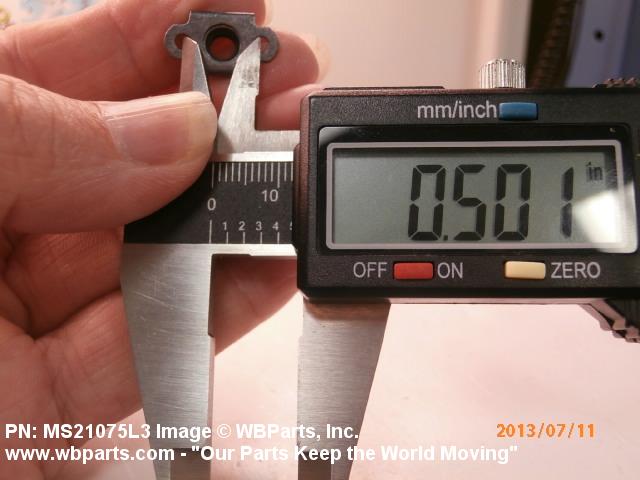

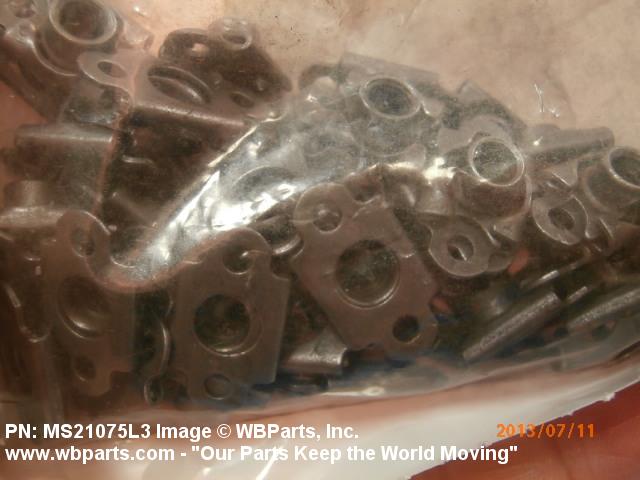

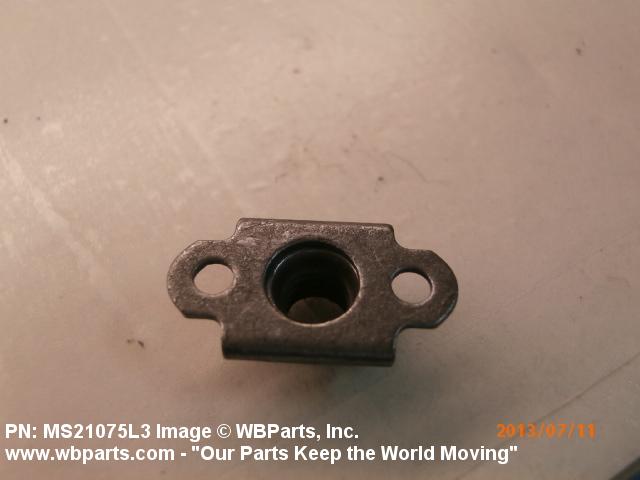

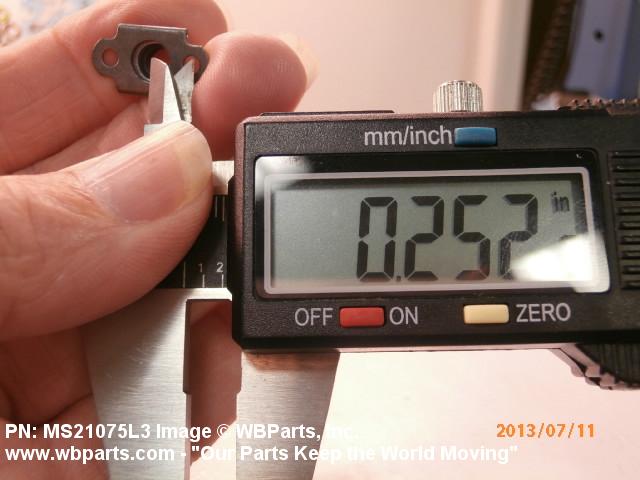

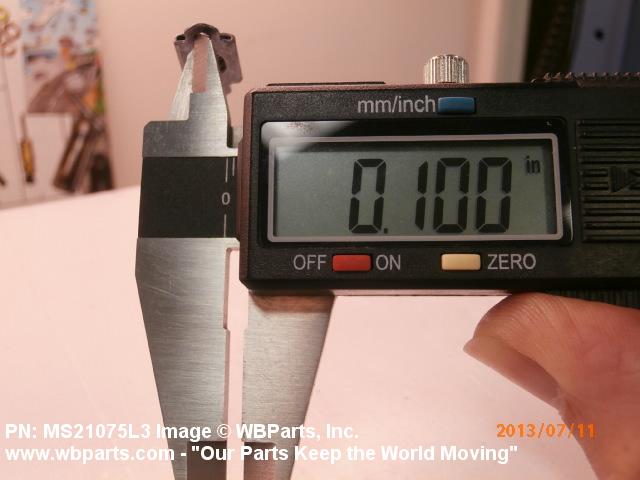

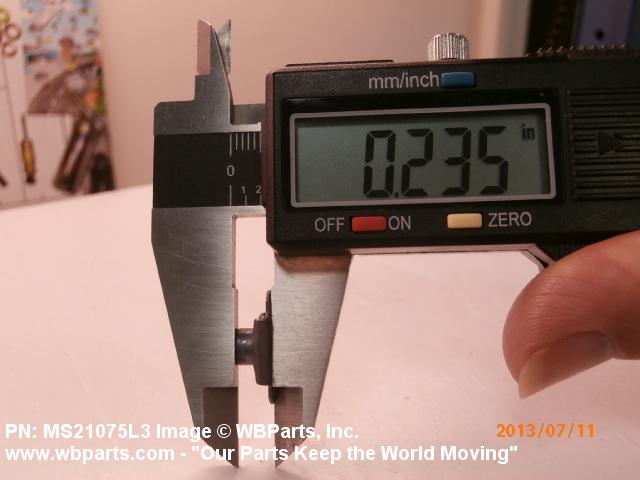

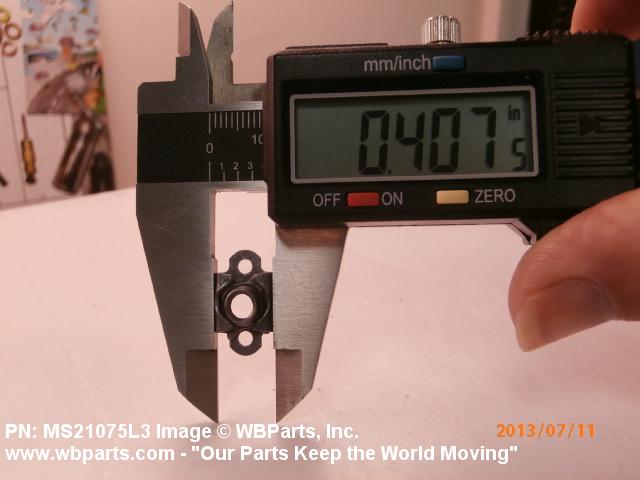

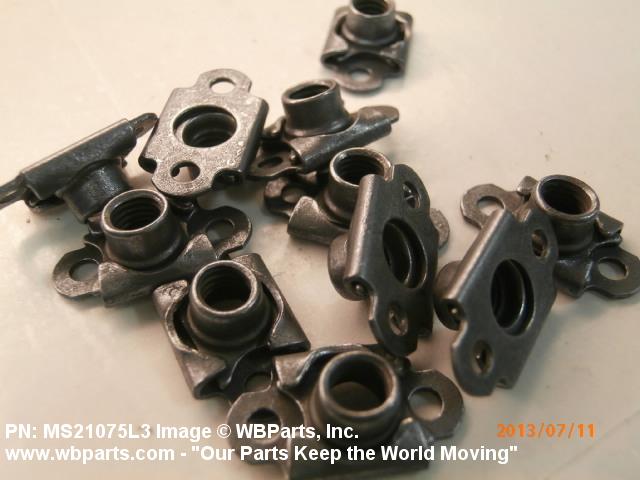

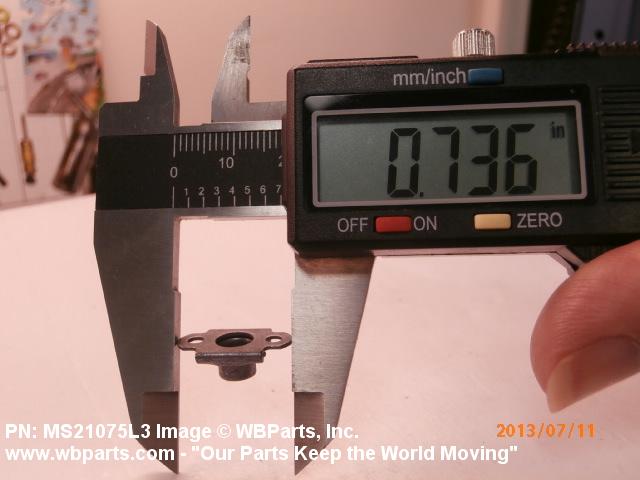

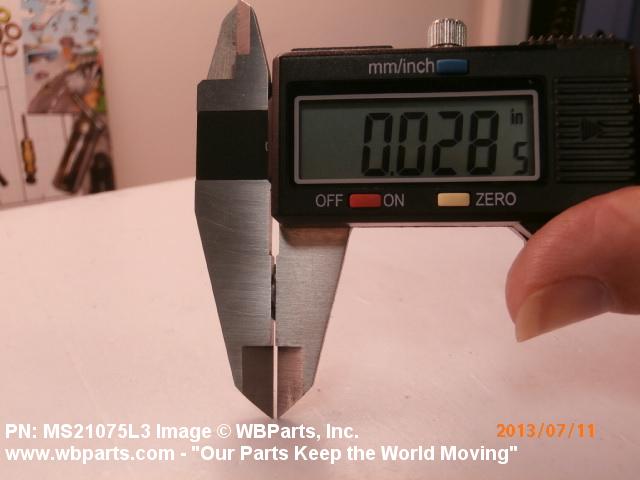

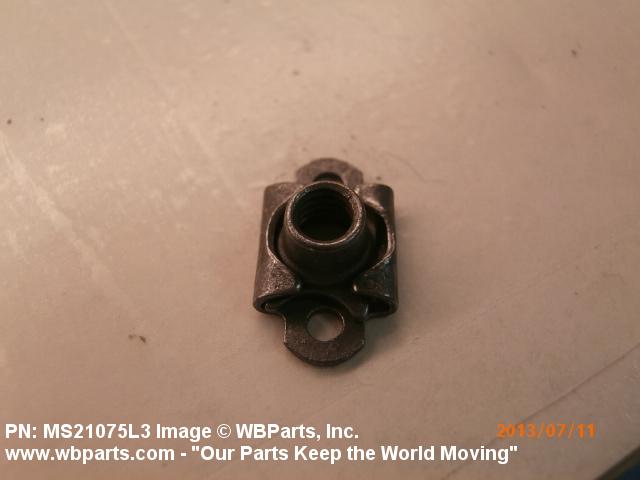

Drawings & Photos | NSN 5310-01-356-5102

Part Number	Request Date	QTY	Origin
MS21075L3N	2025-03-84	24	Malaysia
MS21075L3N	2025-03-83	100	us
MS21075L3N	2025-03-80	200	IN
MS21075L3N	2025-03-62	25	CA
MS21075L3N	2025-02-52	40	United States
MS21075L3N	2025-02-48	200	US
MS21075L3	2025-01-21	6900	Korea
MS21075L3	2024-12-354	1584	US
MS21075L3	2024-11-330	27	United States
MS21075L3	2024-11-324	12	United States
MS21075L3N	2024-10-295	200	AE
MS21075L3N	2024-09-263	1344	US
MS21075L3	2024-05-129	100	US
MS21075L3	2024-04-117	100	United States
MS21075L3N	2024-03-79	100	TR
MS21075L3N	2024-02-53	3	US
MS21075L3N	2024-02-51	3	US
MS21075L3	2024-02-43	80	US
MS21075L3N	2024-02-37	1	us
MS21075L3N	2024-01-25	22	United States
MS21075L3N	2023-10-293	20	United States
5310-01-356-5102	2023-10-275	6000	US
MS21075L3N	2023-09-262	20	United States
5310-01-356-5102	2023-09-255	4199	DIBBS
MS21075L3	2023-08-222	15	United States
MS21075L3N	2023-03-72	100	US
MS21075L3N	2023-02-39	100	Taiwan
MS21075L3N	2022-12-347	42	United States
MS21075L3N	2022-12-347	144	United States
MS21075L3N	2022-12-342	12	United States
MS21075L3	2022-10-276	3740	TR
MS21075L3	2022-09-265	1200	United States
MS21075L3N	2022-09-265	24	United States
MS21075L3N	2022-09-265	800	United States
MS21075L3N	2022-09-252	322	United States
MS21075L3N	2022-09-252	458	United States
MS21075L3	2022-05-151	200	United States
5310-01-356-5102	2022-03-80	200	US
MS21075L3	2022-02-48	200	United States
MS21075L3N	2021-08-238	400	US
MS21075L3N	2021-08-232	150	United States
MS21075L3	2021-07-190	14	United States
MS21075L3N	2021-05-133	420	US
MS21075L3N	2021-05-133	2650	US
MS21075L3	2020-11-308	1	Taiwan
MS21075L3N	2020-10-300	800	US
MS21075L3	2020-09-269	50	United States
MS21075L3N	2020-09-265	10	US
MS21075L3	2020-09-260	4	United States
MS21075L3	2020-05-143	800	TW
MS21075L3	2020-05-139	75	US
MS21075L3N	2020-01-07	200	Taiwan
5310-01-356-5102	2019-12-336	3000	US
MS21075L3N	2019-10-301	16	United States
5310-01-356-5102	2019-10-283	10	Canada
MS21075L3N	2019-07-199	1044	United States
MS21075L3	2019-02-52	30	United States
MS21075L3N	2018-12-345	2	United States
MS21075L3N	2018-12-345	4	United States
MS21075L3N	2018-12-345	12	United States
MS21075L3N	2018-12-345	20	United States
MS21075L3N	2018-11-318	300	Taiwan
MS21075L3N	2018-09-271	25	US
MS21075L3	2018-08-240	816	US
MS21075L3N	2018-06-156	2	United States
5310-01-356-5102	2018-03-88	12	US
MS21075L3	2018-01-09	1000	United States
MS21075L3N	2017-05-129	50	United States
MS21075L3N	2017-04-116	40	United States
MS21075L3	2017-01-19	4	United States
MS21075L3	2016-12-348	140	US
MS21075L3N	2016-12-348	1232	US
MS21075L3	2016-12-344	12	United States
MS21075L3	2016-12-344	25	United States
MS21075L3	2016-04-118	100	Thailand
MS21075L3N	2016-04-117	130	United States
MS21075L3	2016-02-42	108	Turkey
MS21075L3	2016-02-42	352	Turkey
MS21075L3N	2016-02-42	528	Turkey
MS21075L3N	2016-01-21	100	United States
MS21075L3	2015-10-286	40	United States
MS21075L3	2015-09-259	25	United States
MS21075L3N	2015-09-259	2	United States
MS21075L3N	2015-08-239	200	US
MS21075L3	2015-08-226	644	United States
MS21075L3N	2015-08-217	40	United States
MS21075L3N	2015-06-170	1600	United States
MS21075L3	2015-04-101	65	US
MS21075L3N	2015-03-71	70000	TH
MS21075L3	2015-03-65	100	us
MS21075L3N	2015-01-21	700	AE
MS21075L3N	2014-10-296	1200	Israel
MS21075L3	2014-10-295	160	China
MS21075L3	2014-10-287	1500	Israel
MS21075L3N	2014-10-274	1800	South Korea
MS21075L3N	2014-10-274	12	South Korea
5310-01-356-5102	2014-09-253	35364	DIBBS
MS21075L3	2014-07-202	530	Spain
MS21075L3	2014-07-196	530	Spain
MS21075L3N	2014-06-168	30	United States
MS21075L3N	2014-06-157	8	United States
MS21075L3	2014-04-113	500	US
MS21075L3N	2014-04-99	380	Taiwan
5310-01-356-5102	2014-04-91	340	TW
MS21075L3N	2014-03-80	25	US
MS21075L3	2014-02-56	60000	US
MS21075L3N	2014-02-56	90	US
MS21075L3N	2014-01-27	1500	ES
MS21075L3N	2014-01-16	252	United States
MS21075L3	2014-01-10	100	us
MS21075L3	2014-01-03	115	US
MS21075L3N	2013-11-316	80	China
MS21075L3N	2013-11-316	100	China
MS21075L3	2013-10-298	12	United States
MS21075L3N	2013-10-295	2	United States
MS21075L3N	2013-09-267	84	US
MS21075L3	2013-09-266	162	United States
MS21075L3	2013-08-239	100	TR
MS21075L3	2013-08-239	200	TR
MS21075L3	2013-08-235	4	MX
MS21075L3N	2013-08-219	3	US
MS21075L3N	2013-08-219	4	US
MS21075L3N	2013-08-219	8	US
MS21075L3	2013-08-219	850	United States
MS21075L3	2013-08-213	118	United States
MS21075L3N	2013-08-213	55	US
MS21075L3	2013-07-198	250	US
MS21075L3	2013-07-190	560	United States
MS21075L3N	2013-07-182	20	US
5310-01-356-5102	2013-05-134	130	UK
MS21075L3N	2013-05-134	50	CZ
MS21075L3N	2013-04-115	50	us
MS21075L3	2013-04-99	117	US
MS21075L3N	2013-04-99	200	US
MS21075L3N	2013-04-92	625	United States
MS21075L3	2013-03-63	50	United States
MS21075L3N	2013-02-56	80	US
MS21075L3	2013-02-44	50	United States
5310-01-356-5102	2013-01-29	100	US
MS21075L3N	2013-01-22	1600	United States
MS21075L3	2013-01-07	111	IN
MS21075L3N	2013-01-04	20	Indonesia
MS21075L3	2012-11-311	93	Taiwan
MS21075L3	2012-10-283	10	US
MS21075L3	2012-10-278	111	IN
MS21075L3N	2012-09-258	100	Taiwan
MS21075L3N	2012-09-257	90	Taiwan
MS21075L3N	2012-08-237	280	United States
MS21075L3N	2012-08-237	560	United States
MS21075L3N	2012-08-233	1	US
MS21075L3N	2012-08-218	70	Taiwan
MS21075L3	2012-08-214	30	China
MS21075L3	2012-07-209	30	China
MS21075L3N	2012-06-173	72	Mexico
MS21075L3N	2012-05-137	150	Taiwan
MS21075L3	2012-05-135	5350	UA
5310-01-356-5102	2012-05-135	5350	UA
5310-01-356-5102	2012-04-110	5	US
5310-01-356-5102	2012-04-95	80	US
5310-01-356-5102	2012-04-95	250	US
5310-01-356-5102	2012-04-95	500	US
MS21075L3N	2012-03-88	20	Israel
MS21075L3	2012-02-53	1000	United States
MS21075L3N	2012-02-52	125	SG
5310-01-356-5102	2012-01-11	2250	United States
MS21075L3	2011-12-353	100	United States
MS21075L3	2011-09-264	100	CA
5310-01-356-5102	2011-08-230	100	US
MS21075L3N	2011-06-180	2	United States
MS21075L3N	2011-05-151	22	United States
MS21075L3N	2011-05-143	60	United States
MS21075L3	2011-05-133	120	Spain
MS21075L3N	2011-04-91	8	United States
MS21075L3N	2011-04-91	8	United States
MS21075L3N	2011-03-84	4	US
5310-01-356-5102	2011-03-80	1000	TW
MS21075L3	2011-02-49	12	US
5310-01-356-5102	2011-02-34	200	KW
MS21075L3N	2010-12-350	200	United States
MS21075L3	2010-11-320	50	US
5310-01-356-5102	2010-10-301	25	US
MS21075L3	2010-10-277	100	US
MS21075L3	2010-09-250	600	United States
MS21075L3	2010-08-238	1	US
MS21075L3N	2010-07-190	78	United Kingdom
5310-01-356-5102	2010-06-181	2	US
5310-01-356-5102	2010-06-162	40	US
5310-01-356-5102	2010-06-153	10	India
5310-01-356-5102	2010-05-140	39165	DIBBS
MS21075L3N	2010-05-131	50	US
MS21075L3N	2010-05-131	150	US
MS21075L3N	2010-04-97	50	US
5310-01-356-5102	2010-03-84	530	United States
5310-01-356-5102	2010-03-77	30	MX
5310-01-356-5102	2010-01-26	2	US
5310-01-356-5102	2009-12-357	100	MX
MS21075L3	2009-11-320	202	US
5310-01-356-5102	2009-11-316	200	us
5310-01-356-5102	2009-10-294	2	United States
5310-01-356-5102	2009-09-252	2	United States
MS21075L3N	2009-08-236	20	United States
5310-01-356-5102	2009-08-226	10	US
5310-01-356-5102	2009-08-219	250	India
5310-01-356-5102	2009-06-168	282	Canada
5310-01-356-5102	2009-05-140	224823	DIBBS
MS21075L3N	2009-05-139	15000	US
MS21075L3	2009-05-126	70	United States
MS21075L3	2009-04-111	60	KH
5310-01-356-5102	2009-03-89	126299	DIBBS
MS21075L3N	2009-03-79	140	us
5310-01-356-5102	2009-03-75	320	US
5310-01-356-5102	2009-02-57	100	India
5310-01-356-5102	2009-02-57	100	India
5310-01-356-5102	2009-02-57	100	India
5310-01-356-5102	2009-02-57	16	India
5310-01-356-5102	2009-01-21	224823	DIBBS
5310-01-356-5102	2008-12-360	50	United States
5310-01-356-5102	2008-12-336	101888	DIBBS
MS21075L3	2008-11-330	1600	Italy
MS21075L3	2008-11-312	1200	Greece
5310-01-356-5102	2008-11-309	115935	DIBBS
5310-01-356-5102	2008-10-291	492	US
5310-01-356-5102	2008-10-279	100	Taiwan
5310-01-356-5102	2008-09-266	1000	US
5310-01-356-5102	2008-09-259	115935	DIBBS
5310-01-356-5102	2008-09-254	175	US
MS21075L3	2008-08-225	2500	United States
5310-01-356-5102	2008-08-218	120000	DIBBS
5310-01-356-5102	2008-08-214	1000	IT
5310-01-356-5102	2008-06-178	300	Colombia
MS21075L3N	2008-06-172	5000	DK
5310-01-356-5102	2008-06-162	500	us
MS21075L3N	2008-05-151	550	United States
MS21075L3N	2008-05-141	1000	US
5310-01-356-5102	2008-05-136	80	United Kingdom
5310-01-356-5102	2008-05-133	4	United States
5310-01-356-5102	2008-05-130	100000	IT
5310-01-356-5102	2008-05-123	15	US
5310-01-356-5102	2008-04-116	200	United States
MS21075L3	2008-04-115	4100	Taiwan
5310-01-356-5102	2008-03-72	2000	us
5310-01-356-5102	2008-03-67	111205	DIBBS
5310-01-356-5102	2008-02-47	1000	United States
5310-01-356-5102	2008-01-22	96	US
5310-01-356-5102	2007-11-325	150	US
5310-01-356-5102	2006-11-334	4000	us

Cross Reference | NSN 5310-01-356-5102

Part Number	Cage Code	Manufacturer
MS21075L03N	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21075L3	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21075L3N	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21075L3N	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-356-5102

Compare

Related Products | NSN 5310-01-356-5102

5310-01-356-5103, 5310-01-356-5104, 5310-01-356-5105, 5310-01-356-5106, 5310-01-356-5724

Technical Data | NSN 5310-01-356-5102

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD PITCH DIAMETERS	0.1562 TO 0.1697 INCHES
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL COMP 1035 OR STEEL COMP 4130 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5080 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 6350 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A116 PLATE
NUT LENGTH	0.739 INCHES MAXIMUM
NUT HEIGHT	0.250 INCHES MAXIMUM
PLATE THICKNESS	0.025 INCHES MINIMUM AND 0.090 INCHES MAXIMUM
PLATE WIDTH	0.290 INCHES MINIMUM AND 0.416 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION	DRY FILM LUBRICANT
NUT MOUNTING PROVISION	STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE	F38 2 HOLES
MOUNTING HOLE DIAMETER	0.103 INCHES MAXIMUM
DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER	0.245 INCHES MINIMUM AND 0.255 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH	0.498 INCHES MINIMUM AND 0.502 INCHES MAXIMUM
TEMP RATING	450.0 DEG FAHRENHEIT MAXIMUM
FEATURES PROVIDED	FLOATING NUT

Restrictions/Controls & Freight Information | NSN 5310-01-356-5102

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	KH	Defense Industrial Supply Center Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-356-5102

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BK	CH-47
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SO	TG:SPECIAL OPERATIONAL FORCES (SOF) PECULIAR
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
