NSN 5310-01-061-3323 RMLH2577108, RMLH2577-108, 01-061-3323

Product Details | BARREL SELF-LOCKING NUT

5310-01-061-3323 A nut of cylindrical or partly cylindrical cross-section with integral threads perpendicular to the axial centerline. Ends may be flat or flanged. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, ROUND.

Part Alternates: RMLH2577108, RMLH2577-108, 5310-01-061-3323, 01-061-3323, 5310010613323, 010613323

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	17 JUN 1978	01-061-3323	15891 ( NUT, SELF-LOCKING, BARREL )

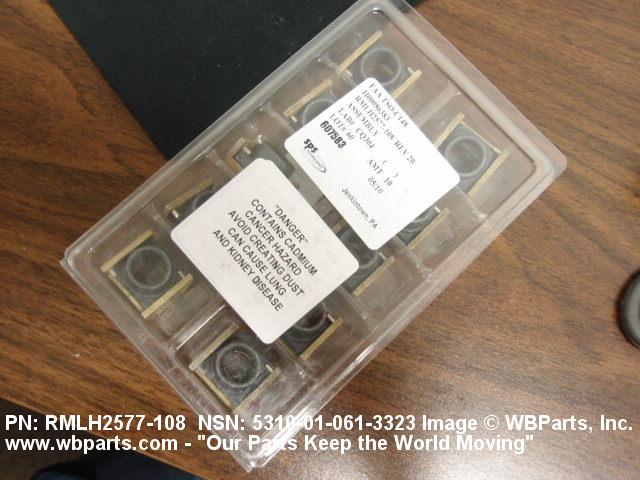

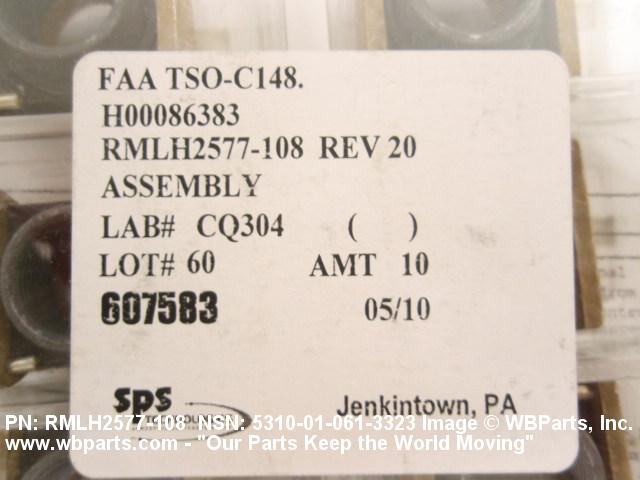

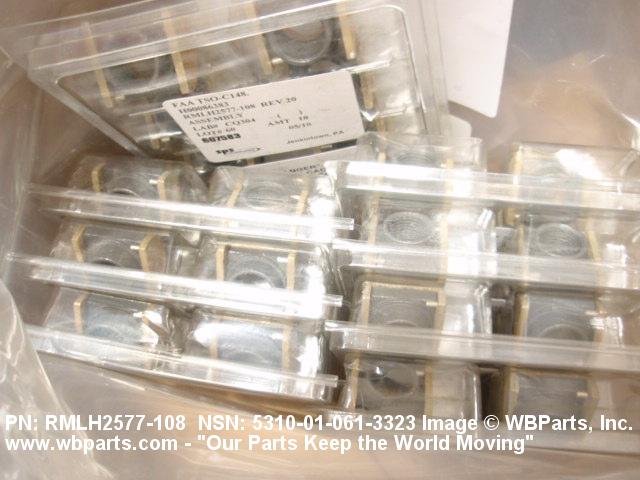

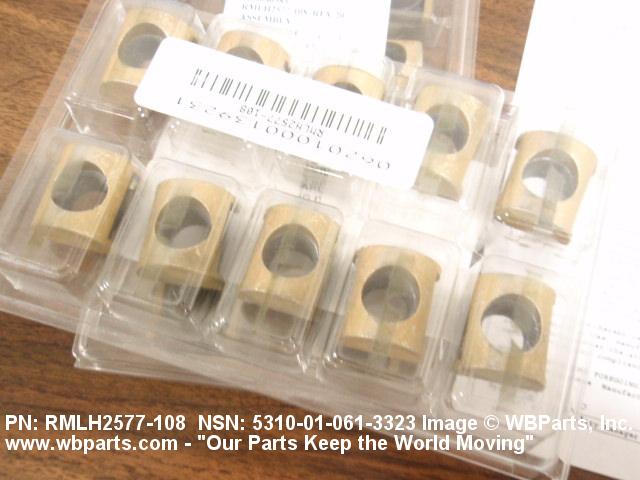

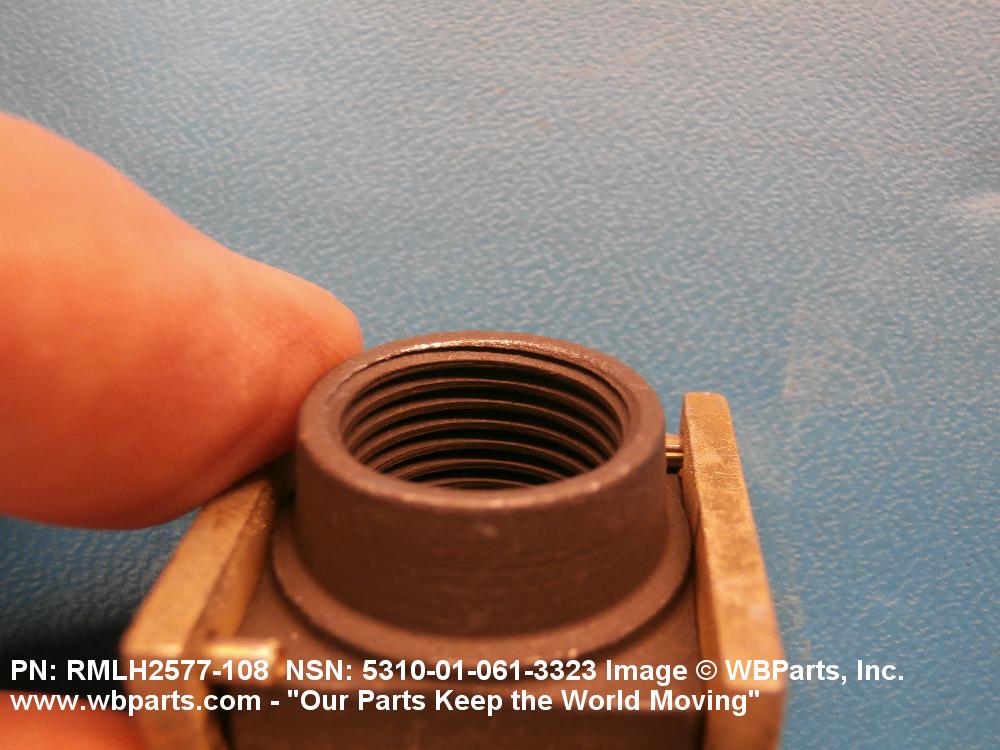

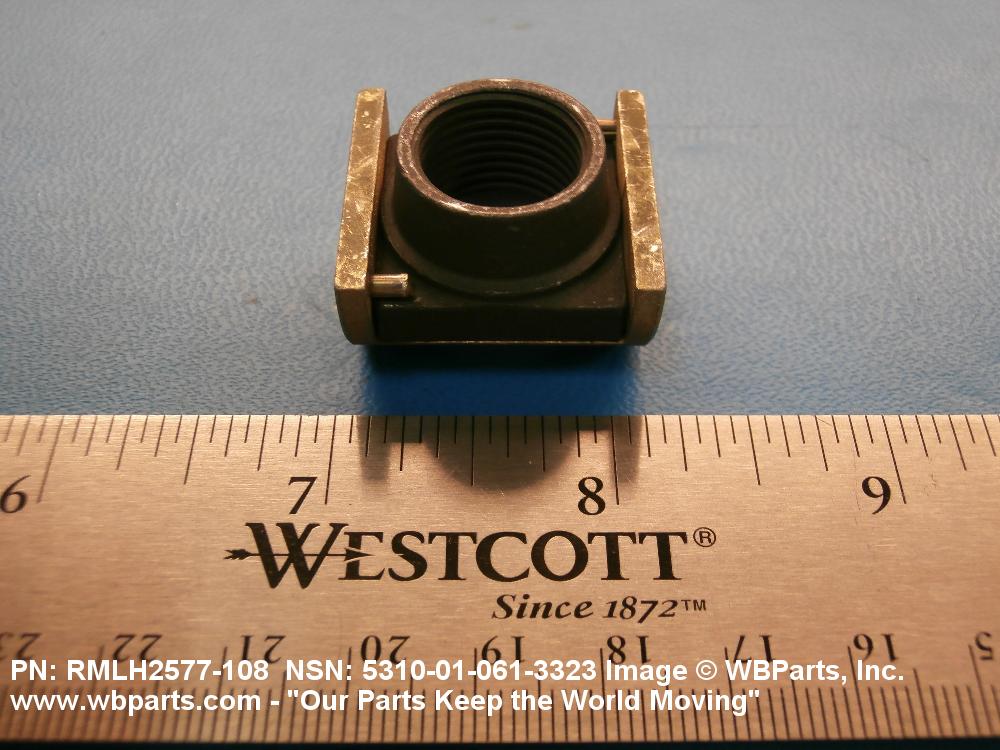

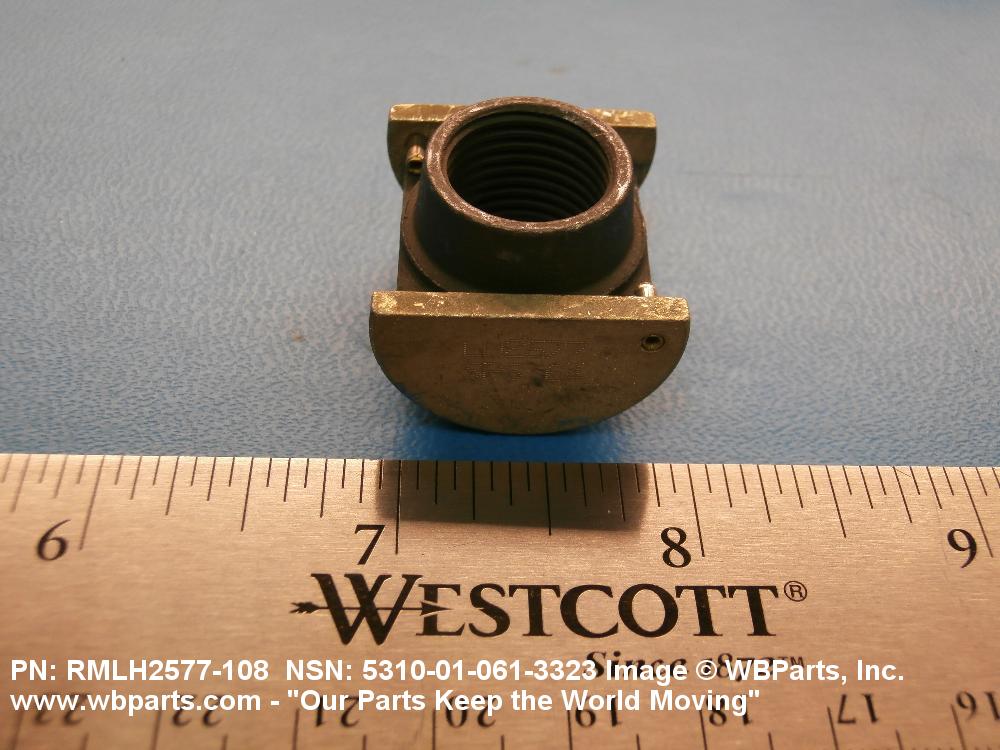

Drawings & Photos | NSN 5310-01-061-3323

Part Number	Request Date	QTY	Origin
RMLH2577-108	2024-06-24	1443	DIBBS
RMLH2577-108	2024-03-17	1519	DIBBS
5310-01-061-3323	2024-01-29	20	Croatia
RMLH2577-108	2023-12-03	1794	DIBBS
RMLH2577-108	2023-11-16	1151	DIBBS
RMLH2577-108	2023-09-20	324	DIBBS
RMLH2577-108	2022-10-05	408	DIBBS
RMLH2577-108	2022-09-13	1055	DIBBS
RMLH2577-108	2022-08-09	448	DIBBS
RMLH2577-108	2021-11-25	676	DIBBS
5310-01-061-3323	2021-11-04	20	Slovakia
RMLH2577-108	2021-10-14	778	DIBBS
RMLH2577-108	2021-09-09	1166	DIBBS
RMLH2577-108	2021-04-28	783	DIBBS
RMLH2577-108	2021-03-29	725	DIBBS
RMLH2577-108	2021-02-09	758	DIBBS
RMLH2577-108	2020-07-23	699	DIBBS
RMLH2577-108	2020-05-11	799	DIBBS
RMLH2577-108	2020-04-06	2314	DIBBS
RMLH2577-108	2020-03-12	1900	DIBBS
RMLH2577-108	2020-03-12	573	DIBBS
RMLH2577-108	2019-09-10	4404	DIBBS
RMLH2577-108	2019-05-07	2510	DIBBS
RMLH2577-108	2019-04-24	758	DIBBS
5310-01-061-3323	2019-04-18	20	us
5310-01-061-3323	2019-02-27	10	US
RMLH2577-108	2019-02-19	1165	DIBBS
5310-01-061-3323	2019-01-14	8	US
5310-01-061-3323	2018-11-21	12	US
5310-01-061-3323	2018-01-12	12	Malaysia
5310-01-061-3323	2018-01-03	5	Malaysia
5310-01-061-3323	2017-11-02	6	Malaysia
5310-01-061-3323	2017-10-10	83	Malaysia
5310-01-061-3323	2017-10-06	83	Malaysia
5310-01-061-3323	2015-05-05	1274	DIBBS
5310-01-061-3323	2014-11-03	2189	DIBBS
5310-01-061-3323	2014-09-22	920	DIBBS
RMLH2577108	2014-01-28	12	LB
RMLH2577-108	2013-12-16	24	Lebanon
RMLH2577-108	2013-12-10	36	Lebanon
5310-01-061-3323	2013-11-03	2374	DIBBS
5310-01-061-3323	2013-10-18	1	DIBBS-RFPs
5310-01-061-3323	2013-09-03	1	DIBBS-RFPs
5310-01-061-3323	2013-03-05	2220	DIBBS
5310-01-061-3323	2013-02-27	1110	DIBBS
5310-01-061-3323	2012-10-29	8	US
5310-01-061-3323	2010-10-26	24	US
RMLH2577108	2010-09-29	80	United States
RMLH2577108	2010-09-27	50	US
5310-01-061-3323	2010-09-15	30	US
5310-01-061-3323	2010-02-05	93	DIBBS
5310-01-061-3323	2010-01-20	2000	DIBBS
5310-01-061-3323	2009-11-17	2000	DIBBS
5310-01-061-3323	2009-11-17	428	DIBBS
5310-01-061-3323	2009-10-27	737	DIBBS
5310-01-061-3323	2009-10-05	775	DIBBS
5310-01-061-3323	2009-08-26	900	DIBBS
5310-01-061-3323	2009-05-19	2900	DIBBS
5310-01-061-3323	2009-03-30	911	DIBBS
5310-01-061-3323	2008-07-10	19200	DIBBS
5310-01-061-3323	2008-05-14	1100	DIBBS
RMLH2577108	2008-01-18	8	Philippines
5310-01-061-3323	2007-08-24	5	United States

Cross Reference | NSN 5310-01-061-3323

Part Number	Cage Code	Manufacturer
RMLH2577-108	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
RMLH2577-108	72962	HARVARD INDUSTRIES INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-061-3323

Compare

Related Products | NSN 5310-01-061-3323

5310-01-061-3324, 5310-01-061-3325, 5310-01-061-3326, 5310-01-061-3327, 5310-01-061-3328

Technical Data | NSN 5310-01-061-3323

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.625 INCHES
THREAD QUANTITY PER INCH	18
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TYPE II,CLASS 3 FED SPEC 1ST TREATMENT RESPONSE LOCKING INSERT QQ-P-416,CLASS 3 FED SPEC 2ND TREATMENT RESPONSE NUT
HARDNESS RATING	36.0 ROCKWELL C MINIMUM AND 43.0 ROCKWELL C MAXIMUM
NUT STYLE	A40 FLOATING SELF-LOCKING BARREL
NUT DIAMETER	0.911 INCHES NOMINAL
NUT LENGTH	1.115 INCHES MINIMUM AND 1.135 INCHES MAXIMUM
BARREL HEIGHT	0.640 INCHES MINIMUM AND 0.650 INCHES MAXIMUM
NUT HEIGHT	0.844 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION	DRY FILM LUBRICANT
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL
MANUFACTURERS CODE	72962
DESIGN CONTROL REFERENCE	RMLH2577-108

Restrictions/Controls & Freight Information | NSN 5310-01-061-3323

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XH	USCG Aircraft Repair and Supply Center Elizabeth City, NC 27909-5001
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-061-3323

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BK	CH-47
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
