NSN 5310-00-894-3638 MS910504, MS9105-04 , NAS1291A3M

Product Details | HEXAGON EXTENDED WASHER SELF-LOCKING NUT

5310-00-894-3638 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS910504, MS9105-04 , NAS1291A3M, NAS1291C3M, NRH30C3M, NRH30C-3M, A05495, AS8650D, BH1291C3MFA, BH1291C-3MFA, CIPRDNAS1291C3M, CIPRD-NAS1291C3M, H42-3, H527663, H52766-3, FN1014M1032, FN812M1032, P32333, RMLH385802, RMLH3858-02, VN324DH02, H423, 03A1533L, 03A153-3L, 17720751, 1772075-1, 2636928, 5255959105, 525-595-9105, 568424347002, 568-4-24347-002, 79800759006, 839633L, 83963-3L, 9475320313, 947532-0313, 95031125, 950311-25, 5310-00-894-3638, 00-894-3638, 5310008943638, 008943638

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-894-3638	29730 ( NUT, SELF-LOCKING, EXTENDED WASHER, HEXAGON )

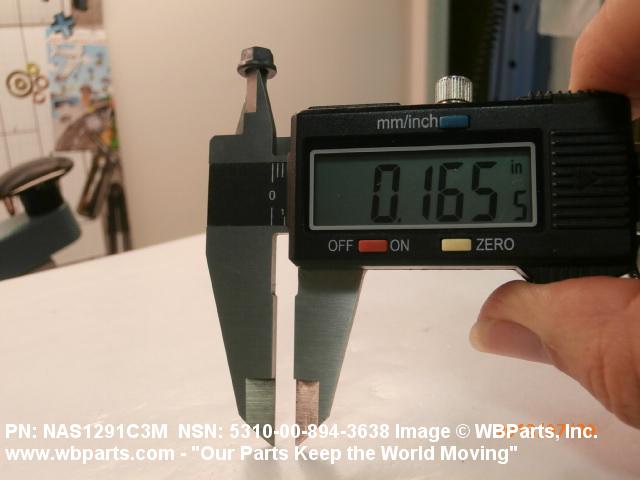

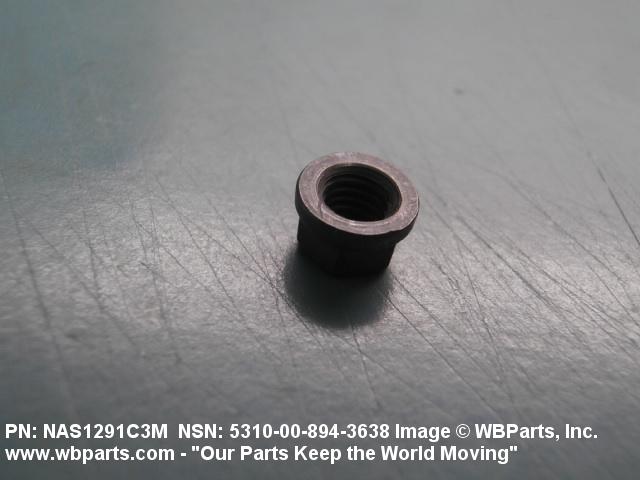

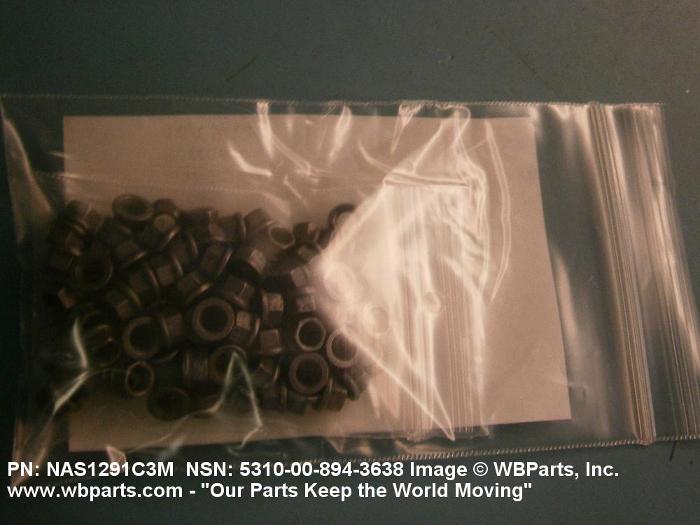

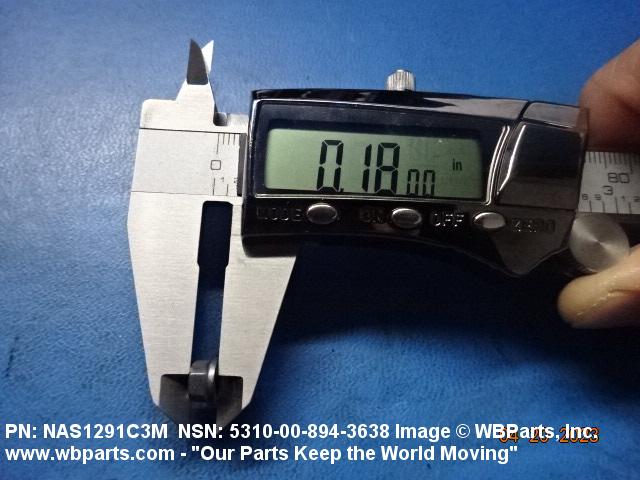

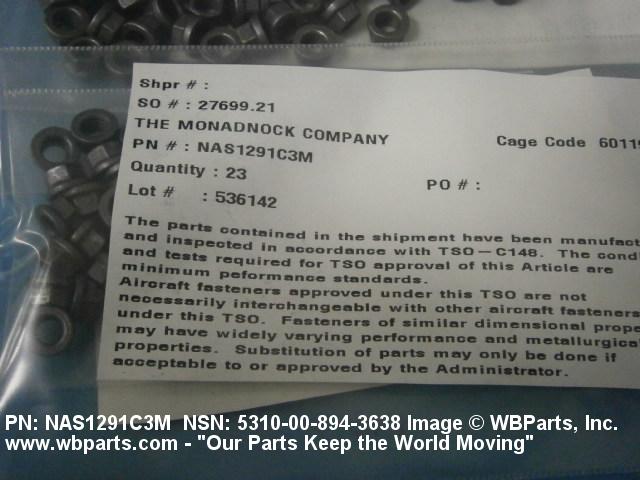

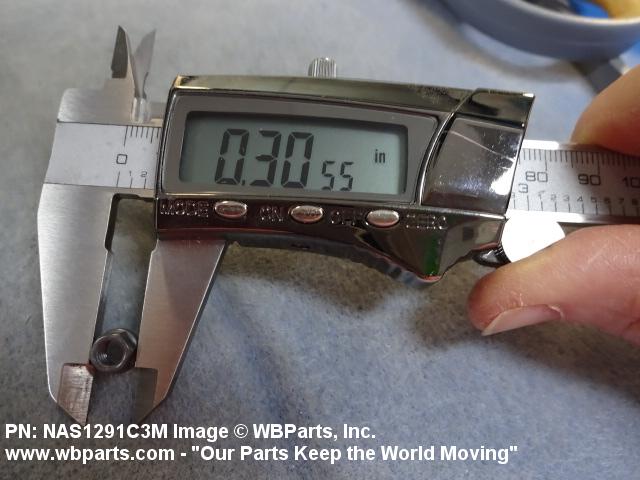

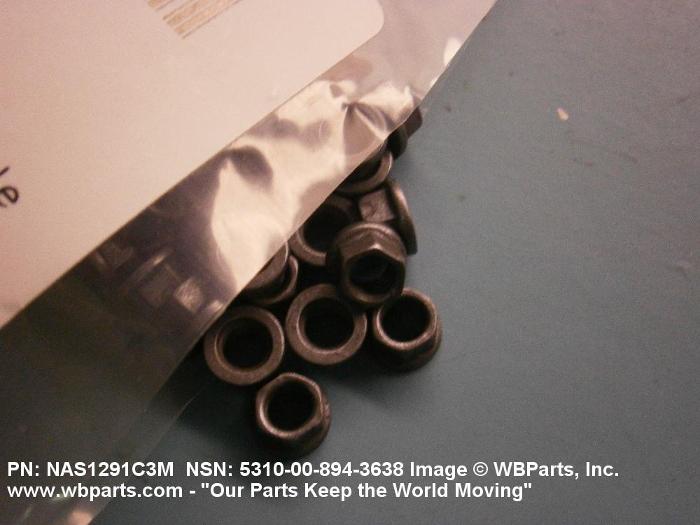

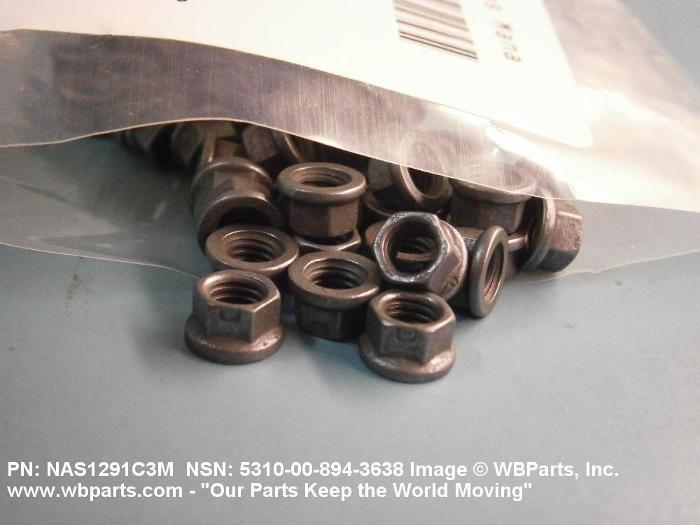

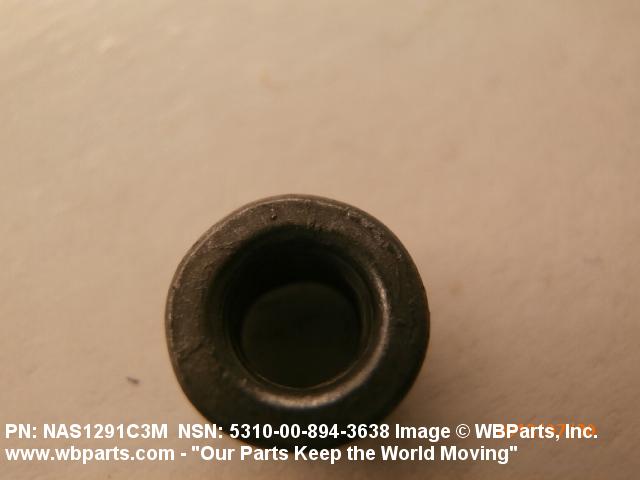

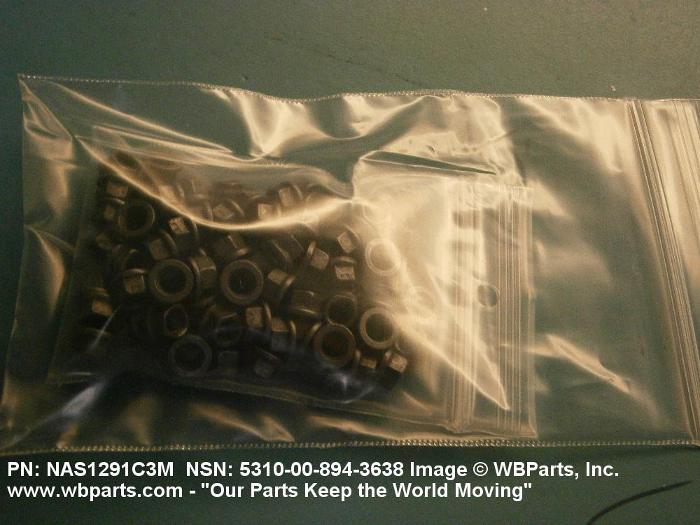

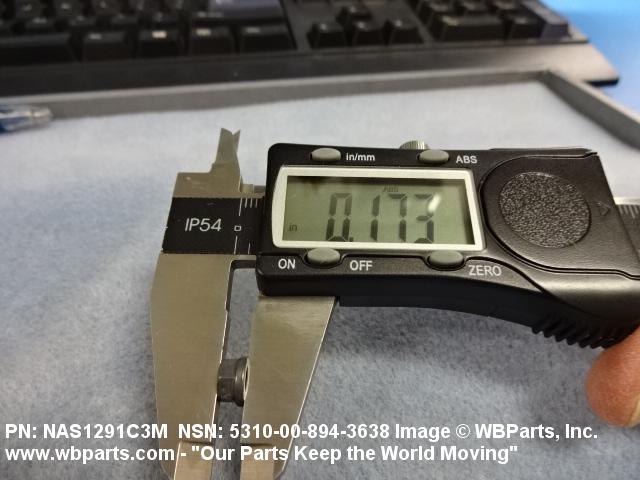

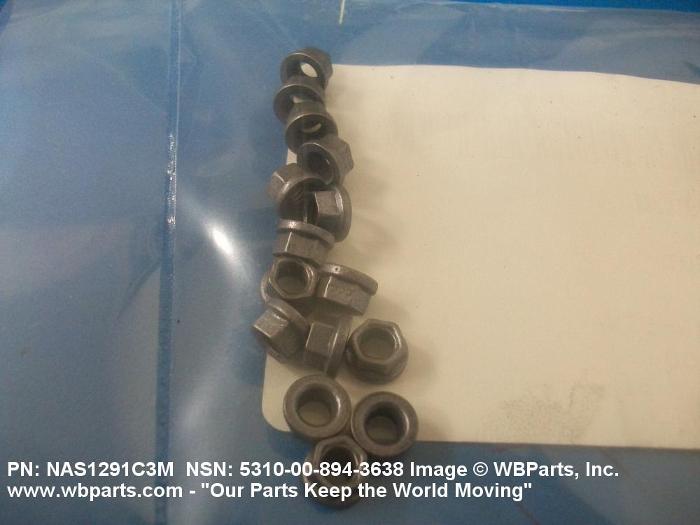

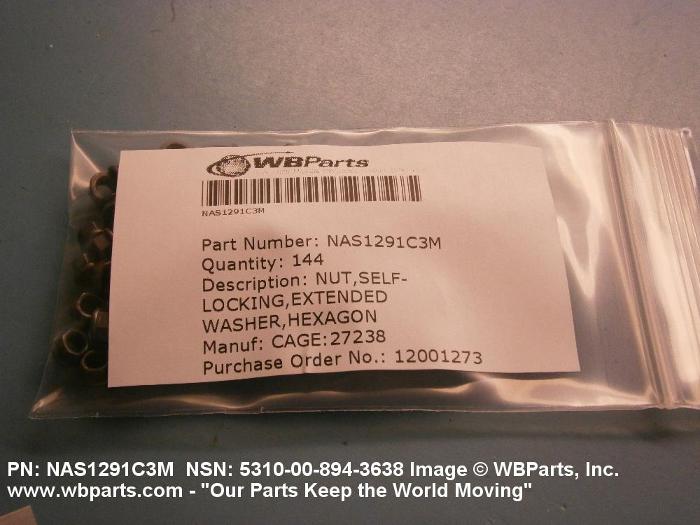

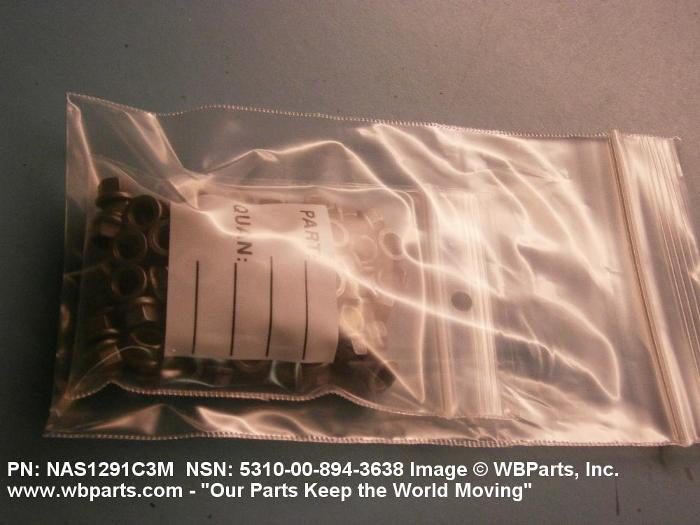

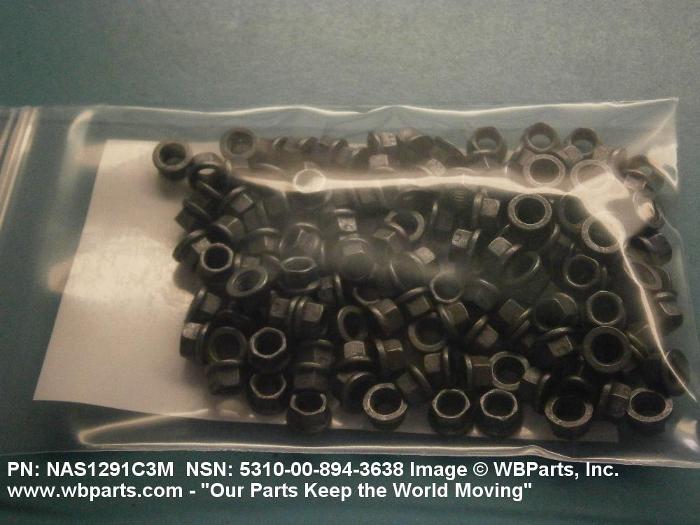

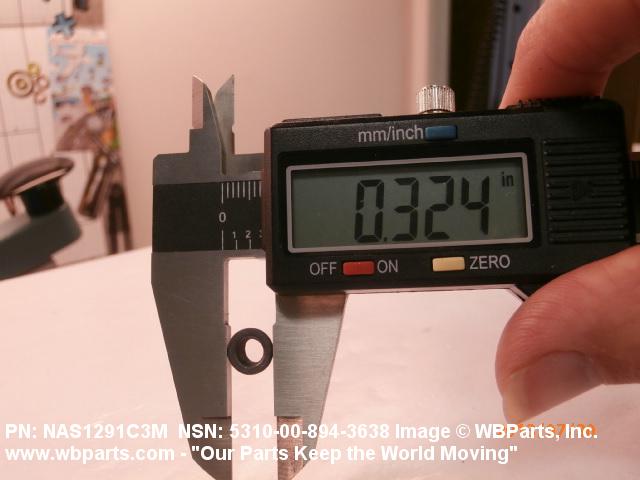

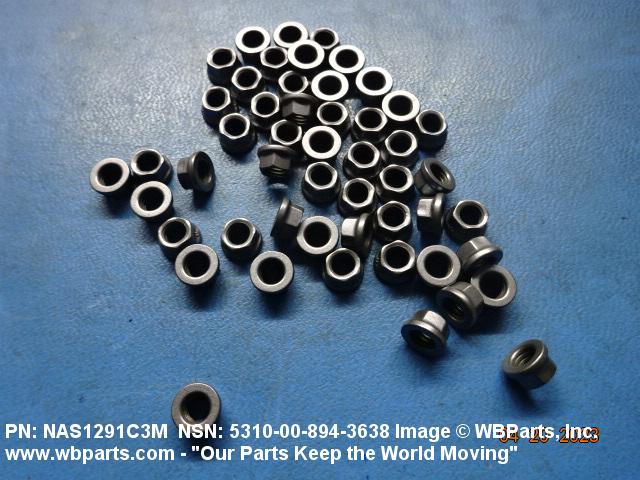

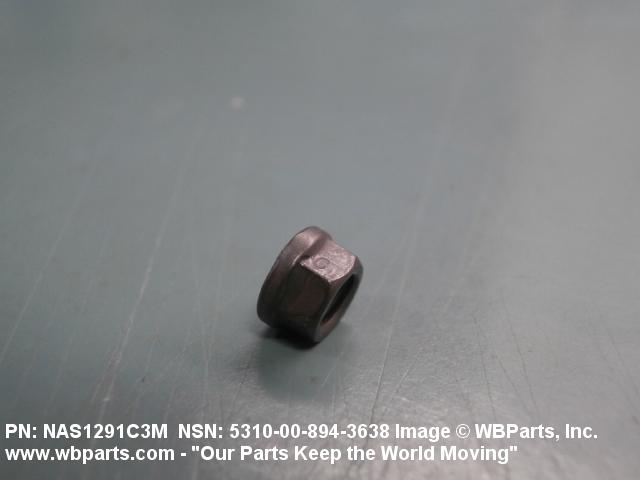

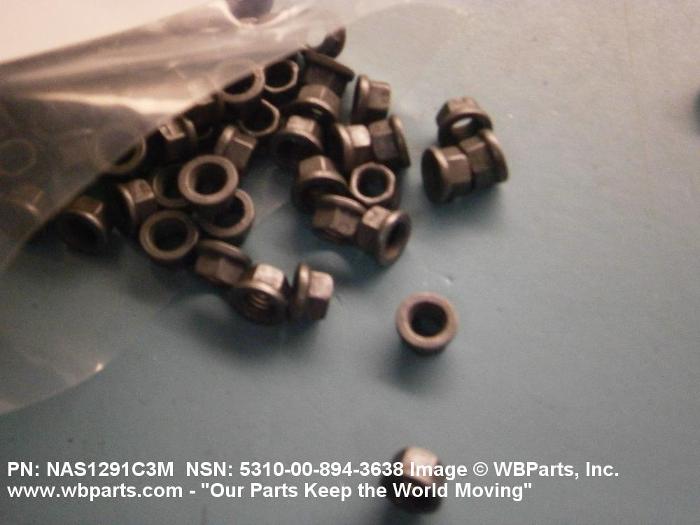

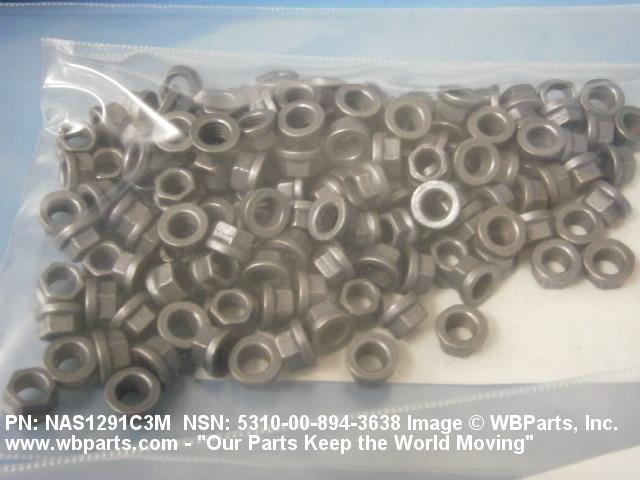

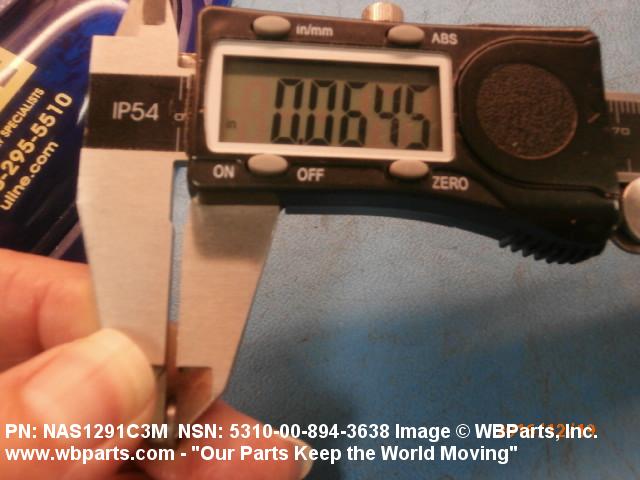

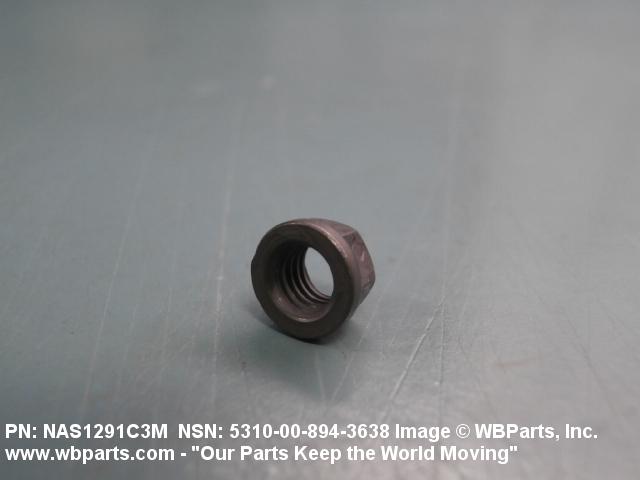

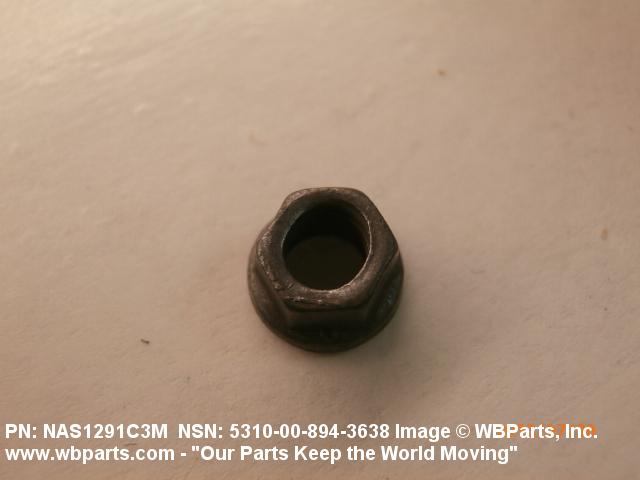

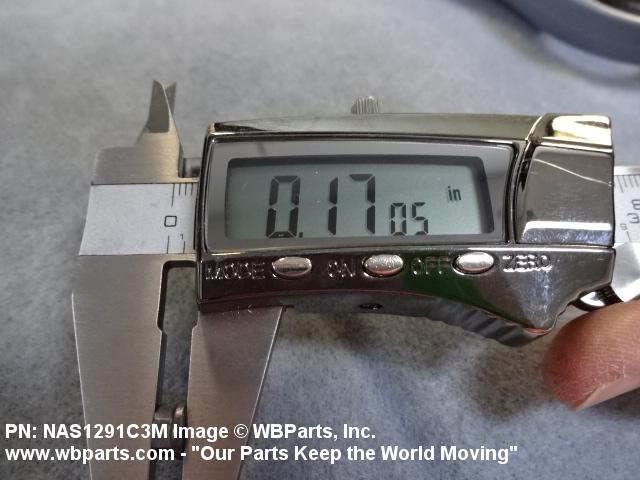

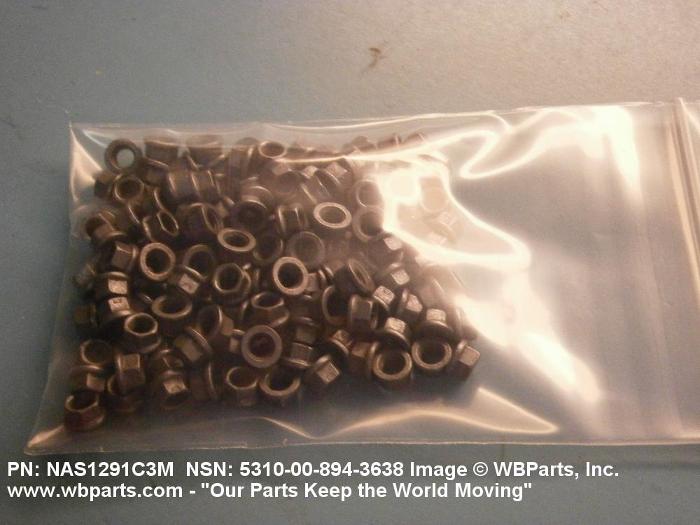

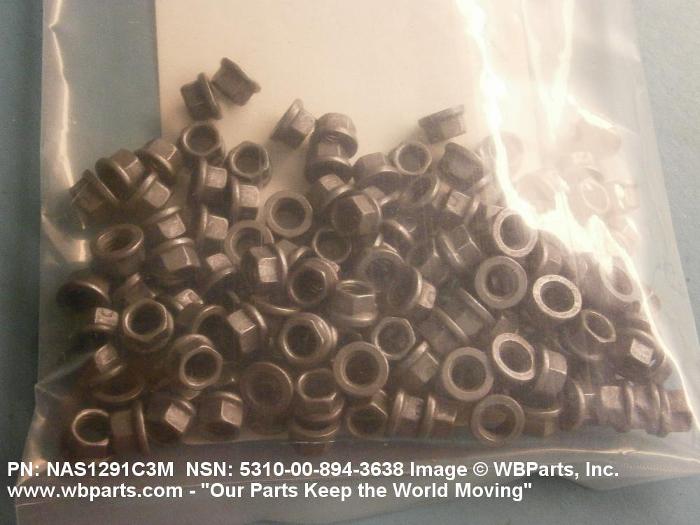

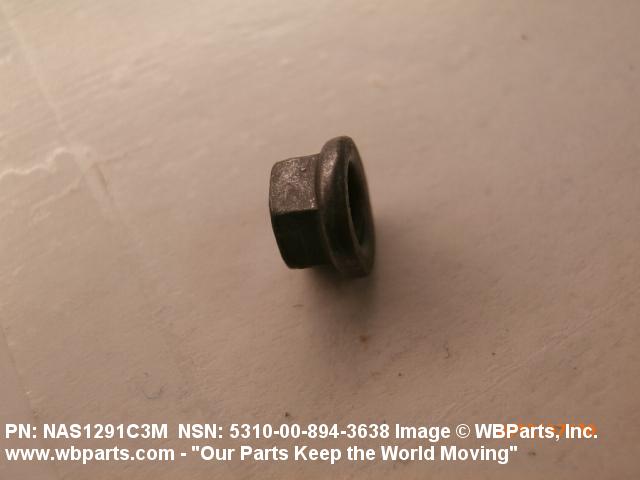

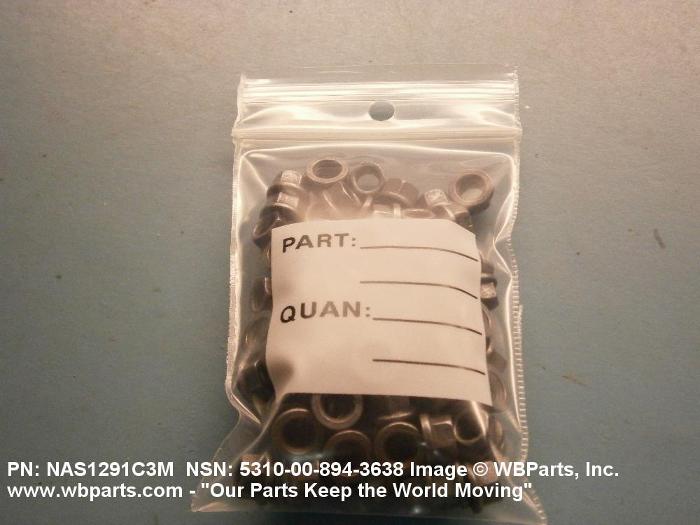

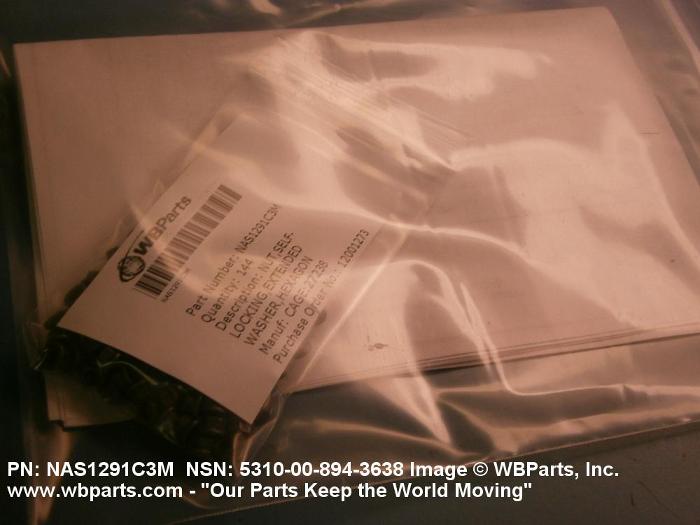

Drawings & Photos | NSN 5310-00-894-3638

Part Number	Request Date	QTY	Origin
NAS1291C3M	2025-02-42	100	PH
NAS1291C3M	2025-01-10	25	US
5310-00-894-3638	2024-11-327	400	Taiwan
NAS1291C3M	2024-10-285	50	US
NAS1291C3M	2024-10-277	41	Italy
5310-00-894-3638	2024-06-157	2800	IN
NAS1291C3M	2024-04-110	223	United States
NAS1291C3M	2024-03-88	2000	United States
NAS1291C3M	2023-09-258	30	Indonesia
NAS1291C3M	2023-08-213	30	United States
NAS1291C3M	2023-02-39	30	Indonesia
NAS1291C3M	2022-07-199	214858	DIBBS
NAS1291C3MW	2022-07-199	214858	DIBBS
5310-00-894-3638	2022-07-187	62620	US
NAS1291C3M	2022-06-177	62620	DIBBS
NAS1291C3MW	2022-06-177	62620	DIBBS
NAS1291C3M	2022-02-53	18697	DIBBS
NAS1291C3MW	2022-02-53	18697	DIBBS
NAS1291C3M	2022-01-06	250	IN
NAS1291C3M	2021-11-325	214858	DIBBS
NAS1291C3MW	2021-11-325	214858	DIBBS
NAS1291C3M	2021-04-109	131267	DIBBS
NAS1291C3MW	2021-04-109	131267	DIBBS
NAS1291C3M	2020-08-229	117316	DIBBS
NAS1291C3MW	2020-08-229	117316	DIBBS
NAS1291C3M	2020-03-85	100	US
NAS1291C3M	2020-01-06	50	United States
NAS1291C3M	2020-01-06	50	United States
5310-00-894-3638	2019-12-361	100	Taiwan
5310-00-894-3638	2019-09-263	1000	Singapore
03A153-3L	2019-07-192	20	US
5310-00-894-3638	2019-07-192	20	MANUAL
5310-00-894-3638	2018-09-261	66738	DIBBS
NAS1291C3M	2018-07-193	100	United States
5310-00-894-3638	2017-12-340	1155955	US
5310-00-894-3638	2017-11-328	1	DIBBS-RFPs
NAS1291C3M	2017-09-261	2100	US
5310-00-894-3638	2017-07-211	2236	DIBBS
5310-00-894-3638	2017-07-186	138904	DIBBS
5310-00-894-3638	2017-06-171	70271	DIBBS
5310-00-894-3638	2017-05-129	101308	DIBBS
5310-00-894-3638	2017-02-36	31435	DIBBS
NAS1291C3M	2017-01-18	20	Philippines
NAS1291C3M	2016-12-354	112	US
NAS1291C3M	2016-12-350	4	United States
NAS1291C3M	2016-11-316	50	United States
NAS1291C3M	2016-08-239	150	Taiwan
5310-00-894-3638	2016-05-136	16353	DIBBS
NAS1291C3M	2016-05-133	55	United States
NAS1291C3M	2016-03-64	4	United States
NAS1291C3M	2016-02-54	80	United States
5310-00-894-3638	2016-02-53	54	United States
5310-00-894-3638	2016-02-52	14169	DIBBS
5310-00-894-3638	2016-02-40	40376	DIBBS
NAS1291C3M	2016-01-04	10	US
5310-00-894-3638	2015-12-347	40656	DIBBS
5310-00-894-3638	2015-10-298	26787	DIBBS
03A1533L	2015-10-274	10	United States
5310-00-894-3638	2015-09-251	16082	DIBBS
NAS1291C3M	2015-08-224	2	US
NAS1291C3M	2015-06-169	16	United States
5310-00-894-3638	2015-05-130	36534	DIBBS
5310-00-894-3638	2015-03-85	81966	DIBBS
NAS1291C3M	2015-03-69	63	United States
5310-00-894-3638	2014-12-341	41228	DIBBS
5310-00-894-3638	2014-09-266	88002	DIBBS
NAS1291C3M	2014-08-232	10	Australia
NAS1291C3M	2014-08-232	10	United States
NAS1291C3M	2014-08-232	10	United States
NAS1291C3M	2014-08-227	10	Australia
5310-00-894-3638	2014-07-209	88002	DIBBS
5310-00-894-3638	2014-05-138	53705	DIBBS
5310-00-894-3638	2014-01-28	129245	DIBBS
5310-00-894-3638	2014-01-09	19739	DIBBS
NAS1291C3M	2014-01-08	100	US
NAS1291C3M	2013-11-326	30	United States
5310-00-894-3638	2013-11-319	16426	DIBBS
NAS1291C3M	2013-11-308	100	US
5310-00-894-3638	2013-08-231	19	US
NAS1291C3M	2013-07-183	36	United States
5310-00-894-3638	2013-06-162	32642	DIBBS
NAS1291C3M	2013-05-134	50	CZ
NAS1291C3M	2013-05-130	100	VE
NAS1291C3M	2013-02-46	100	United States
NAS1291C3M	2013-01-08	100	United States
NAS1291C3M	2013-01-08	100	United States
NAS1291C3M	2012-09-248	500	us
NAS1291C3M	2012-06-170	100	US
H423	2012-06-159	100	US
NAS1291C3M	2012-06-159	100	US
P32333	2012-06-159	100	US
NAS1291C3M	2012-06-156	10	United States
NAS1291C3M	2012-05-136	66	Mexico
NAS1291C3M	2012-05-132	144	IL
NAS1291C3M	2012-05-130	144	Israel
NAS1291C3M	2012-04-103	30000	US
NAS1291C3M	2012-03-73	142	Israel
NAS1291C3M	2012-02-53	240	South Korea
NAS1291C3M	2011-12-347	25	United States
NAS1291C3M	2011-11-334	160	United States
NAS1291C3M	2011-11-311	4	US
5310-00-894-3638	2011-07-202	153	US
NAS1291C3M	2010-12-342	47	US
NAS1291C3M	2010-10-278	80	Saudi Arabia
NAS1291C3M	2010-10-278	80	Saudi Arabia
NAS1291C3M	2010-10-274	40	US
NAS1291C3M	2010-07-207	500	US
5310-00-894-3638	2010-06-176	33	US
5310-00-894-3638	2010-03-76	600	IL
5255959105	2009-12-362	100	US
MS910504	2009-12-353	150	US
5310-00-894-3638	2009-12-338	100	US
5310-00-894-3638	2009-10-274	5	United States
5310-00-894-3638	2009-08-237	50	Australia
NAS1291C3M	2009-04-100	1000	India
NAS1291C3M	2009-04-91	76	US
P32333	2008-12-338	50	AR
NAS1291C3M	2008-11-308	50	US
5310-00-894-3638	2008-11-306	18613	DIBBS
NAS1291C3M	2008-07-200	42	US
VN324DH02	2008-04-93	5500	US
5310-00-894-3638	2008-03-79	5000	US
5310-00-894-3638	2008-03-67	65223	DIBBS
5310-00-894-3638	2008-02-52	10	US
NAS1291C3M	2007-12-339	4560	us
NAS1291C3M	2007-11-332	30	JP
NAS1291C3M	2007-09-250	1500	US

Cross Reference | NSN 5310-00-894-3638

Part Number	Cage Code	Manufacturer
03A153-3L	1W025	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
1772075-1	55973	HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS
2636928	06848	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
525-595-9105	27238	BRISTOL INDUSTRIES
5310008943638	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
568-4-24347-002	K2523	EATON AEROSPACE LTD
79800759006	K0377	GOODRICH ACTUATION SYSTEMS LTD
79800759006	K0655	LUCAS AEROSPACE LTD ELECTRONIC SYSTEMS & EQUIPMENT DIV
83963-3L	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
947532-0313	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
950311-25	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
950311-25	13973	LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION
A05495	K0967	MBDA UK LTD
AS8650D	K7766	BRITISH STANDARDS INSTITUTION
AS8650D	U1653	SOCIETY OF BRITISH AEROSPACE COMPANI LTD SBAC
BH1291C-3MFA	27238	BRISTOL INDUSTRIES
CIPRD-NAS1291C3M	14153	DEFENSE LOGISTICS AGENCY DBA DEFENSE SUPPLY CENTER
FN1014M1032	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
FN812M1032	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
H42-3	15653	ALCOA GLOBAL FASTENERS, INC.
H42-3	F6033	TECNOTEC SARL
H42-3	F7652	B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS
H42-3	K1678	FAIRCHILD FASTENERS UK LTD
H42-3	K6405	KAYNAR MICRODOT AEROSPACE
H42-3	K7548	B/E AEROSPACE CONSUMABLES MANAGEMENT II LIMITED
H42-3	R1120	SATAIR A/S
H42-3	U1954	ZODIAC SEATS UK LTD
H42-3	U3384	ZODIAC SEATS UK LTD
H52766-3	15653	ALCOA GLOBAL FASTENERS, INC.
H52766-3	R1120	SATAIR A/S
NAS1291A3M	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS1291C3M	5R793	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
NAS1291C3M	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS1291C3M	F0754	SOC EXPLOITATION MATERIELS MARTINBAKER
NAS1291C3MW	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NRH30C-3M	52828	REPUBLIC FASTENER MFG. CORP.
P32333	F0754	SOC EXPLOITATION MATERIELS MARTINBAKER
RMLH3858-02	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
RMLH3858-02	72962	HARVARD INDUSTRIES INC
VN324DH02	06950	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
VN324DH02	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-894-3638

Compare

Related Products | NSN 5310-00-894-3638

5310-00-894-3639, 5310-00-894-4234, 5310-00-894-4677, 5310-00-894-4762, 5310-00-894-4770

Technical Data | NSN 5310-00-894-3638

Characteristic	Specifications
THREAD SERIES	UNF
NOMINAL THREAD SIZE	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	IRON ALLOY 660 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5735 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A294 HEXAGON
WASHER OUTSIDE DIAMETER	0.330 INCHES MAXIMUM
OVERALL HEIGHT	0.154 INCHES MINIMUM AND 0.188 INCHES MAXIMUM
WASHER THICKNESS	0.015 INCHES MINIMUM
WIDTH ACROSS FLATS	0.243 INCHES MINIMUM AND 0.252 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION	DRY FILM LUBRICANT
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL
SPECIAL FEATURES	FLUORESCENT PENETRANT INSPECT
TEST DATA DOCUMENT	81349-MIL-N-25027 SPECIFICATION

Restrictions/Controls & Freight Information | NSN 5310-00-894-3638

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	105000	DOWEL PINS I/S NOI IN BAG/BBL/BOXES
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-894-3638

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
