NSN 5310-00-779-6625 MS21060L3, NAS686C3M, RF200C3M

Product Details | PLATE SELF-LOCKING NUT

5310-00-779-6625 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS21060L3, NAS686C3M, RF200C3M, RMLHTA521286002, RMLHTA521-2860-02, T65C1032CM, Z00.N5425389225, Z00N5425389225, F50013, F5001-3, 10121689 , 13705E02, 5310-00-779-6625, 00-779-6625, 5310007796625, 007796625, 13705E-02

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1960	00-779-6625	05280 ( NUT, SELF-LOCKING, PLATE )

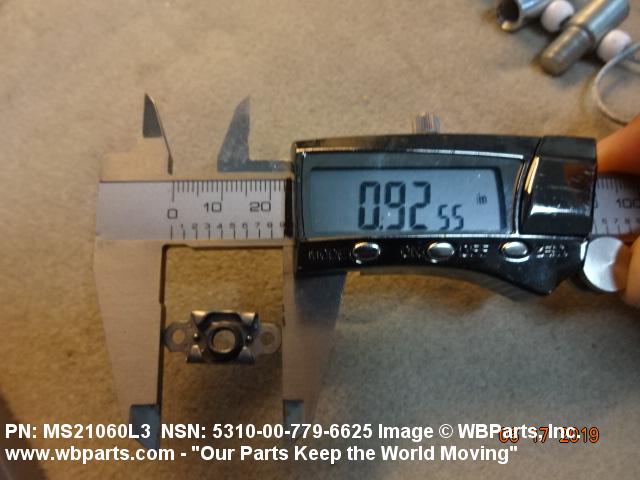

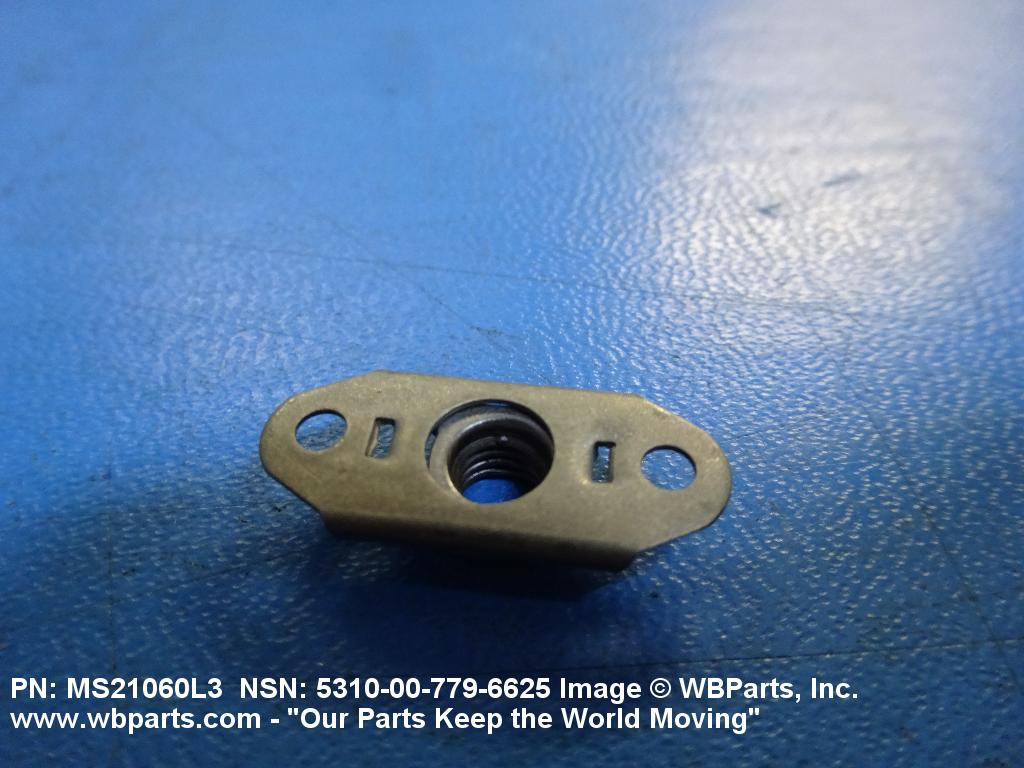

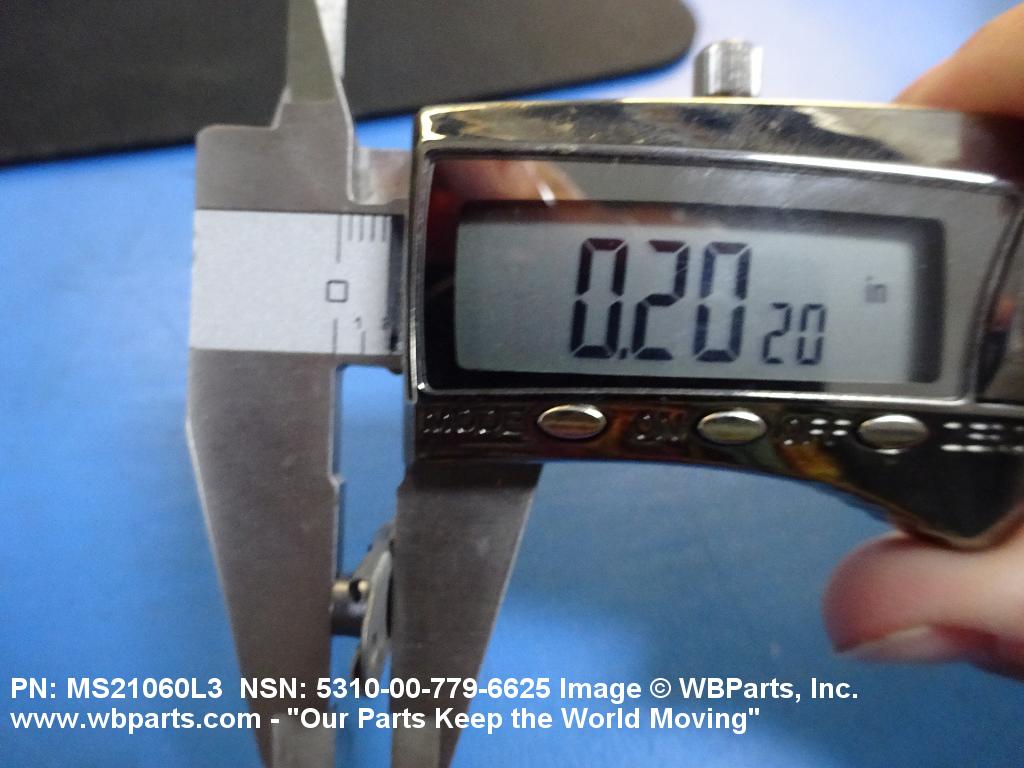

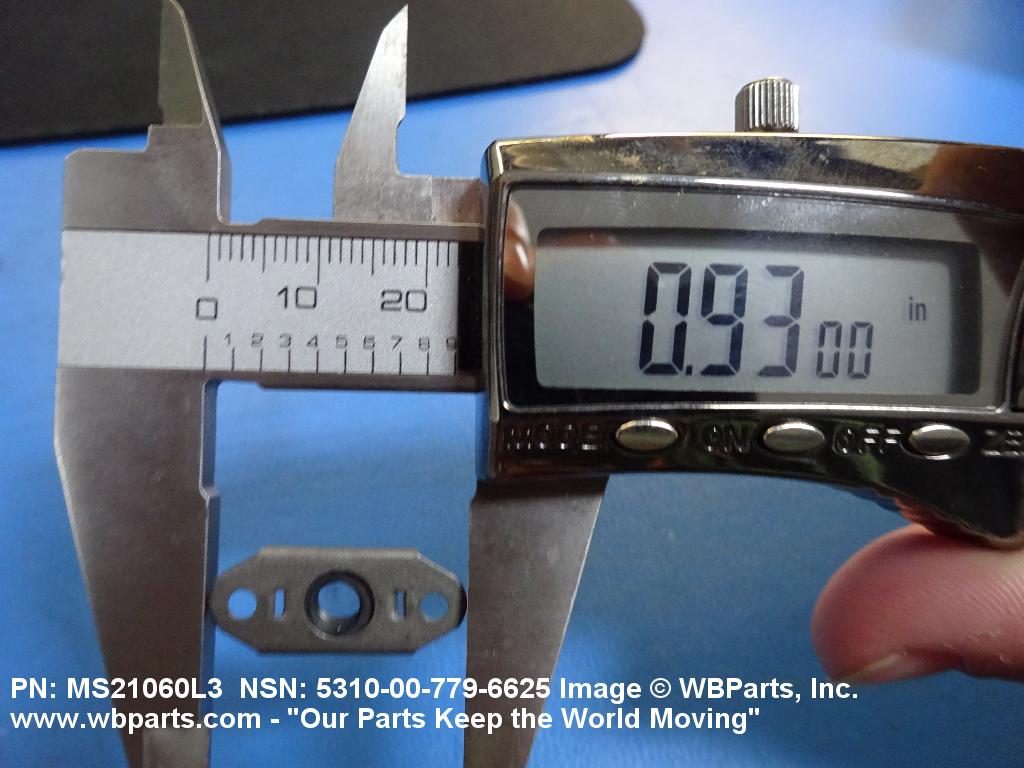

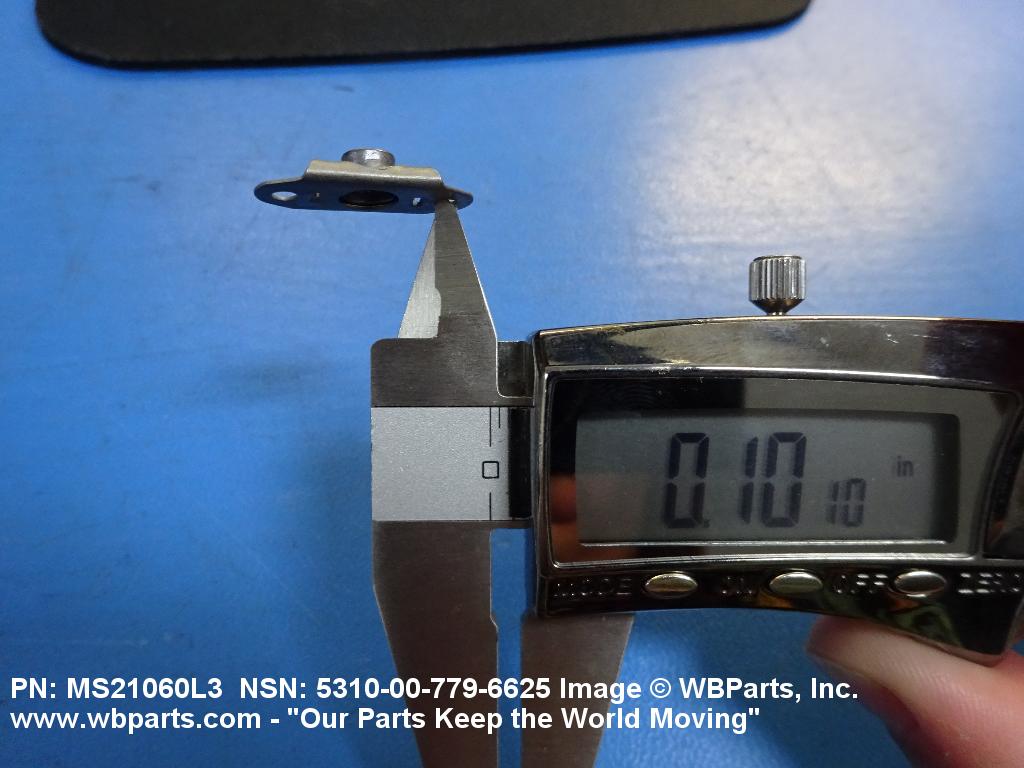

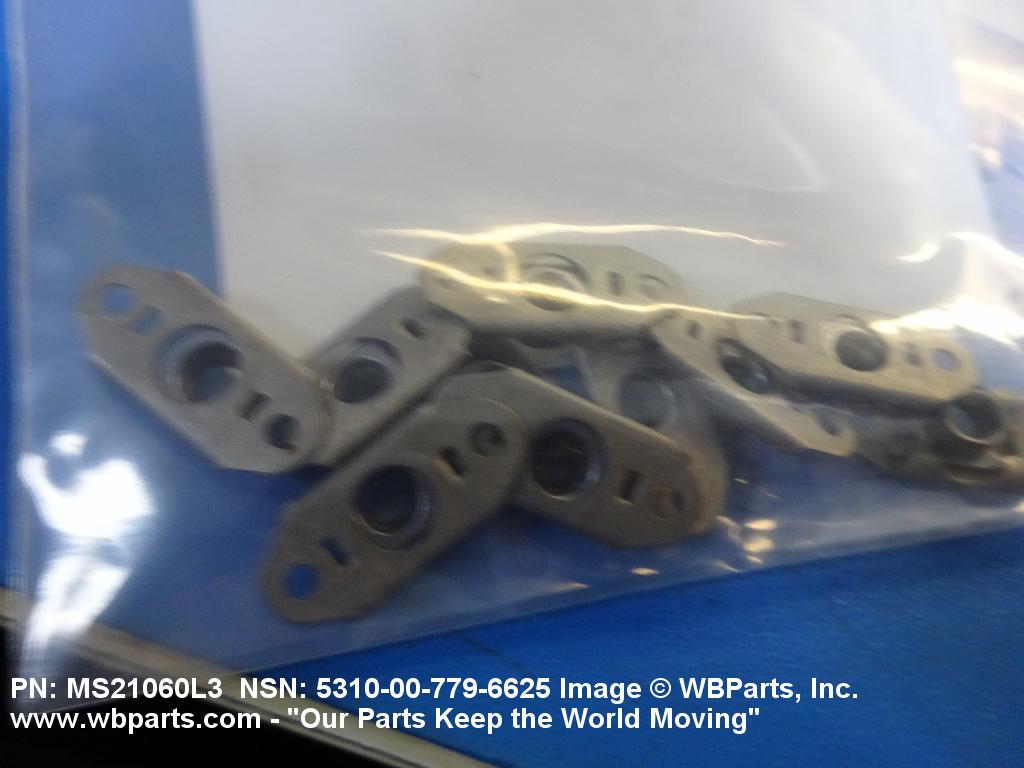

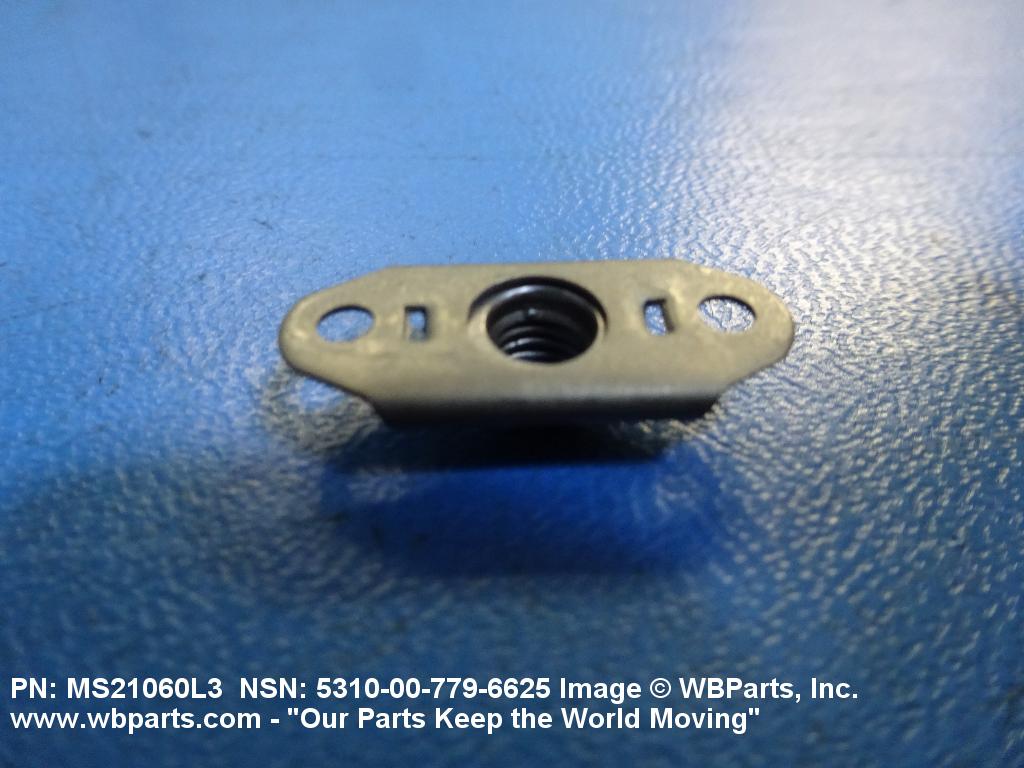

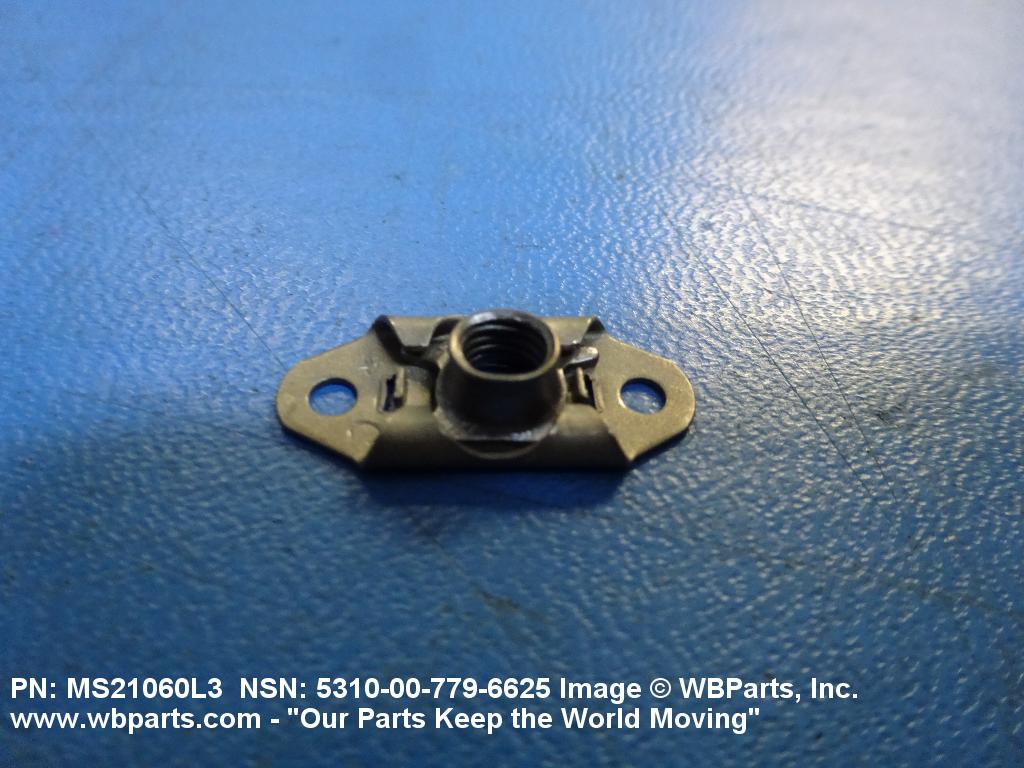

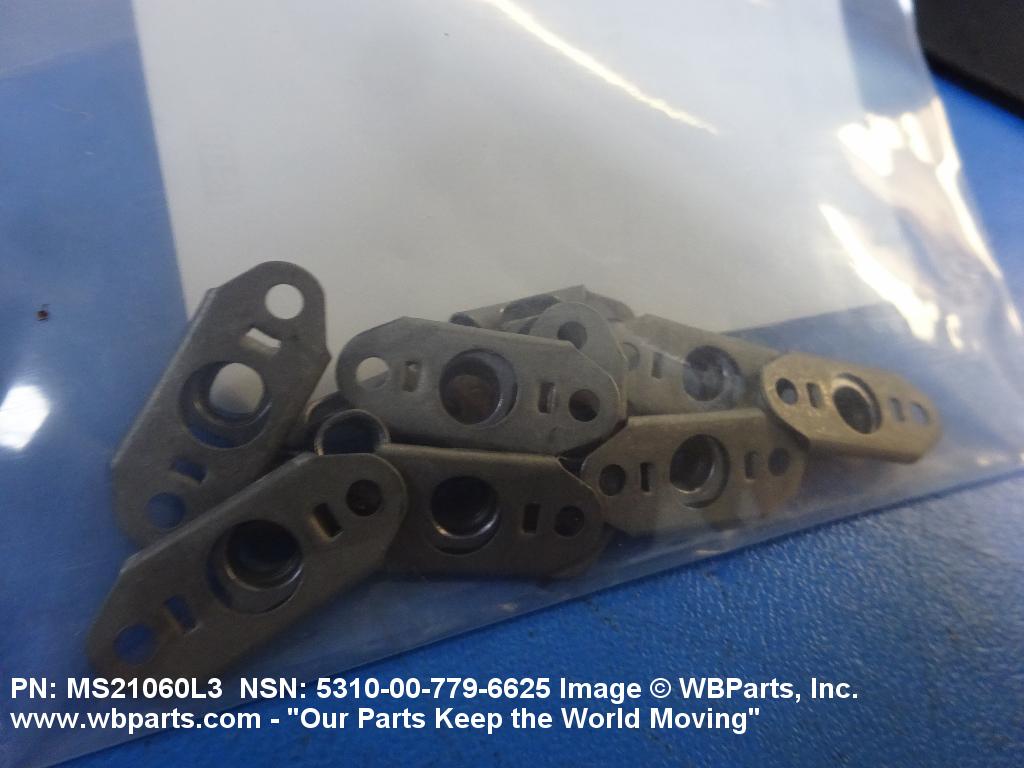

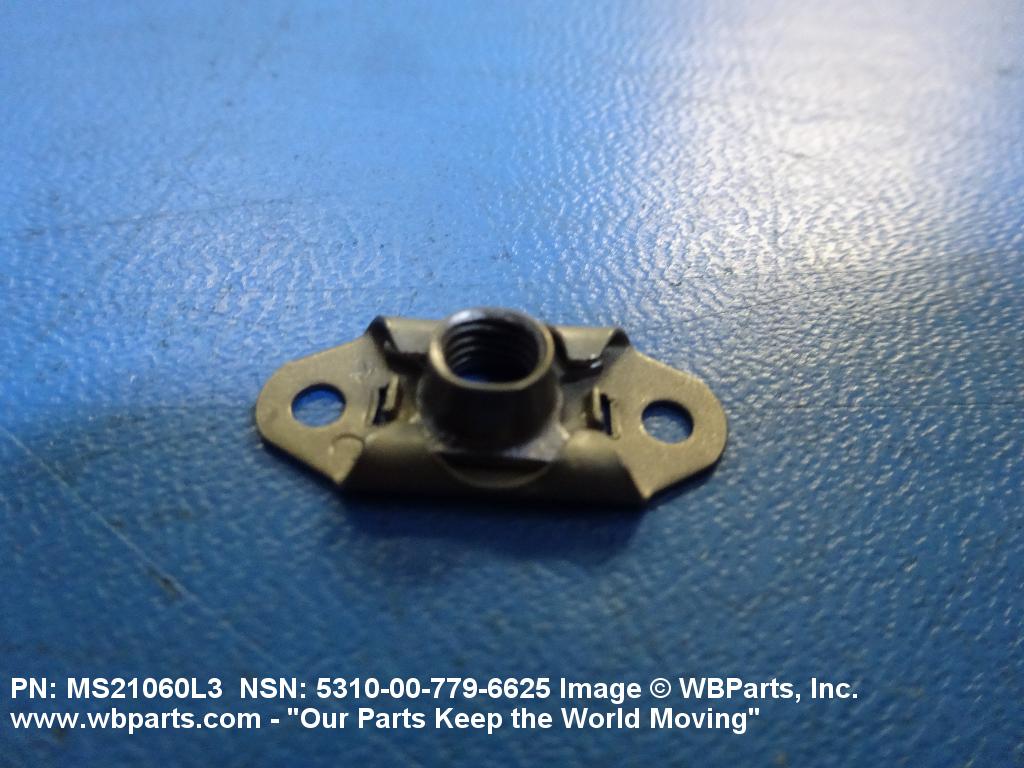

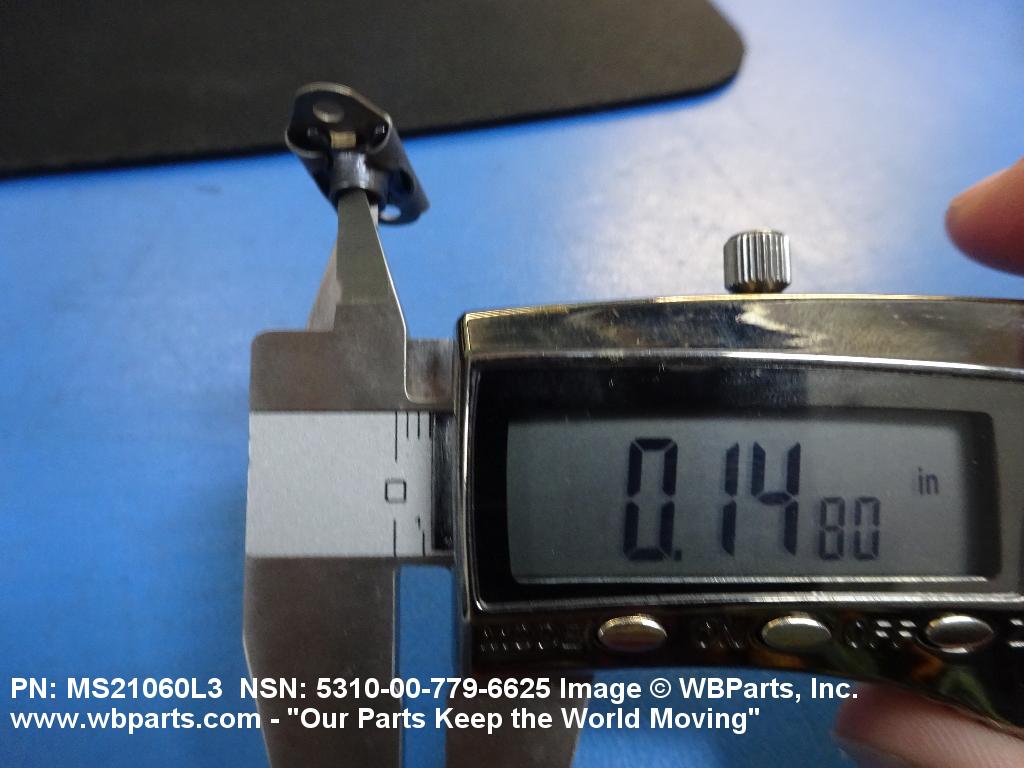

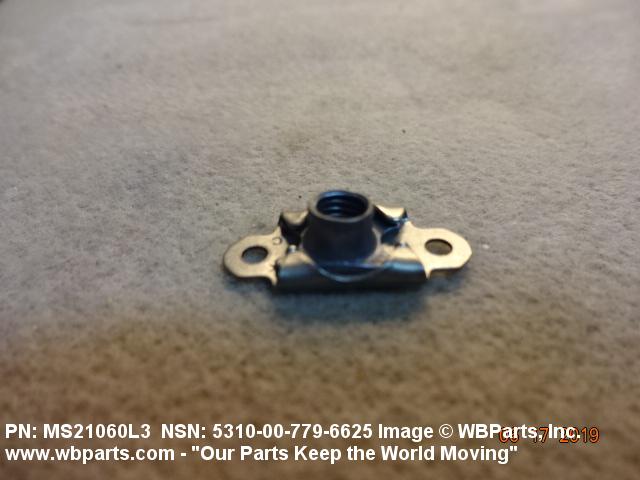

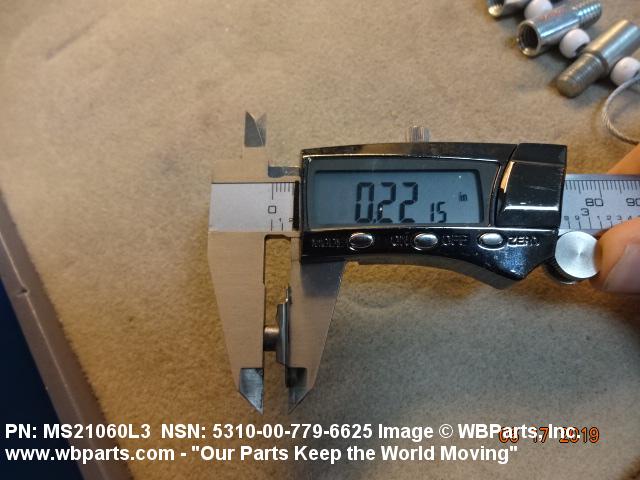

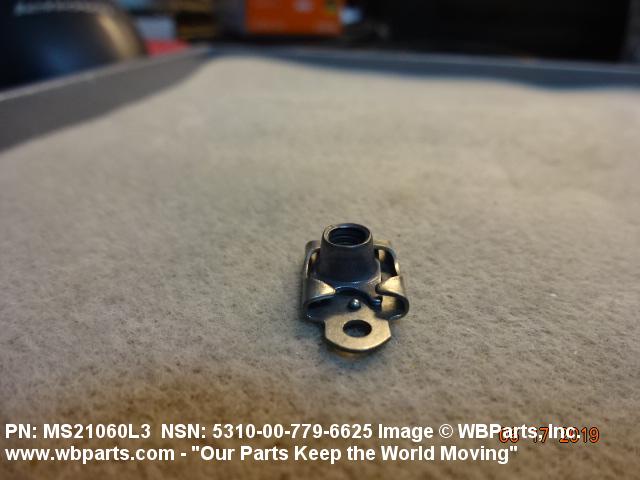

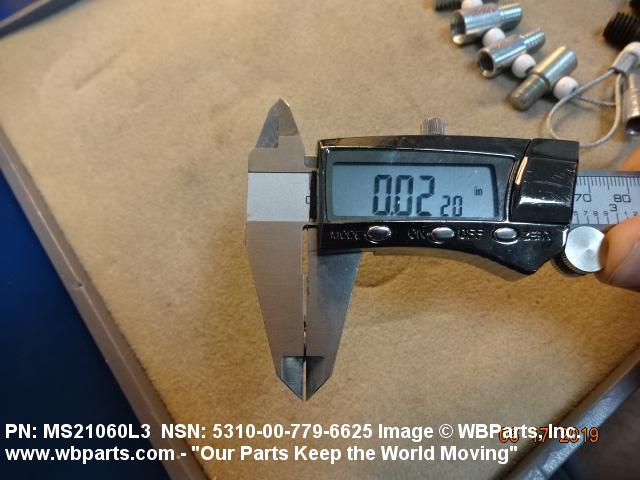

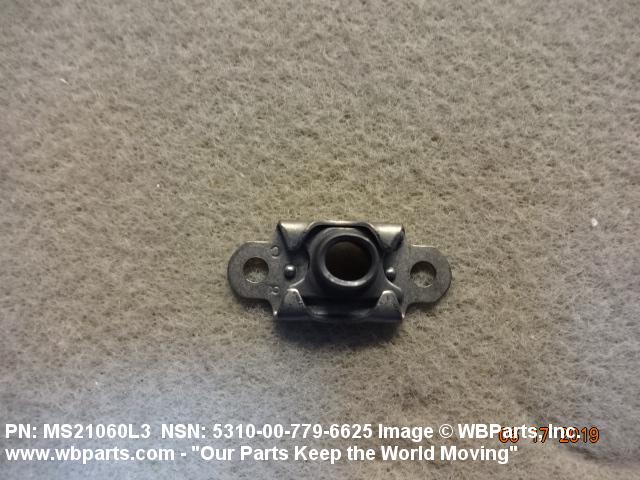

Drawings & Photos | NSN 5310-00-779-6625

Part Number	Request Date	QTY	Origin
MS21060L3	2024-10-298	10	United States
MS21060L3	2024-10-298	20	United States
MS21060L3	2024-10-298	30	United States
MS21060L3	2024-10-298	10	United States
MS21060L3	2024-10-298	20	United States
MS21060L3	2024-10-298	30	United States
MS21060L3	2024-06-175	400	AE
5310-00-779-6625	2024-02-38	12700	TW
MS21060L3	2023-12-339	12725	TW
MS21060L3	2023-12-339	12725	TW
MS21060L3	2023-10-276	10	US
MS21060L3	2023-08-237	50	South Africa
5310-00-779-6625	2023-08-215	1	US
MS21060L3	2023-08-214	60	US
MS21060L3	2023-01-18	200	United States
MS21060L3	2022-10-276	159324	TR
MS21060L3	2022-04-106	85	Taiwan
MS21060L3	2022-01-28	20000	United States
MS21060L3	2021-11-320	43	Canada
5310-00-779-6625	2021-08-220	10	MY
MS21060L3	2021-03-88	120	United States
MS21060L3	2021-02-43	9600	US
5310-00-779-6625	2020-07-206	60	US
5310-00-779-6625	2020-05-142	15640	DIBBS
5310-00-779-6625	2020-04-114	26730	TW
MS21060L3	2020-01-06	50	United States
MS21060L3	2019-06-162	100	US
5310-00-779-6625	2018-02-44	16378	United States
MS21060L3	2018-01-12	12000	Turkey
5310-00-779-6625	2017-11-306	16378	DIBBS
MS21060L3	2017-07-187	180	United States
MS21060L3	2017-04-114	7600	US
5310-00-779-6625	2017-04-114	7600	US
MS21060L3	2017-04-94	1	United States
MS21060L3	2016-12-348	30	US
MS21060L3	2016-05-126	110	India
MS21060L3	2016-04-98	500	ES
MS21060L3	2016-04-95	250	United States
MS21060L3	2015-12-341	90	Spain
MS21060L3	2015-08-223	12000	us
MS21060L3	2015-05-146	2750	Turkey
MS21060L3	2015-05-126	120	Spain
MS21060L3	2015-03-63	1	us
MS21060L3	2015-02-54	100	US
MS21060L3	2015-02-43	2750	Turkey
MS21060L3	2014-11-321	1	us
MS21060L3	2014-10-289	12	United States
MS21060L3	2014-08-218	22	United States
MS21060L3	2014-04-97	100	UK
MS21060L3	2013-12-345	250	US
5310-00-779-6625	2013-11-325	1	DIBBS-RFPs
MS21060L3	2013-11-323	148	Israel
MS21060L3	2013-11-315	9864	Israel
MS21060L3	2013-10-304	96	United States
MS21060L3	2013-10-302	18	United States
MS21060L3	2013-10-302	200	Spain
5310-00-779-6625	2013-10-291	1	DIBBS-RFPs
MS21060L3	2013-10-276	20	US
MS21060L3	2013-09-259	250	US
5310-00-779-6625	2013-09-246	1	DIBBS-RFPs
MS21060L3	2013-08-239	100	TR
5310-00-779-6625	2013-07-192	80	US
MS21060L3	2013-05-134	50	CZ
5310-00-779-6625	2012-11-310	21230	DIBBS
MS21060L3	2012-08-235	1000	United States
MS21060L3	2012-04-101	300	United States
MS21060L3	2012-04-96	10	us
MS21060L3	2012-02-52	254	SG
MS21060L3	2012-02-46	100	United States
MS21060L3	2012-02-40	10	TR
MS21060L3	2011-10-278	4	US
MS21060L3	2011-08-220	100	Malaysia
MS21060L3	2011-07-188	288	United States
MS21060L3	2011-06-180	25	United States
MS21060L3	2011-03-87	40	US
MS21060L3	2010-11-319	52	United States
5310-00-779-6625	2010-09-259	35	RO
5310-00-779-6625	2010-08-232	4	US
5310-00-779-6625	2009-12-335	50	US
MS21060L3	2009-07-197	400	United States
F50013	2009-06-177	7	US
MS21060L3	2009-05-146	300	US
5310-00-779-6625	2009-03-82	12	US
MS21060L3	2009-01-05	500	China
5310-00-779-6625	2008-12-347	200	United States
5310-00-779-6625	2008-11-311	1	Colombia
5310-00-779-6625	2008-08-228	80	US
5310-00-779-6625	2008-06-170	175	United States
5310-00-779-6625	2008-05-140	2600	Taiwan
5310-00-779-6625	2008-05-129	2300	Taiwan
MS21060L3	2008-04-115	5000	Taiwan
5310-00-779-6625	2008-03-87	5000	US
MS21060L3	2008-03-74	500	United States
5310-00-779-6625	2008-03-72	384	US
5310-00-779-6625	2008-02-60	10000	US
MS21060L3	2008-02-60	1000	us
MS21060L3	2008-02-52	30	United States
MS21060L3	2008-02-42	150	US
5310-00-779-6625	2007-12-353	5000	us
MS21060L3	2007-11-318	6000	RO
5310-00-779-6625	2007-11-310	6000	Taiwan
MS21060L3	2007-10-302	4	Canada
5310-00-779-6625	2007-10-283	700	FX
5310-00-779-6625	2007-09-248	6000	Taiwan
5310-00-779-6625	2007-08-236	8000	Taiwan
5310-00-779-6625	2007-08-231	4864	Taiwan
5310-00-779-6625	2007-08-229	12000	Taiwan
5310-00-779-6625	2007-02-59	5	US
NAS686C3M	2007-01-09	300	us
NAS686C3M	2007-01-08	2000	US

Cross Reference | NSN 5310-00-779-6625

Part Number	Cage Code	Manufacturer
13705E-02	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
13705E-02	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
F5001-3	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS21060L3	51792	COLUMBIA NUT & BOLT LLC
MS21060L3	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21060L3	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21060L3	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NAS686C3M	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
RF200C3M	52828	REPUBLIC FASTENER MFG. CORP.
RMLHTA521-2860-02	72962	HARVARD INDUSTRIES INC
T65C1032CM	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
T65C1032CM	71087	REPUBLIC FASTENER MFG. CORP. Use CAGE Code 52828 for Cataloging.
Z00.N5425389225	F0086	SOCATA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-779-6625

Compare

Related Products | NSN 5310-00-779-6625

5310-00-779-6633, 5310-00-779-6636, 5310-00-779-6651, 5310-00-779-6689, 5310-00-779-6735

Technical Data | NSN 5310-00-779-6625

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	IRON ALLOY 660 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5735 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
HARDNESS RATING	49.0 ROCKWELL C MAXIMUM
NUT STYLE	A116 PLATE

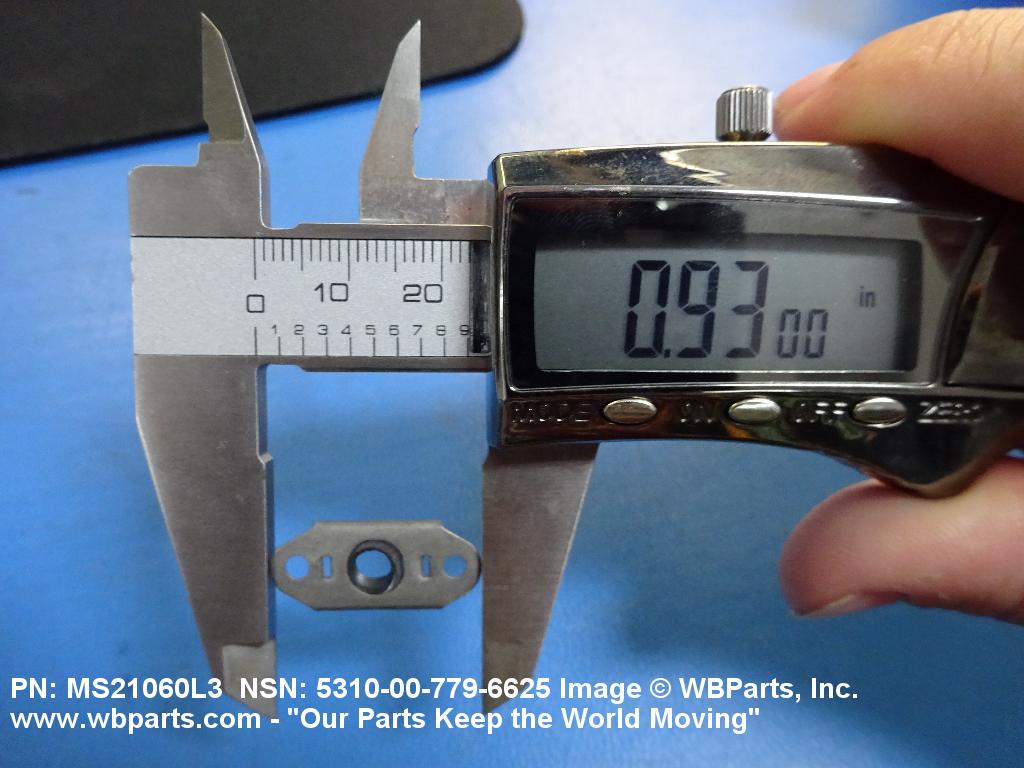

NUT LENGTH	0.948 INCHES MAXIMUM
NUT HEIGHT	0.250 INCHES MAXIMUM
PLATE THICKNESS	0.032 INCHES MAXIMUM

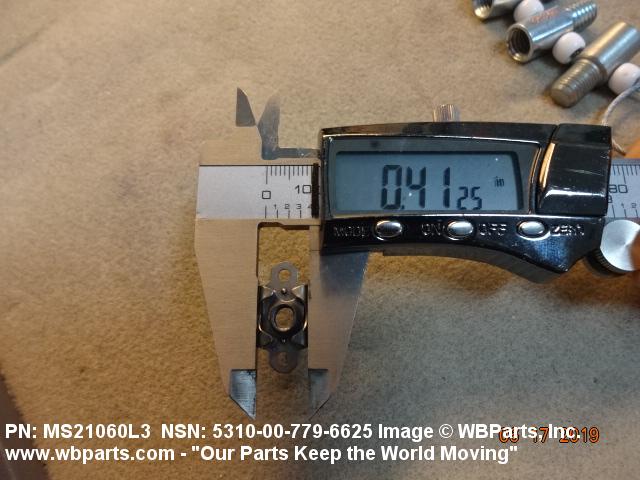

PLATE WIDTH	0.290 INCHES MINIMUM AND 0.416 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION	DRY FILM LUBRICANT
NUT MOUNTING PROVISION	STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE	F38 2 HOLES

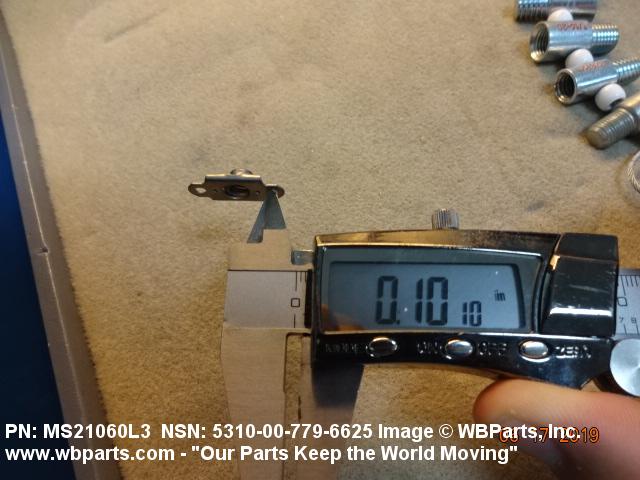

MOUNTING HOLE DIAMETER	0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM
DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER	0.339 INCHES MINIMUM AND 0.349 INCHES MAXIMUM

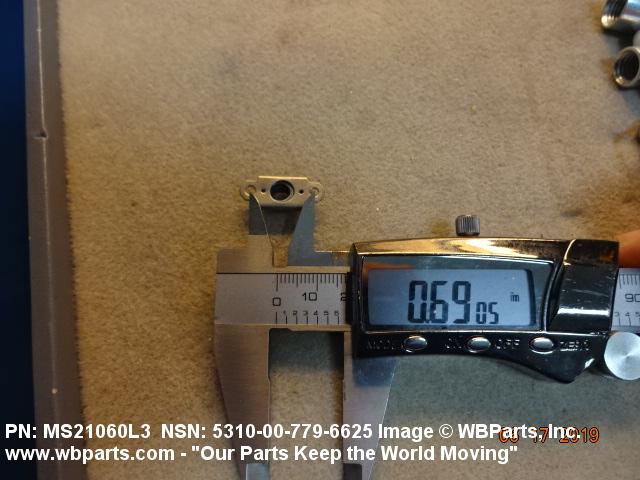

CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH	0.686 INCHES MINIMUM AND 0.690 INCHES MAXIMUM
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL
FEATURES PROVIDED	FLOATING NUT
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS21060-L3

Restrictions/Controls & Freight Information | NSN 5310-00-779-6625

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-779-6625

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BX	OH-58D Army Helicopter Improvement Program (AHIP)
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
