NSN 4730-00-595-3102 MS200196J, MS20019-6J, MS208196D
Product Details | TUBE FITTING FLARED SLEEVE
4730-00-595-3102 A flanged cylindrical metallic item designed to be used on tubing to back up the flared end and to provide a bearing surface for the coupling nut, thereby reducing wear on the tubing flare. The inside diameter of the flanged end is countersunk to form a seat for the flare when assembled to a mating fitting.
Part Alternates: MS200196J, MS20019-6J, MS208196D, MS20819-6D, MS208196J, MS20819-6J, AN8196, AN819-6, AN8196C, AN819-6C, AN8196D, AN819-6D, AN8196J, AN819-6J, AN8196K, AN819-6K, AS4841, AS5176J06, MILF5509, MIL-F-5509, 10108427 , 47936, 4793-6 , 66451990105, 664-519-90105, 4730-00-595-3102, 00-595-3102, 4730002780682, 4730005953102 , 005953102
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-595-3102 | 18027 ( SLEEVE, FLARED, TUBE FITTING ) |

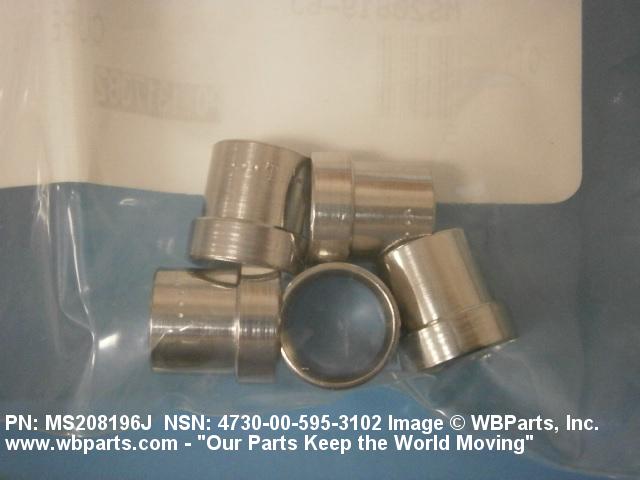

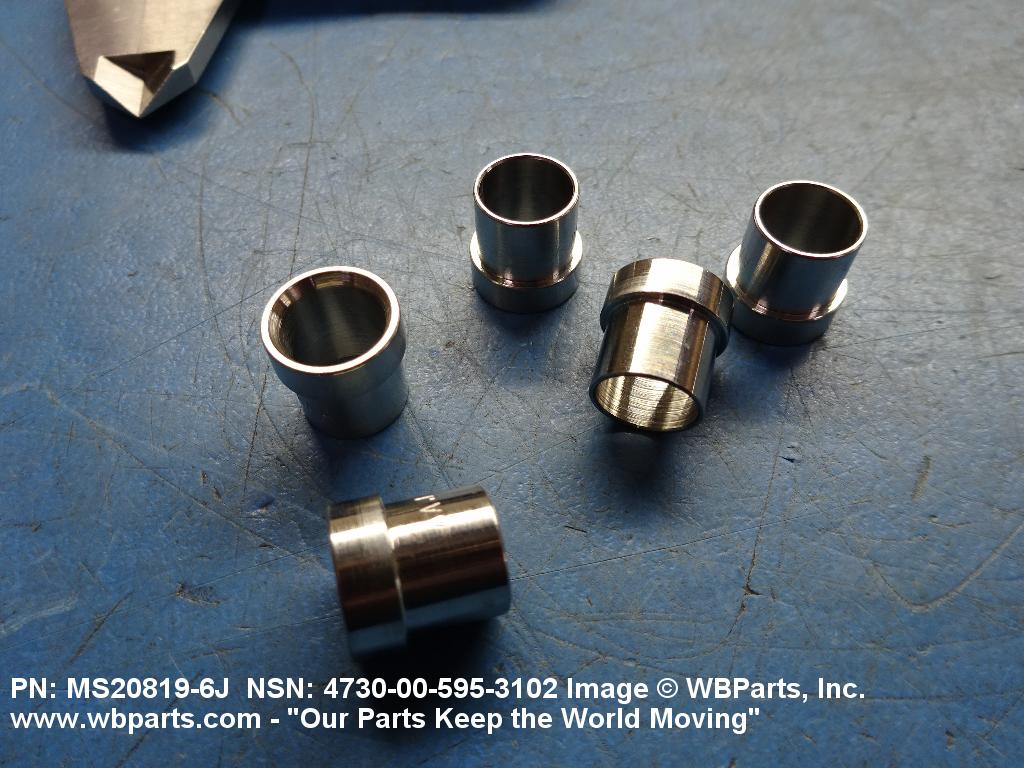

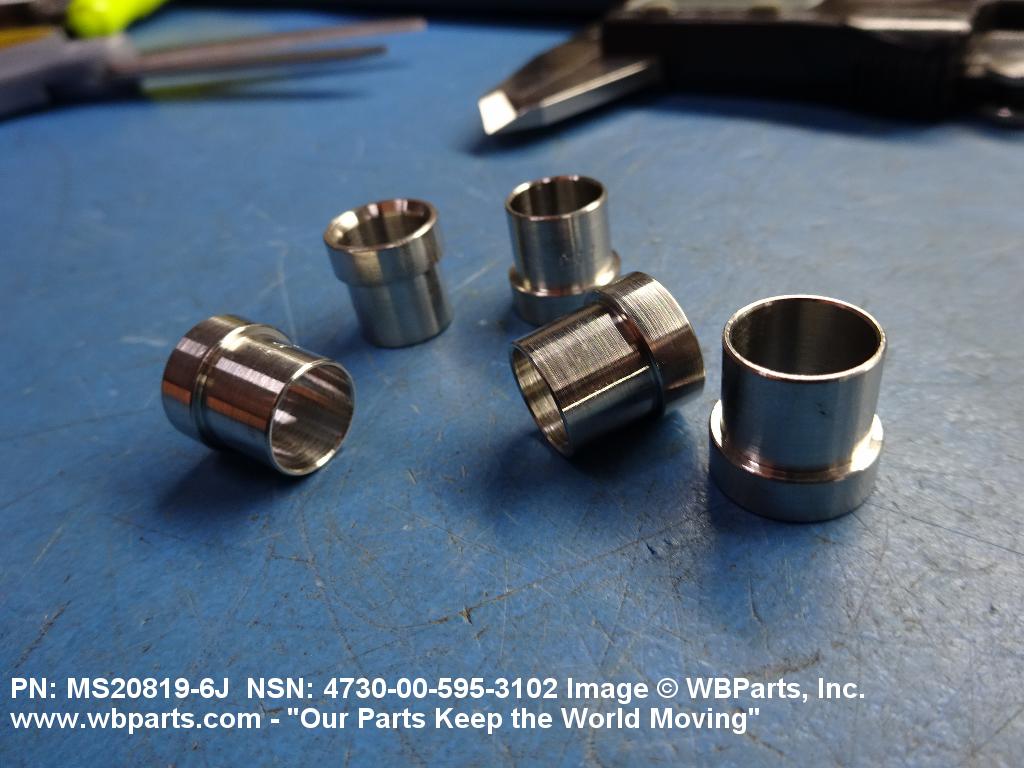

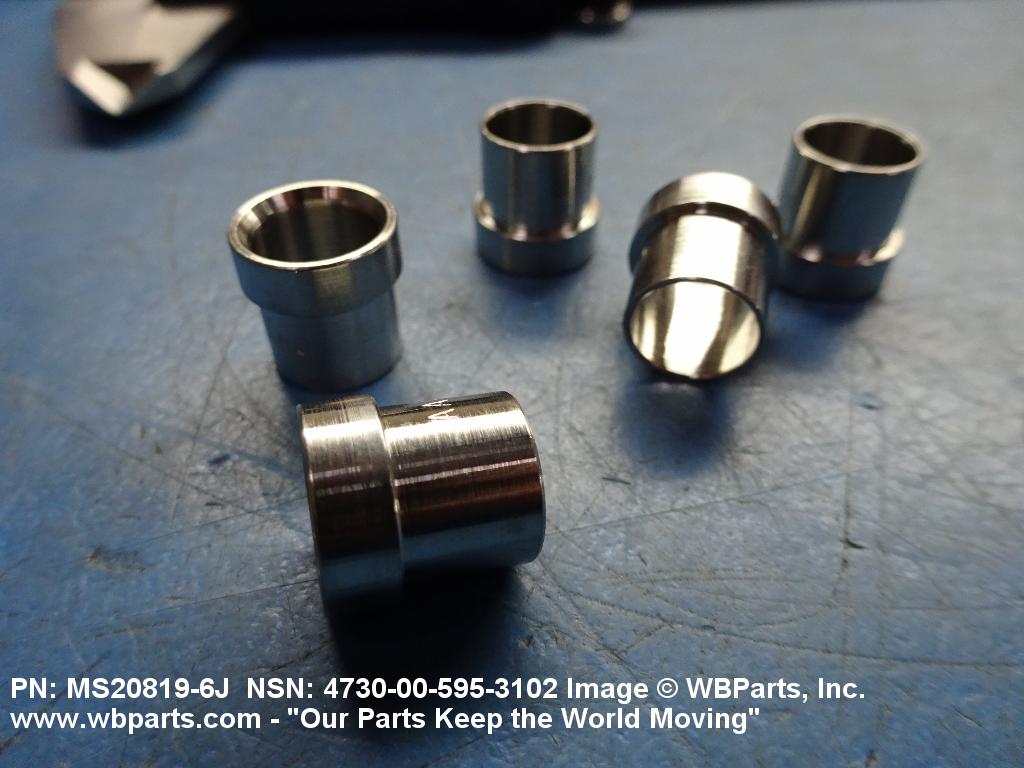

Drawings & Photos | NSN 4730-00-595-3102
Demand History | NSN 4730-00-595-3102
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS208196J | 2025-01-28 | 40 | United States |
| MS208196D | 2024-07-200 | 40 | AE |
| AN8196J | 2024-06-180 | 50 | United States |
| AN8196J | 2024-06-159 | 50 | United States |
| AS5176J06 | 2023-06-180 | 10 | United States |
| AN8196J | 2023-06-180 | 1 | United States |
| MS208196D | 2023-05-136 | 200 | United States |
| AN8196D | 2023-04-96 | 100 | Singapore |
| MS208196J | 2023-03-72 | 5 | United States |
| AN8196D | 2023-02-46 | 50 | South Africa |
| AS5176J06 | 2022-10-290 | 30 | United States |
| AS5176J06 | 2022-10-290 | 155 | United States |
| MS208196J | 2022-06-173 | 40 | United States |
| MS208196J | 2022-04-116 | 73 | United States |
| MS208196D | 2021-04-95 | 6 | United States |
| MS208196J | 2020-06-163 | 30 | United States |
| MS208196D | 2020-03-69 | 254 | US |
| MS208196J | 2019-12-351 | 30 | Canada |
| MS208196J | 2019-11-330 | 200 | United States |
| 4730-00-595-3102 | 2019-09-260 | 4 | us |
| MS208196J | 2019-07-200 | 20 | Turkey |
| 4730-00-595-3102 | 2019-07-199 | 9300 | DIBBS |
| AN8196C | 2019-05-150 | 52 | United States |
| AN8196D | 2018-11-323 | 10 | United States |
| AN8196D | 2018-10-283 | 24 | United States |
| MILF5509 | 2018-07-201 | 6 | United States |
| AN8196 | 2018-06-176 | 6 | US |
| 4730-00-595-3102 | 2018-05-135 | 16960 | DIBBS |
| AN8196D | 2018-02-33 | 1 | United States |
| 4730-00-595-3102 | 2017-12-352 | 12 | us |
| MS208196D | 2017-11-307 | 10 | TH |
| MS208196D | 2017-03-81 | 30 | Brazil |
| 4730-00-595-3102 | 2017-03-61 | 18321 | DIBBS |
| MS208196D | 2016-10-301 | 2 | us |
| MS208196D | 2016-06-154 | 60 | United States |
| AN8196C | 2016-03-61 | 40 | Thailand |
| AN8196D | 2016-03-61 | 40 | Thailand |
| MS208196J | 2015-11-314 | 2 | United States |
| AN8196D | 2015-09-259 | 200 | United States |
| AS5176J06 | 2015-08-229 | 10 | US |
| 4730-00-595-3102 | 2015-08-217 | 13248 | DIBBS |
| AS5176J06 | 2015-02-49 | 20 | United States |
| MS208196J | 2014-11-324 | 2 | US |
| 4730-00-595-3102 | 2014-08-216 | 19468 | DIBBS |
| MS208196J | 2014-07-199 | 80 | US |
| MS208196J | 2014-06-176 | 1 | US |
| MS208196J | 2014-04-111 | 1 | CN |
| MS20819-6J | 2014-01-29 | 50 | United States |
| 4730-00-595-3102 | 2013-12-351 | 12614 | DIBBS |
| MS208196J | 2013-05-141 | 200 | France |
| AS5176J06 | 2013-03-67 | 20000 | United States |
| AS5176J06 | 2013-01-29 | 50 | United States |
| MS208196J | 2012-12-342 | 20 | Canada |
| 4730-00-595-3102 | 2012-08-222 | 5195 | DIBBS |
| MS208196J | 2012-06-166 | 100 | France |
| AS5176J06 | 2012-06-160 | 105 | IN |
| MS208196D | 2012-03-73 | 120 | US |
| 4730-00-595-3102 | 2012-02-55 | 4839 | DIBBS |
| MS208196J | 2011-12-347 | 30 | United Kingdom |
| AN8196D | 2011-12-339 | 30 | United Kingdom |
| MS208196J | 2011-12-339 | 30 | United Kingdom |
| 4730-00-595-3102 | 2011-10-301 | 4263 | DIBBS |
| AN8196C | 2011-10-291 | 8 | United States |
| AS5176J06 | 2011-05-124 | 2 | US |
| AS4841 | 2011-03-69 | 8 | |
| 4730-00-595-3102 | 2011-02-55 | 4578 | DIBBS |
| AN8196 | 2010-12-350 | 110 | United States |
| MS208196D | 2010-11-333 | 100 | United States |
| AN8196K | 2010-10-298 | 10 | US |
| MS208196D | 2010-06-176 | 1 | Italy |
| MS208196J | 2010-06-176 | 1 | Italy |
| 4730-00-595-3102 | 2009-11-306 | 4422 | DIBBS |
| MILF5509 | 2009-10-301 | 1 | PK |
| AS5176J06 | 2009-10-293 | 2 | United States |
| MS208196D | 2009-08-243 | 50 | Italy |
| 4730-00-595-3102 | 2009-06-166 | 3 | us |
| 4730-00-595-3102 | 2009-06-162 | 5801 | DIBBS |
| MS208196J | 2009-04-93 | 100 | Turkey |
| MS208196J | 2009-04-93 | 100 | Turkey |
| MS208196J | 2009-04-93 | 100 | Turkey |
| MS208196J | 2009-03-89 | 50 | United States |
| MS208196J | 2009-03-89 | 100 | United States |
| MS208196J | 2009-03-89 | 200 | United States |
| MS208196J | 2009-03-89 | 400 | United States |
| MILF5509 | 2009-02-55 | 100 | US |
| 4730-00-595-3102 | 2009-01-06 | 3712 | DIBBS |
| MS208196J | 2008-07-205 | 1746 | US |
| MS208196J | 2008-07-200 | 600 | United States |
| 4730-00-595-3102 | 2007-12-339 | 75 | United States |
| 4730-00-595-3102 | 2007-11-324 | 75 | Iraq |
Cross Reference | NSN 4730-00-595-3102
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4730002780682 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 4730005953102 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 4793-6 | H2987 | SUN TEST SYSTEMS B.V. DBA SUN ELECTRIC SYSTEMS |
| 664-519-90105 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| AN819-6 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN819-6C | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN819-6D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN819-6J | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN819-6K | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS4841 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5176J06 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5176J06 | 8N202 | TRI-FITTING MFG COMPANY DBA TRI-FITTING MFG |
| MIL-F-5509 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS20019-6J | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS20819-6D | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS20819-6J | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-595-3102
Related Products | NSN 4730-00-595-3102
Technical Data | NSN 4730-00-595-3102
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, QQ-S-763, CLASS 304 |
| SURFACE TREATMENT | PASSIVATED |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |

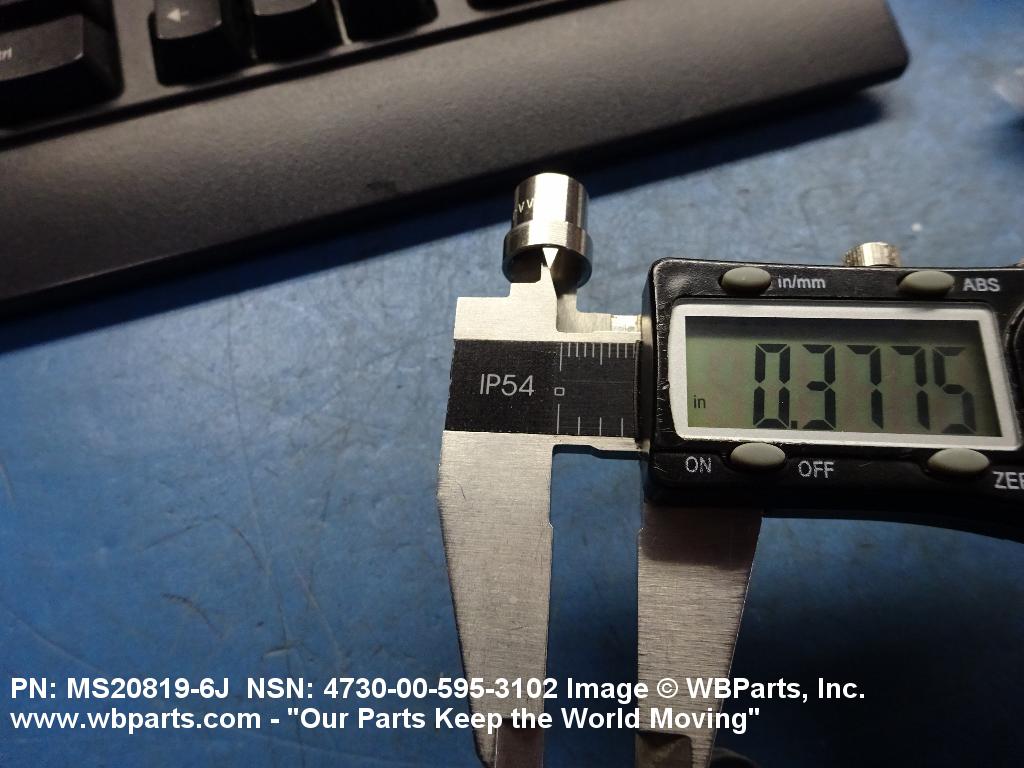

| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.375 INCHES NOMINAL |
| STYLE DESIGNATOR | M1 SLEEVE |

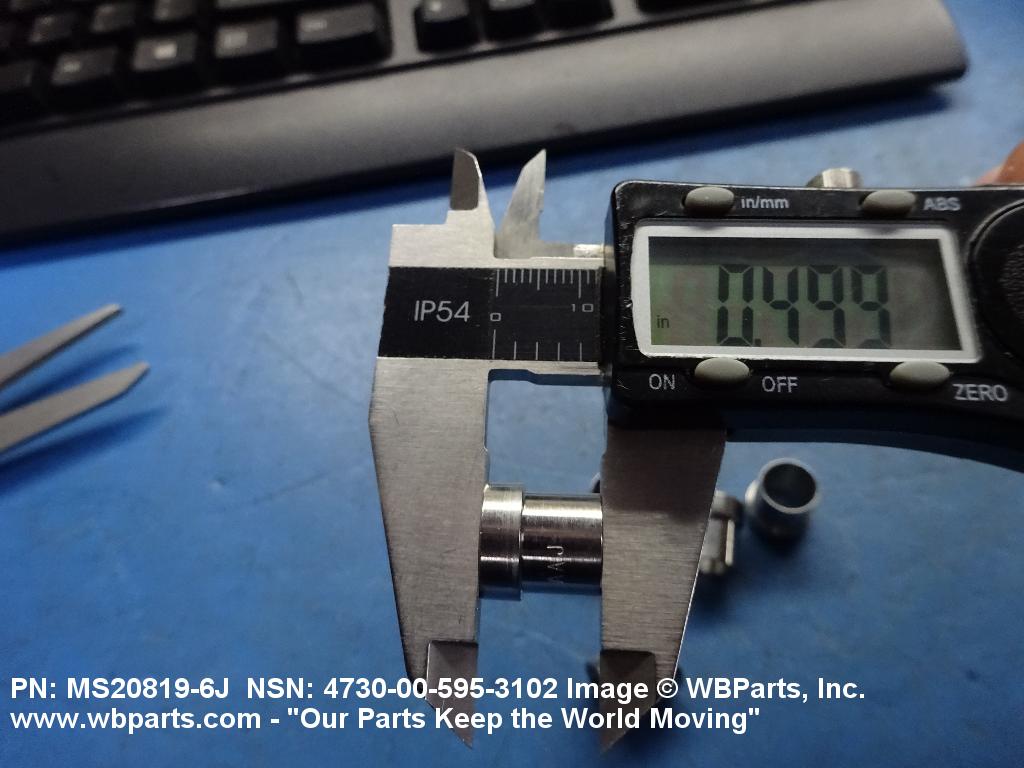

| OVERALL LENGTH | 0.500 INCHES NOMINAL |

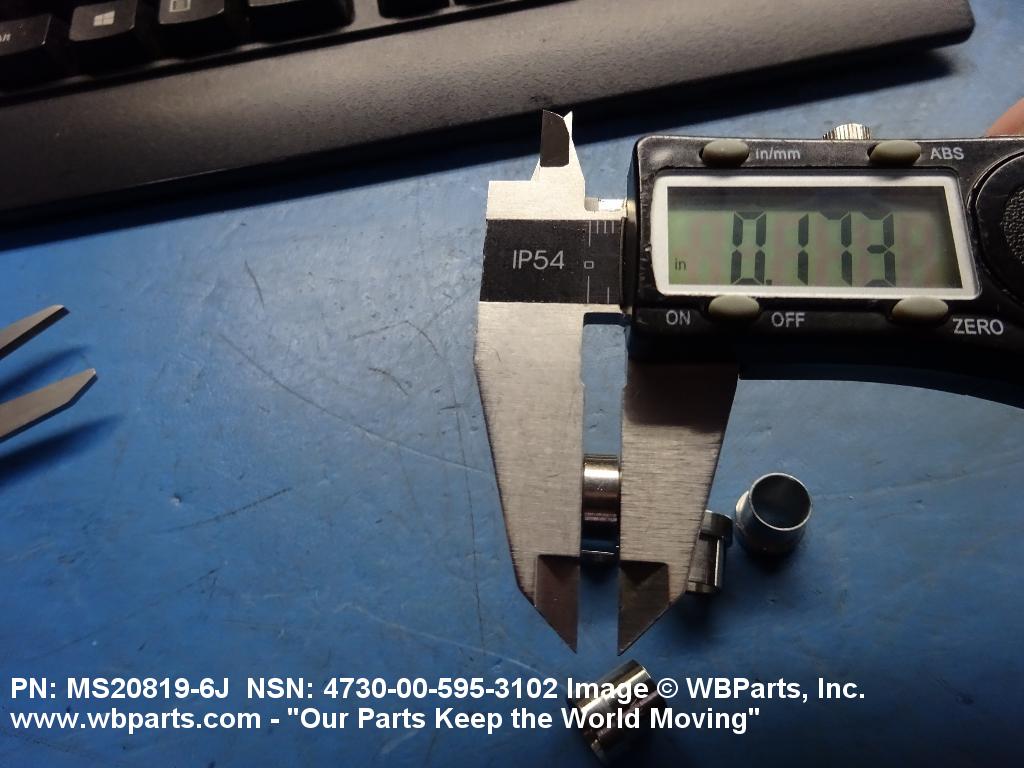

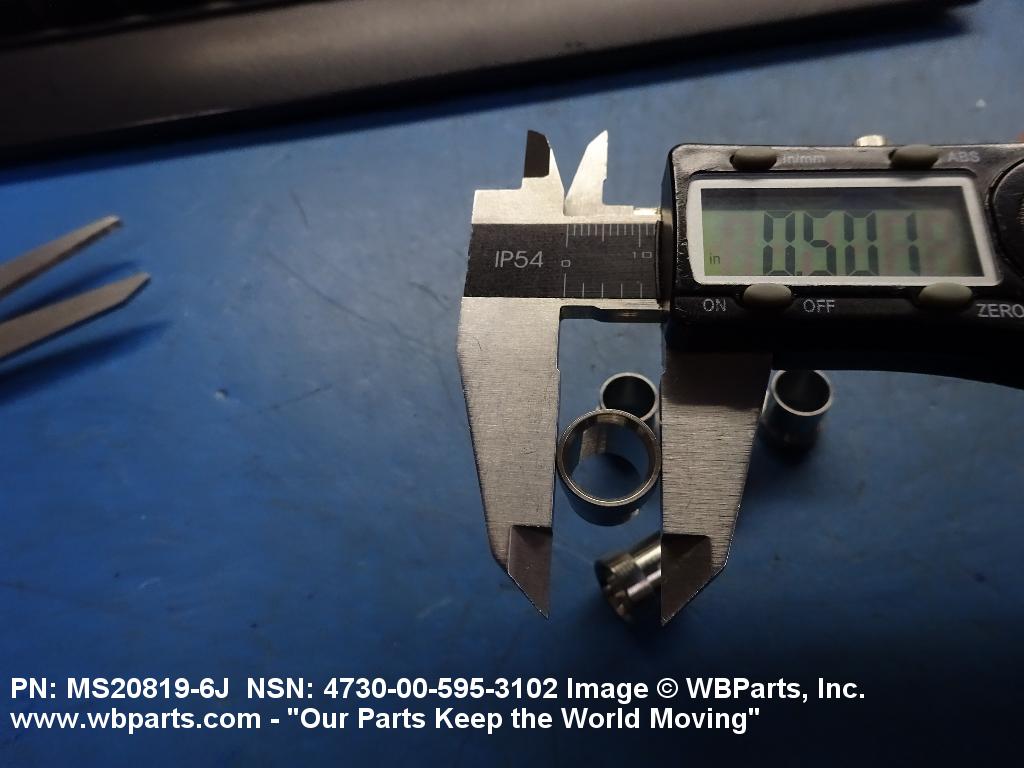

| FLANGE WIDTH | 0.172 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 0.502 INCHES NOMINAL |
| SEAT ANGLE IN DEG | 33.0 |

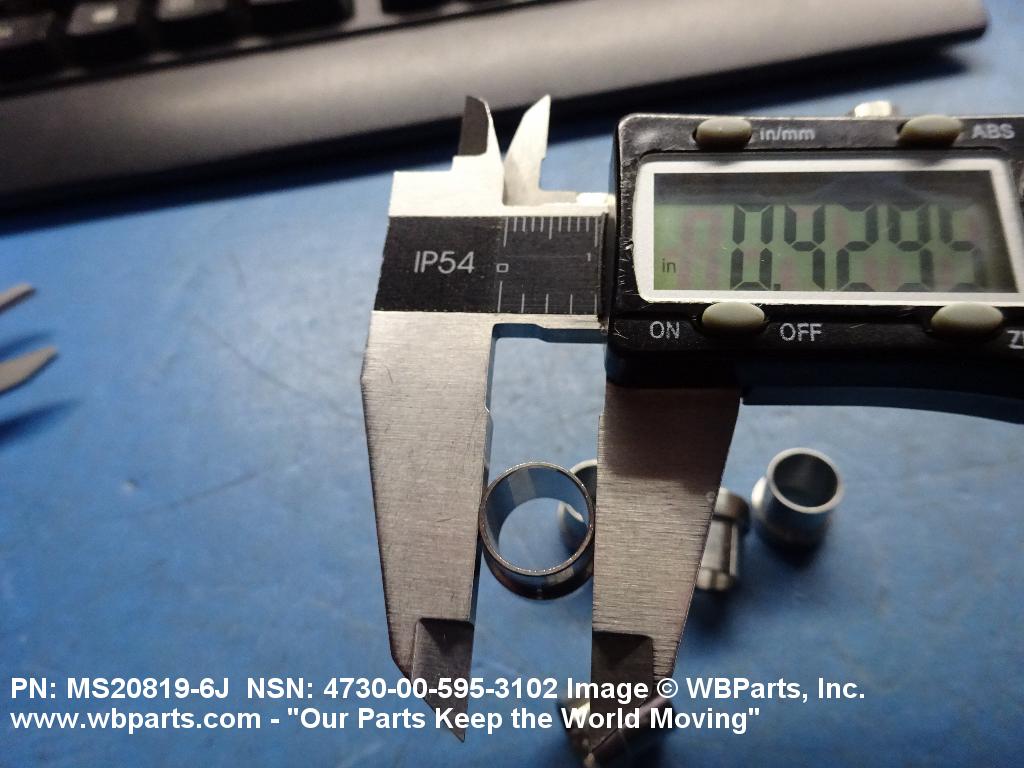

| SLEEVE OUTSIDE DIAMETER | 0.432 INCHES NOMINAL |
